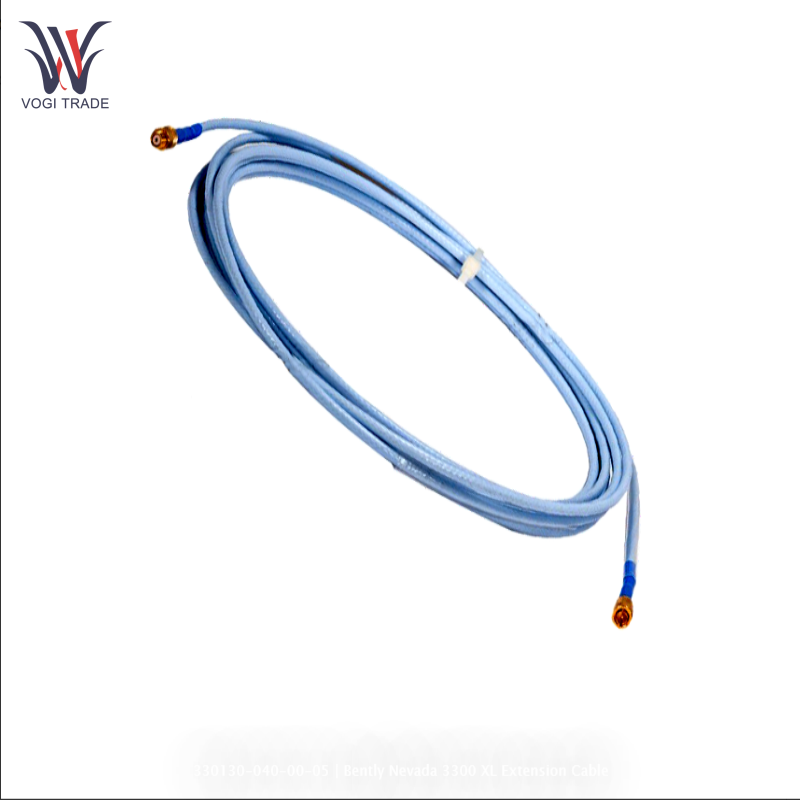

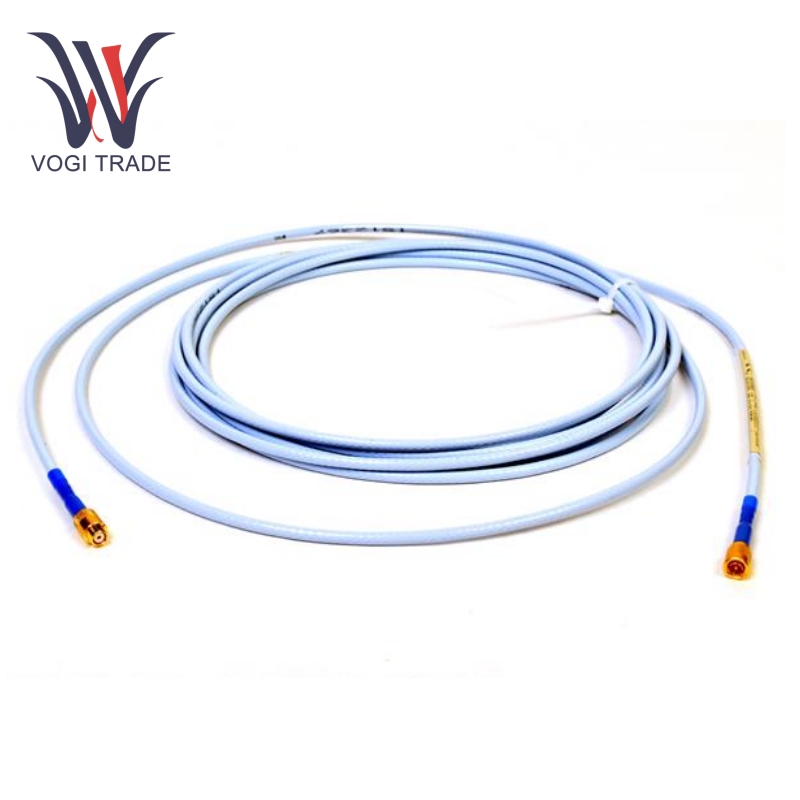

Bently Nevada 330130-040-00-05

330130-AAA-BB-CC

330130-040-00-05

330101: 300 XL Standard Extension Cable

040(Cable Length): 4.0 meters (11.5 feet).

00(Connector Protector and Cable)：Standard cable.

05(Agency Approval)：CSA, ATEX, IECEx  Approvals.

Technical Parameters

Standard configuration: 4 meters (040 in the model indicates the length is in meters).

Connector type: Adopts ClickLoc™ self-locking connector, which can be installed without tools and has a corrosion-resistant gold-plated copper connector design.

Standard configuration: non-armored cable, wire diameter is about 3-5mm.

Optional version: armored cable (enhanced resistance to mechanical damage) or FluidLoc™ cable (anti-oil/gas leakage).

Resistance value: The DC resistance of the 4-meter extension cable is about 1Ω (in line with industrial standards).

Compatibility: Only supports use with 3300XL series probes and preamplifiers. Mixing non-XL components may affect performance.

Product Features

High reliability: Meets API 670 standards and is suitable for vibration monitoring of key equipment such as turbines and compressors. Strong anti-radio interference (RFI/EMI) capability, CE certification can be passed without shielded conduit.

Flexible configuration:Bently Nevada 330130-040-00-05 Supports DIN rail installation and traditional panel installation, compatible with non-XL series components.

Probes and extension cables are interchangeable and do not require separate calibration.

Easy to maintain: SpringLoc™ terminal design prevents loose connections.

Connector protectors provide long-term sealing (such as silicone tape) to adapt to harsh industrial environments.

Expandability: Can be seamlessly integrated with components such as speed modules and key phase monitoring to support diversified monitoring functions.
