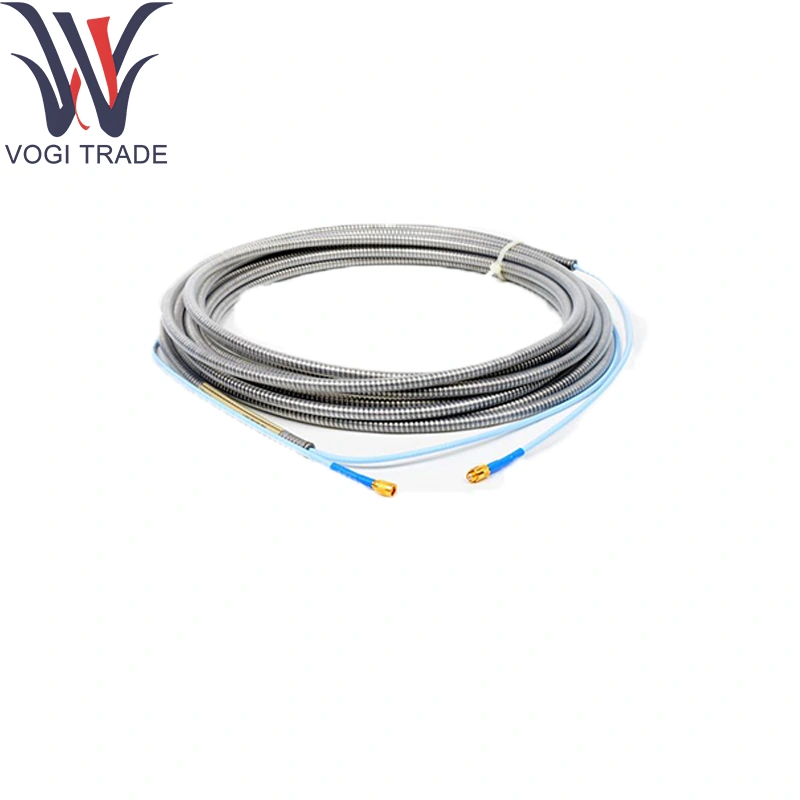

Brand: Bently Nevada Description: 330130-040-01-05 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330130-040-01-05 Provides a short, low-noise link from a proximity probe to its conditioning module when the probe mount is close to the I/O rack or junction box.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-040-01-05 |
|
Ordering Number |
330130-040-01-05 |
|
Catalog |
3300XL |
|
Description |
Standard Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*16 (CM) |
|
Weight |
0.5 kg |
Ordering Information
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
Technical Parameters
Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 330130-040-01-05
Capacitance: ≤ 100 pF/m between conductors
Conductor: 26 AWG, 7 × 36 tinned-copper strands percore in Bently Nevada 330130-040-01-05
Voltage Rating: 300 VAC (insulation)
Temperature Rating: –20 °C to +80 °C (PVC jacket)
Environmental: RoHS-compliant; optional UV-resistant jacket variant available
Product function
Maintains the high-fidelity AC signal via Bently Nevada 330130-040-01-05 from the proximity probe to the Proximitor® or monitor card with minimal attenuation and noise. The impedance-matched design and robust shielding ensure accurate shaft-position measurements over short runs.
Application Areas
Cabinet-Internal Wiring: Short harnesses with Bently Nevada 330130-040-01-05 inside control-panel interiors and skid enclosures
OEM Skid Packages: Factory-installed probe-to-panel cables using Bently Nevada 330130-040-01-05 in compact assemblies
Retrofit Installations: Bridging probes to relocated or newly added monitor racks via Bently Nevada 330130-040-01-05
Test & Calibration Benches: Quick-disconnect link for on-bench probe testing
