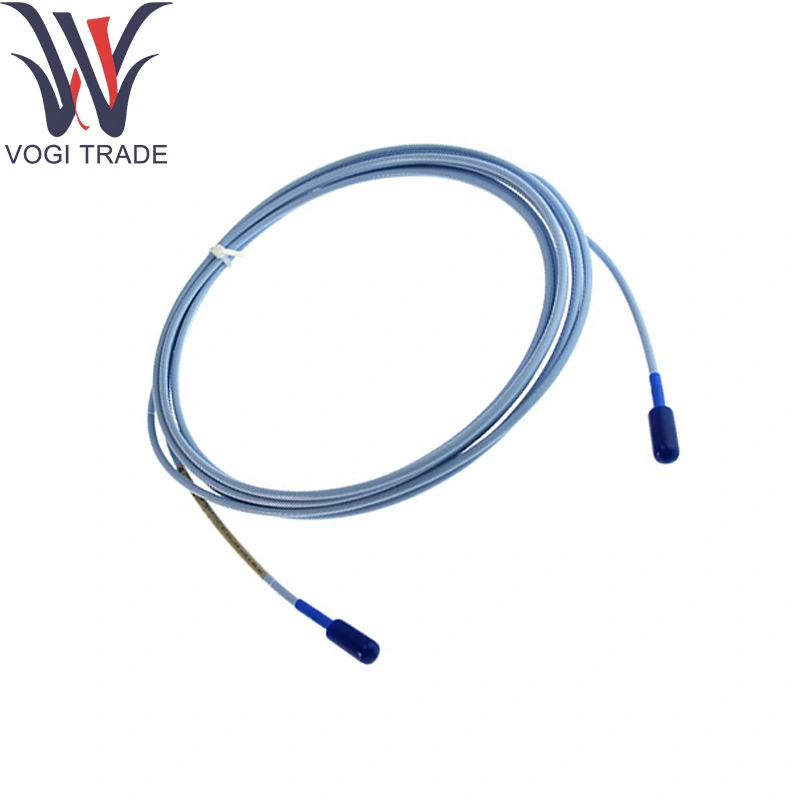

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330130-040-02-00 Provides a short, low-noise link between a proximity probe and its conditioning or monitor module when the probe is mounted close to the I/O rack but requires a high-temperature rated cable (PTFE) instead of standard PVC.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-040-02-00 |
|
Ordering Number |
330130-040-02-00 |
|
Catalog |
3300 XL |
|
Description |
Standard Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
4 M |
|
Weight |
0.5 kg |
Ordering Information
3300 XL Standard Extension Cable
330130-AAA-BB-CC
Make sure that the extension cable length and the probe length, when added together, equal the Proximitor Sensor total length.
A: Cable Length Option
030 3.0 meters (9.8 feet)
035 3.5 meters (13.1 feet)
040 4.0 meters (11.5 feet)
045 4.5 meters (14.8 feet)
060 6.0 meters (19.7 feet)
070 7.0 meters (22.9 feet)
075 7.5 meters (24.6 feet)
080 8.0 meters (26.2 feet)
085 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option
00 Standard cable
01 Armored cable
02 Standard cable with connector protector
03 Armored cable with connector protector
10 FluidLoc cable
11 Armored FluidLoc cable
12 FluidLoc cable with connector protector
13 Armored FluidLoc cable with connector protector
C: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Technical Parameters
Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 330130-040-02-00
Capacitance: ≤ 100 pF/m between conductors
Conductor: 26 AWG, 7 × 36 tinned-copper strands per core
Voltage Rating: 300 VAC insulation
Temperature Rating: –55 °C to +200 °C (PTFE jacket) on Bently Nevada 330130-040-02-00
Environmental Compliance: RoHS-compliant; UL-recognized cable
Product function
Bently Nevada 330130-040-02-00 maintains high-fidelity AC signals from proximity probes to Proximitor® modules with minimal attenuation. The impedance-matched design and robust shielding in Bently Nevada 330130-040-02-00 ensure accurate shaft-position measurements in high-temperature environments.
Application Areas
High-Temperature Control Cabinets: Probe wiring near heat sources using Bently Nevada 330130-040-02-00
Hot Environment Junction Boxes: Extending probe connections in PTFE-rated enclosures
OEM Skid Packages: Internal harnesses in machinery featuring Bently Nevada 330130-040-02-00
Laboratory & Test Rigs: Short-run cabling for bench testing under heated conditions
Retrofit Installations: Replacing PVC cables with PTFE variants like Bently Nevada 330130-040-02-00
