Bently Nevada 330130-045-00-CN

Brand: Bently Nevada
Description: Extension Cable
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 10
Payment Term: T/T
Shipping Port: Shenzhen

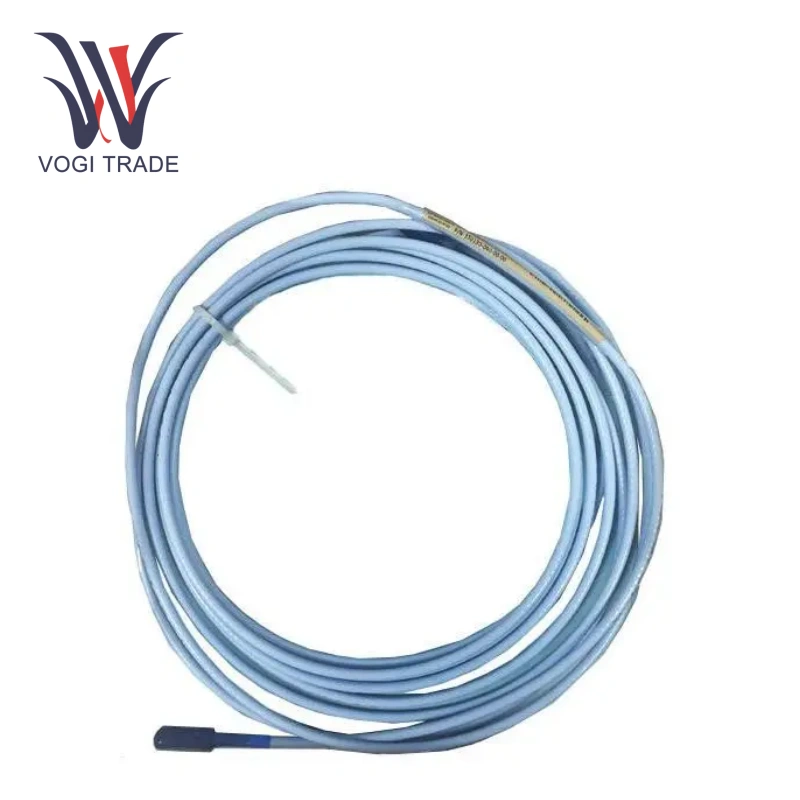

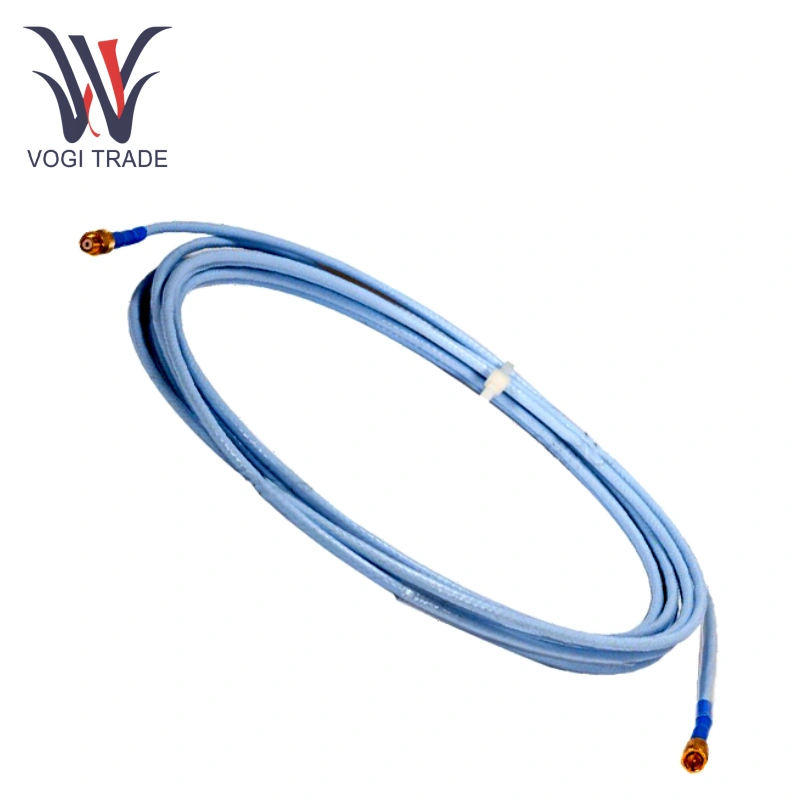

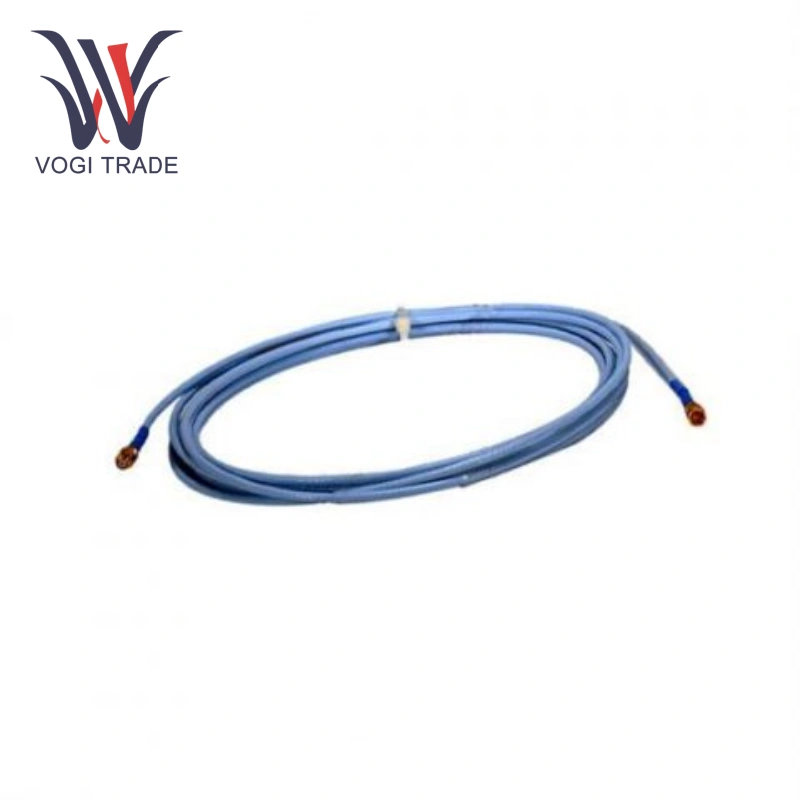

The Bently Nevada 330130-045-00-CN extension cable is a standard extension cable for the Bently Nevada 3300 XL Series. It connects the probe to the proximitor amplifier, extending the signal transmission distance of the monitoring system. It uses low-loss coaxial cable with Click Loc gold-plated copper connectors for a convenient and secure connection.

Send Inquiry

Product Description

Manufacture	Bently Nevada
Model Number	330130-045-00-CN
Ordering Number	330130-045-00-CN
Catalog	3300 XL
Country Of Origin	America
HS CODE	8537101190
Dimension	18188CM
Packing Dimension	212110CM
Weight	0.8kg

Performance Parameters

Product Type: 3300 XL Standard Extension Cable

Cable Length: 4.5 m (14.8 ft)

Cable Type: Low-Loss Coaxial Cable

Connector Type: Click Loc Gold-Plated Copper Connector

DC Resistance: ≤15 Ω/km (at 20°C)

Capacitance: ≤0.056 μF/km

Frequency Response: 0 - 10 kHz

Shield Ground Resistance: ≤0.1 Ω

Operating Temperature: -52°C to +260°C (Viton Cable Option)

Ingress Protection: IP67 (Connector)

Product Advantages

Bently Nevada 330130-045-00-CN with low-resistance center conductor and shielded design effectively reduce signal loss and interference.

Bently Nevada 330130-045-00-CN used patented CableLoc design increases tensile strength to prevent accidental cable disconnection, while the gold-plated ClickLoc connector is corrosion- and oxidation-resistant.

Bently Nevada 330130-045-00-CN have standard and extended temperature ranges accommodate a wide range of industrial environments, from low to high temperatures, and the tight minimum bend radius facilitates installation in complex spaces.

Application

Bently Nevada 330130-045-00-CN used in vibration monitoring systems for equipment like steam turbines and generators, this device is used to extend the sensor signal transmission distance.

Bently Nevada 330130-045-00-CN is suitable for condition monitoring of pumps, compressors, and other equipment in petrochemical plants.

Bently Nevada 330130-045-00-CN used in machining equipment like machine tools, this device is used to connect position and vibration monitoring sensors, helping to improve machining accuracy and provide real-time monitoring of equipment operating conditions.

Note

Compatibility: This cable is intended for connection only to 3300 XL Series monitoring systems and associated equipment. Do not connect to incompatible equipment to avoid damaging the cable or causing system failure. Before connecting a new monitoring system, confirm system and cable compatibility.

Performance Parameters

Compatible Probes: Compatible with 8mm and 5mm eddy-current probes.

Cable Length: 4.5 meters.

Conductor Material: Stranded tinned copper.

Insulation: High-quality polyvinyl chloride (PVC).

Shielding: Double-layer shielding (copper braid + aluminum foil).

Operating Temperature Range: -40°C to +85°C.

Protection Rating: Cable body meets IP65 protection rating.

Electrical Performance

DC Resistance:

Center Conductor to Center Conductor (RCORE): 0.99 Ω ±0.15 Ω

JACKET to Outer Conductor (RJACKET): 0.30 Ω ±0.06 Ω

Capacitance: 69.9 pF/m (typical), affects high-frequency signal transmission (may attenuate signals >10 kHz).

Compatibility: Fully interchangeable with all 3300 XL 8mm probes and preamplifiers

Signal Integrity

Maximum Cable Length: Supports 305 meters (1000 feet) of field wiring, but requires splicing for lengths exceeding 91.44 meters (300 feet).

Frequency Response: 0–10 kHz (±3 dB)

Product Advantages

Bently Nevada 330130-045-03-05 have excellent Anti-interference Performance, the double-shielded structure effectively resists strong electromagnetic interference generated by industrial environments such as inverters and large motors.

Bently Nevada 330130-045-03-05 compatible with both 8mm and 5mm eddy-current probes.

Application Areas

Bently Nevada 330130-045-03-05 can be used in the power industry, petrochemical industry, metallurgy industry, energy industry.

Physical Features and Installation

The Bently Nevada 330130-045-03-05's physical design focuses on durability and ease of installation:

Connectors:

ClickLoc gold-plated connectors for corrosion resistance and one-tighten, tool-free installation.

Interface Type: Micro coaxial connector, diameter ≤ 7.24 mm (0.285 in).

Armor: Stainless steel armor with FEP insulation (standard cable) for additional mechanical protection.

Dimensions and Weight:

Unit Weight: 103 g/m (1.5 oz/ft) (armored extension cable).

Outer Diameter: Maximum outer diameter of the armor is 7.67 mm (0.302 in), and maximum outer diameter including the protective sleeve is 12.4 mm (0.49 in) (Figure 18).

Note

Unauthorized modification is strictly prohibited: Cutting, splicing, replacing connectors, and other unauthorized modifications to the cable are prohibited.

Avoid overloading and compression: Do not subject the cable to excessive tension or pressure. Avoid squeezing or crushing by equipment components to prevent internal conductor breakage or insulation damage, which could affect signal transmission.
