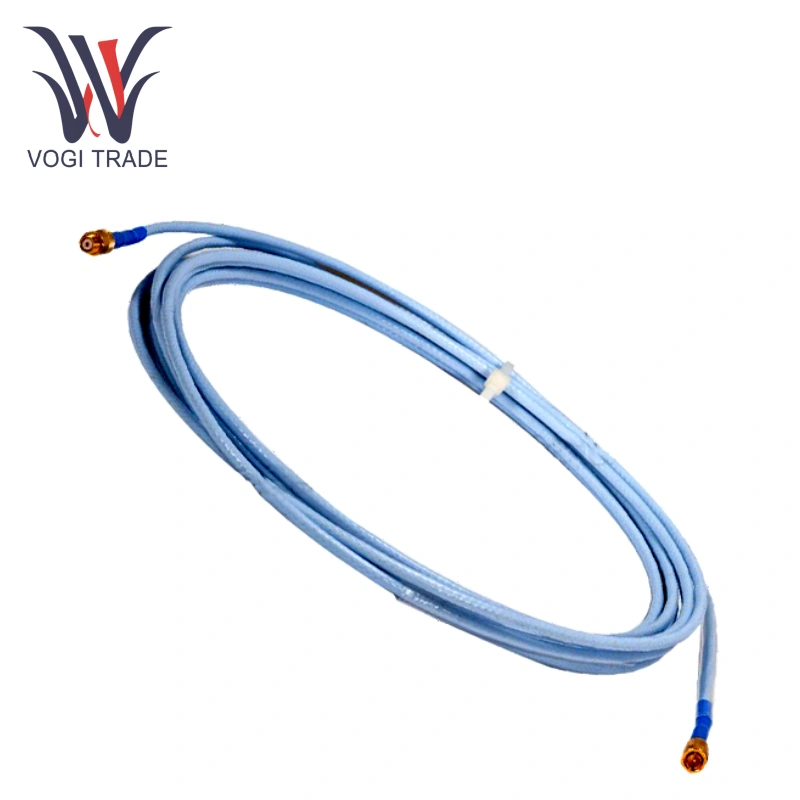

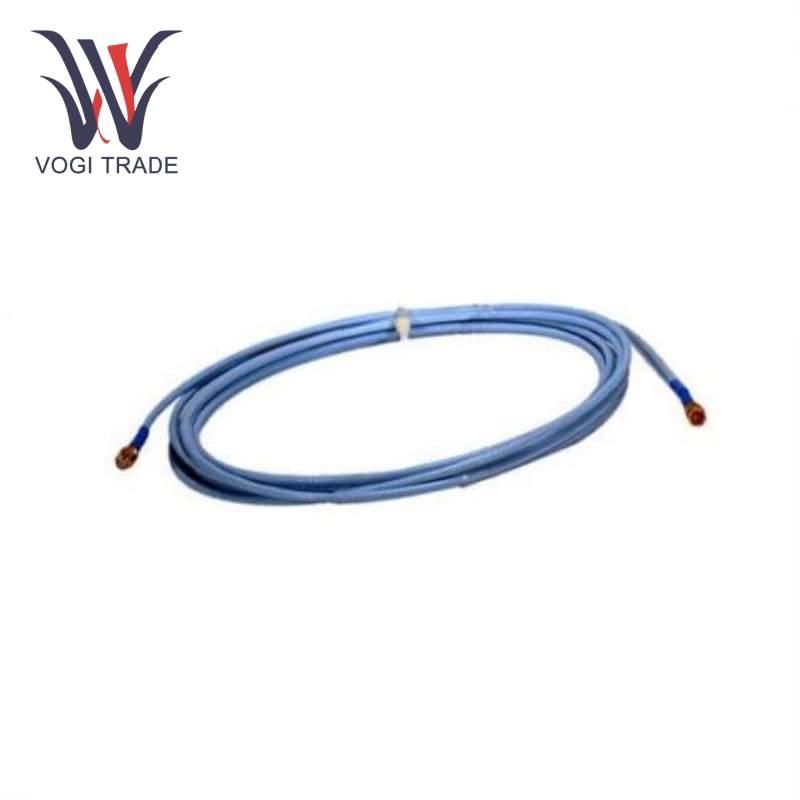

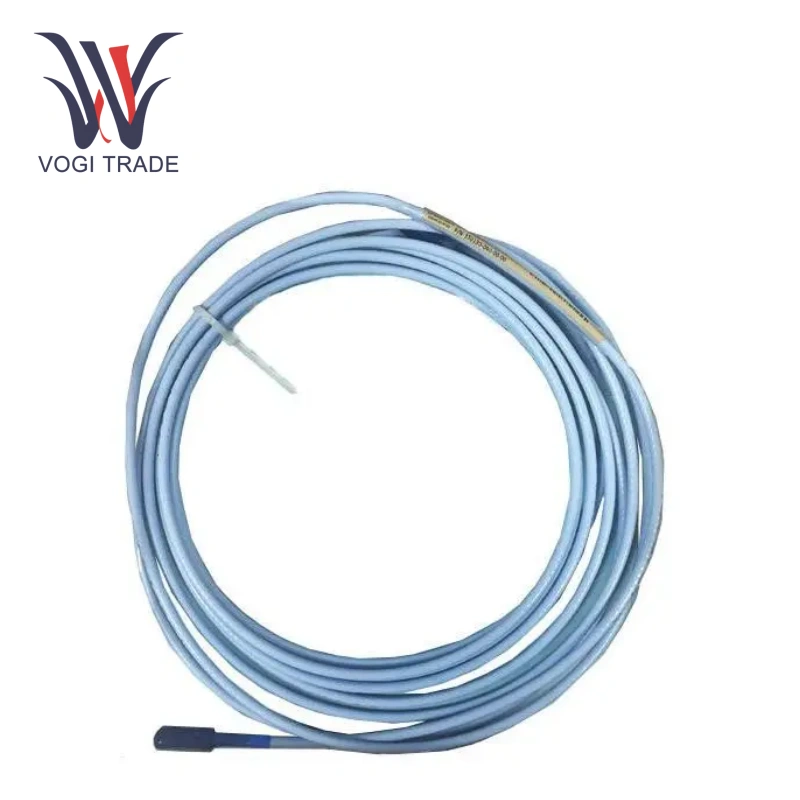

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-045-02-05 is an extension cable for the Bently 3300 XL Monitoring System's rotating machinery condition monitoring system. It is used with either 8mm or 5mm eddy current probes. It stably transmits the probe's collected signal to the preamplifier, ensuring the monitoring system accurately captures equipment operating parameters such as vibration and displacement.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-045-02-05 |
|
Ordering Number |
330130-045-02-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
0.8kg |
Performance Parameters
Model: 330130-045-02-05
Product Type: 3300 XL Standard Extension Cable
Cable Length: 4.5 m (approximately 14.76 ft)
Cable Material: 75Ω triaxial, fluorinated ethylene propylene (FEP) insulation
Connector Type: Micro coaxial Click Loc™ connector
Connector Protection and Cable Options: 02 - Standard cable with connector protector
Operating Temperature Range: -51°C to +177°C
Storage Temperature Range: -51°C to +105°C
Capacitance: Typical 69.9 pF/m (21.3 pF/ft)
Signal Integrity
Maximum Cable Length: Supports 305 meters (1000 feet) of field wiring, but requires splicing for lengths exceeding 91.44 meters (300 feet).
Frequency Response: 0–10 kHz (±3 dB)
Product Advantages
Bently Nevada 330130-045-02-05 have excellent Anti-interference Performance, the double-shielded structure effectively resists strong electromagnetic interference generated by industrial environments such as inverters and large motors.
Bently Nevada 330130-045-02-05 compatible with both 8mm and 5mm eddy-current probes.
Bently Nevada 330130-045-02-05 with the perfect combination of 75Ω triaxial structure and FEP insulation layer can effectively shield external electromagnetic interference, ensuring that the signal remains stable and accurate during transmission.
Application Areas
Energy and power sector: Bently Nevada 330130-045-02-05 is commonly used to connect proximity probes and preamplifiers in monitoring systems for equipment like steam turbines and generators, accurately transmitting monitoring signals such as equipment vibration and displacement in real time.
Petrochemical industry: Bently Nevada 330130-045-02-05 performs signal transmission extension in monitoring systems for equipment like compressors and pumps.
Note
Unauthorized modification is strictly prohibited: Cutting, splicing, replacing connectors, and other unauthorized modifications to the cable are prohibited.
Avoid overloading and compression: Do not subject the cable to excessive tension or pressure. Avoid squeezing or crushing by equipment components to prevent internal conductor breakage or insulation damage, which could affect signal transmission.
