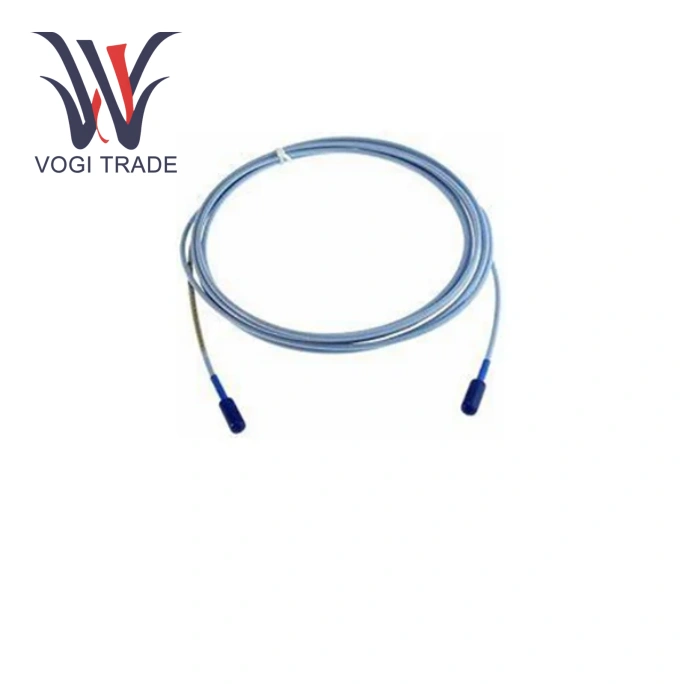

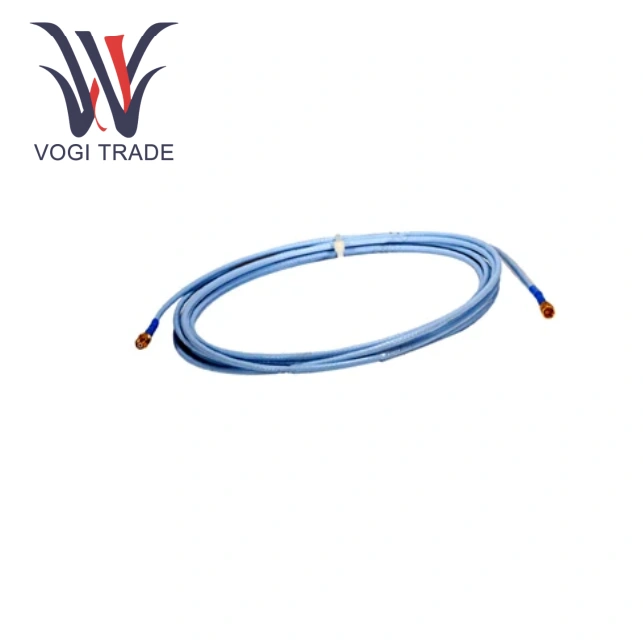

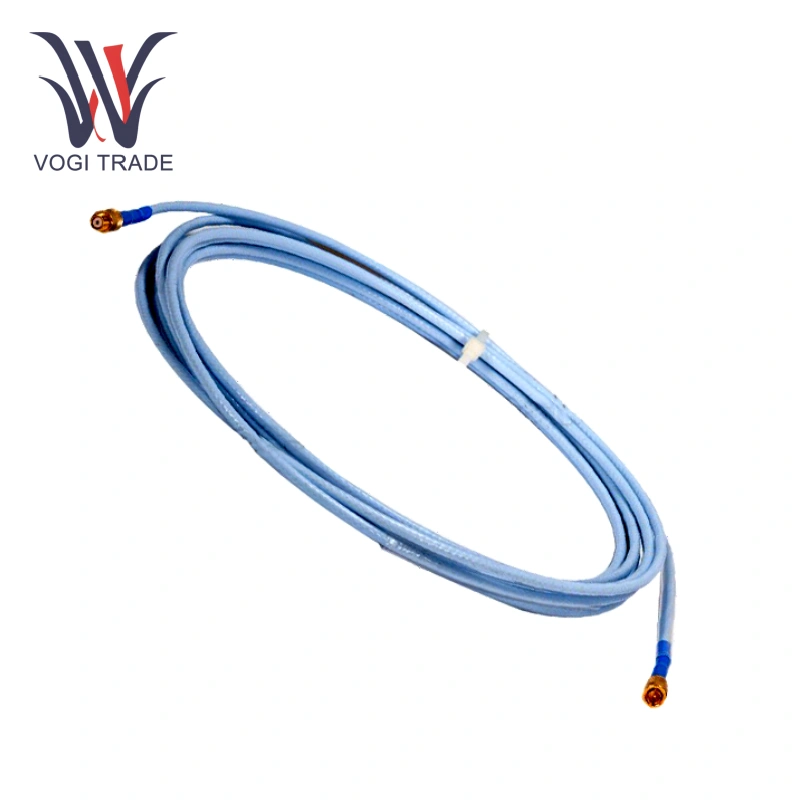

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-045-03-05 is an extension cable for the Bently 3300 XL Monitoring System's rotating machinery condition monitoring system. It is used with either 8mm or 5mm eddy current probes. It stably transmits the probe's collected signal to the preamplifier, ensuring the monitoring system accurately captures equipment operating parameters such as vibration and displacement.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-045-03-05 |
|
Ordering Number |
330130-045-03-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
0.8kg |
Performance Parameters
Compatible Probes: Compatible with 8mm and 5mm eddy-current probes.
Cable Length: 4.5 meters.
Conductor Material: Stranded tinned copper.
Insulation: High-quality polyvinyl chloride (PVC).
Shielding: Double-layer shielding (copper braid + aluminum foil).
Operating Temperature Range: -40°C to +85°C.
Protection Rating: Cable body meets IP65 protection rating.
Electrical Performance
DC Resistance:
Center Conductor to Center Conductor (RCORE): 0.99 Ω ±0.15 Ω
JACKET to Outer Conductor (RJACKET): 0.30 Ω ±0.06 Ω
Capacitance: 69.9 pF/m (typical), affects high-frequency signal transmission (may attenuate signals >10 kHz).
Compatibility: Fully interchangeable with all 3300 XL 8mm probes and preamplifiers
Signal Integrity
Maximum Cable Length: Supports 305 meters (1000 feet) of field wiring, but requires splicing for lengths exceeding 91.44 meters (300 feet).
Frequency Response: 0–10 kHz (±3 dB)
Product Advantages
Bently Nevada 330130-045-03-05 have excellent Anti-interference Performance, the double-shielded structure effectively resists strong electromagnetic interference generated by industrial environments such as inverters and large motors.
Bently Nevada 330130-045-03-05 compatible with both 8mm and 5mm eddy-current probes.
Application Areas
Bently Nevada 330130-045-03-05 can be used in the power industry, petrochemical industry, metallurgy industry, energy industry.
Physical Features and Installation
The Bently Nevada 330130-045-03-05's physical design focuses on durability and ease of installation:
Connectors:
ClickLoc gold-plated connectors for corrosion resistance and one-tighten, tool-free installation.
Interface Type: Micro coaxial connector, diameter ≤ 7.24 mm (0.285 in).
Armor: Stainless steel armor with FEP insulation (standard cable) for additional mechanical protection.
Dimensions and Weight:
Unit Weight: 103 g/m (1.5 oz/ft) (armored extension cable).
Outer Diameter: Maximum outer diameter of the armor is 7.67 mm (0.302 in), and maximum outer diameter including the protective sleeve is 12.4 mm (0.49 in) (Figure 18).
Note
Unauthorized modification is strictly prohibited: Cutting, splicing, replacing connectors, and other unauthorized modifications to the cable are prohibited.
Avoid overloading and compression: Do not subject the cable to excessive tension or pressure. Avoid squeezing or crushing by equipment components to prevent internal conductor breakage or insulation damage, which could affect signal transmission.
