Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The 330130-070-00-00 is the Bently Nevada 3300 XL Series Standard Extension Cable and is part of the 3300 XL 8 mm Proximity Transducer System. This system is used for machinery condition monitoring, measuring vibration and position on rotating machinery (such as fluid film bearings) using the eddy current principle.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-070-00-00 |
|
Ordering Number |
330130-070-00-00 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
1.5 kg |
Electrical Characteristics
DC Resistance:
Center conductor to center conductor (RCORE): 1.54 ± 0.23 Ω.
JACKET: 0.46 ± 0.09 Ω.
Capacitance: 69.9 pF/m (typical).
Frequency Response: 0 to 10 kHz, +0, -3 dB.

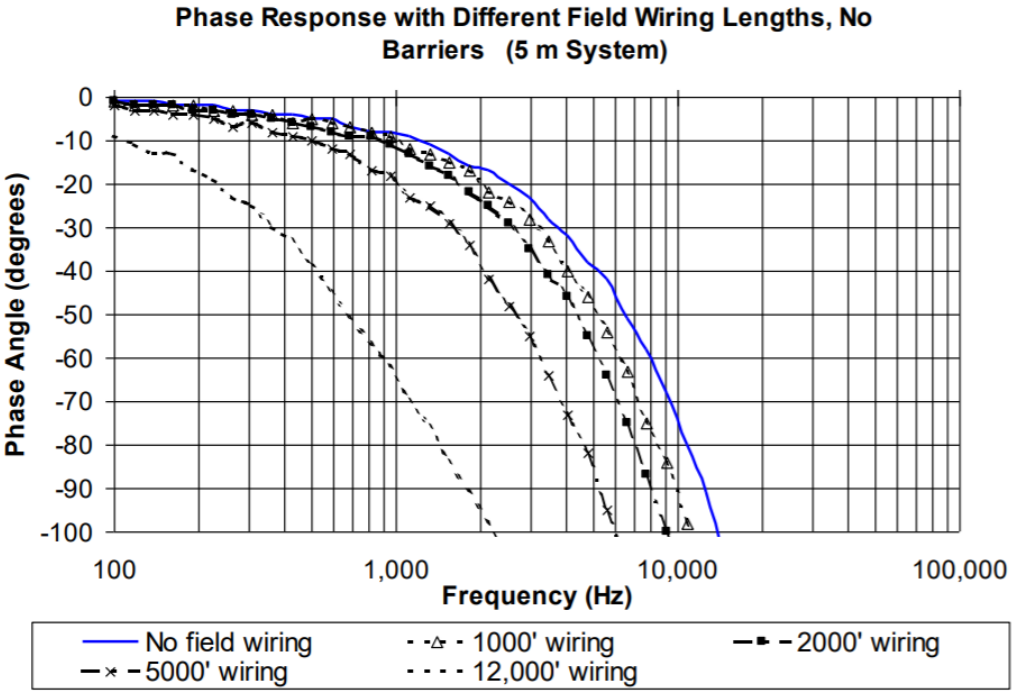

Field Wiring Requirements: 0.2 to 1.5 mm² (16 to 24 AWG) wire is supported. Three-conductor shielded twisted triad cable is recommended. Maximum field wiring length is 305 meters (1000 feet), but high-frequency signal rolloff should be noted.
Mechanical and Physical Characteristics
Material: 75Ω triaxial cable with FEP insulation (standard option). FEP provides excellent chemical resistance and insulation.
Minimum Cable Bend Radius: 25.4 mm (1.0 in).
Connector: Corrosion-resistant gold-plated ClickLoc connector (gold-plated brass or beryllium copper).
Weight: 34 g/m (0.4 oz/ft), approximately 238 g (0.52 lb) for a 7.0 m cable.

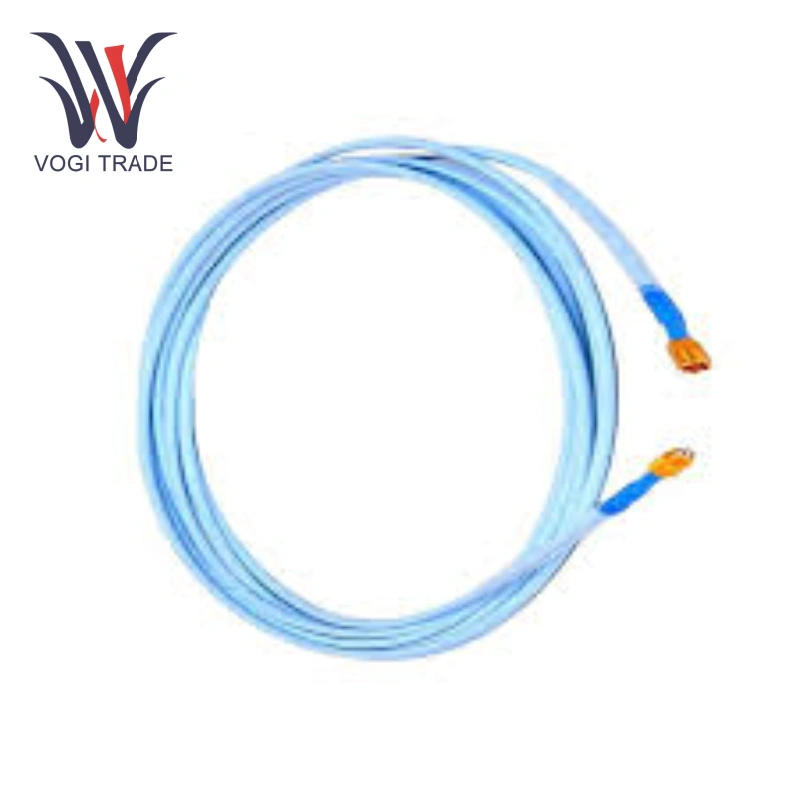

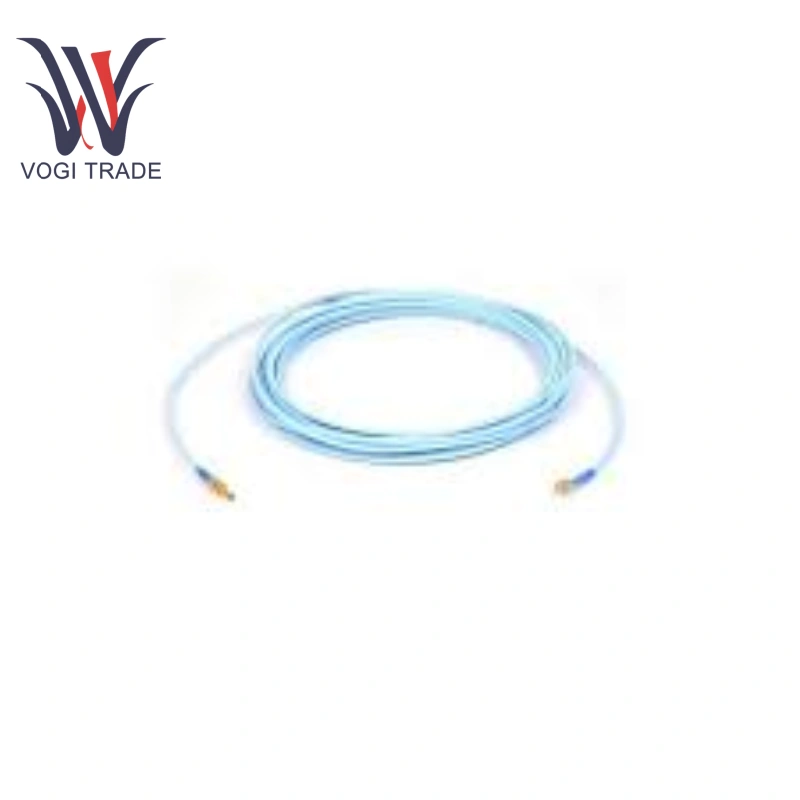

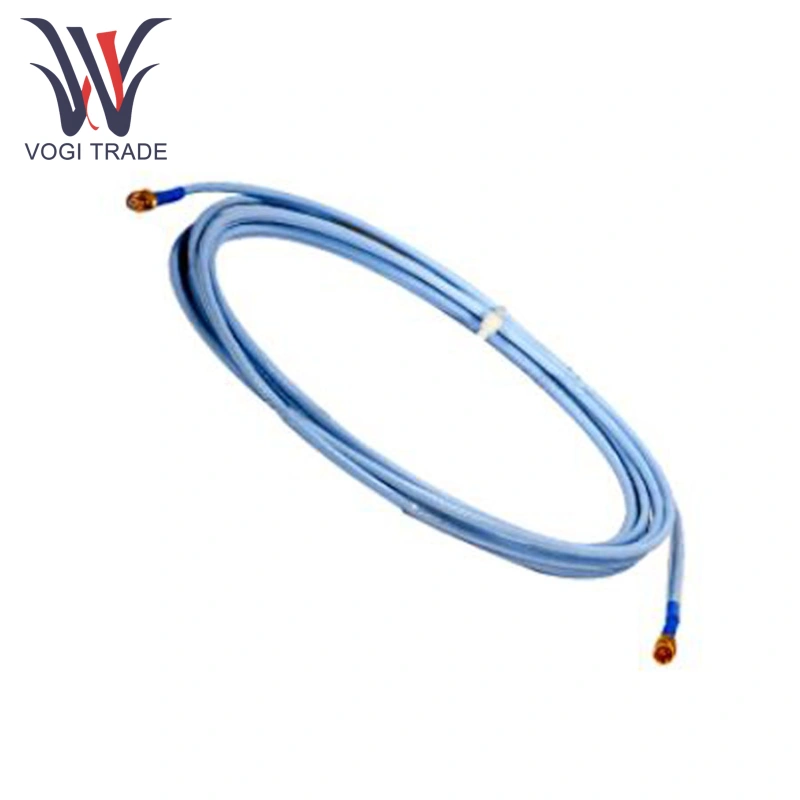

Dimensions and Appearance: This cable has no connector protector and its physical structure is shown in the image. Features include:
Gold-plated micro coaxial connector (maximum outer diameter 7.24 mm).
FEP-insulated cable (maximum outer diameter 3.68 mm).
No armor, simplifying cabling.
Product Advantages
Bently Nevada 330130-070-00-00 with a low-resistance center conductor and shielded design reduce signal loss and interference.
Bently Nevada 330130-070-00-00 use the patented CableLoc design increases tensile strength to prevent disconnection. The plug with a fluorosilicone rubber protective sleeve and high-quality terminal blocks are corrosion- and oxidation-resistant, ensuring a long-term, stable connection.
Bently Nevada 330130-070-00-00 with standard and extended temperature ranges accommodate a wide range of industrial environments, from extremely cold to extremely high temperatures.
Application
Power Industry: Bently Nevada 330130-070-00-00 used in vibration monitoring systems for equipment such as steam turbines and generators, extending the probe signal transmission distance and accurately monitoring equipment operating status.
Petrochemical Industry: Bently Nevada 330130-070-00-00 suitable for monitoring the status of pumps, compressors, fans, and other equipment in petrochemical plants. By extending the cable and installing the probe in the appropriate location, it accurately measures equipment vibration and position changes.
Industrial Manufacturing: Bently Nevada 330130-070-00-00 connecting position and vibration monitoring probes to machining equipment such as machine tools helps improve machining accuracy, monitor equipment operating status in real time, and promptly detect equipment anomalies.
