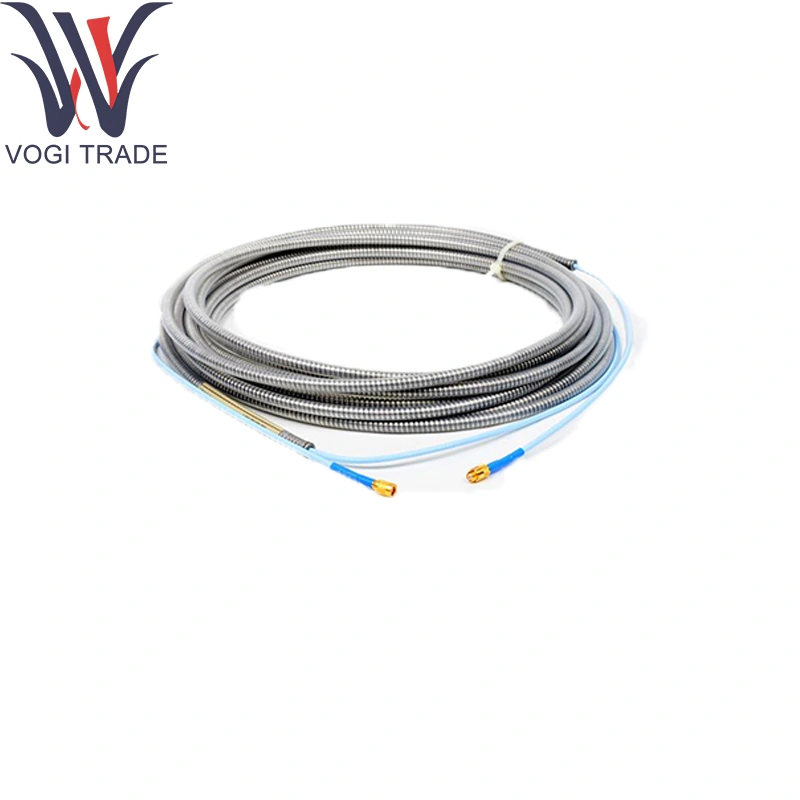

Bently Nevada 330130-080-01-00

Ordering Information

3300 XL 8 mm Proximity Probes:

330101   3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)

330102    3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)

Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option

Order in increments of 0.1 in.

Length configurations:

Maximum unthreaded length: 8.8 in.

Minimum unthreaded length: 0.0 in.

Example: 0 4 = 0.4 in.

B: Overall Case Length Option

Order in increments of 0.1 in.

Standard thread configurations:

Maximum case length: 9.6 in.

Minimum case length: 0.8 in.

Example: 2 4 = 2.4 in.

C: Total Length Option

05  0.5 meter (1.6 feet)

10  1.0 meter (3.3 feet)

15  1.5 meter (4.9 feet)

20  2.0 meters (6.6 feet)

30  3.0 meters (9.8 feet)

50  5.0 meters (16.4 feet)

90  9.0 meters (29.5 feet)

Technical Parameters

Impedance: 50 Ω ± 5 Ω for Bently Nevada 330130-080-01-00

Capacitance: ≤ 100 pF/m between conductors

Conductor: 26 AWG, 7 × 36 tinned-copper strands per core

Shielding: ≥ 95 % coverage braided shield in Bently Nevada 330130-080-01-00; drain-wire included

Voltage Rating: 300 VAC (insulation)

Temperature Rating:

PVC: –20 °C to +80 °C

PTFE option: –55 °C to +200 °C

Environmental: RoHS-compliant; UV-resistant jacket option available

Product function

Delivers high-fidelity AC signals using Bently Nevada 330130-080-01-00 to Proximitor® cards with minimal loss. The matched impedance and braided shielding preserve signal integrity for accurate shaft-position measurements.

Application Areas

Junction Boxes & Mini-Enclosures: Short interconnects with Bently Nevada 330130-080-01-00 in confined cabinets.

Retrofit Installations: Bridging probes to relocated racks via Bently Nevada 330130-080-01-00.

Test & Calibration Rigs: Quick-disconnect harnesses for bench validation.

OEM Skid Packages: Factory-assembled harnesses in panels using Bently Nevada 330130-080-01-00.
