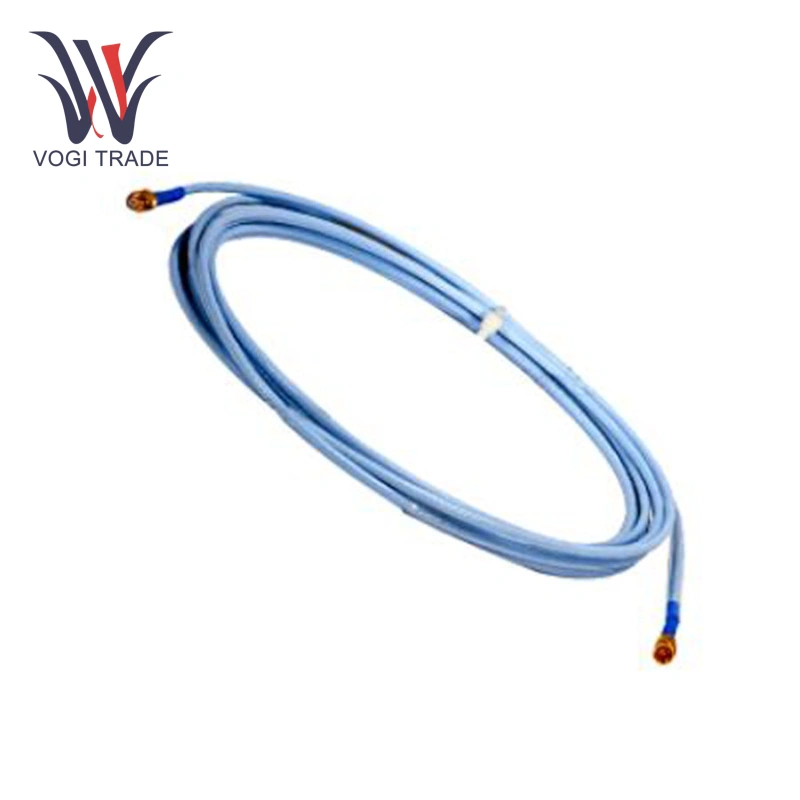

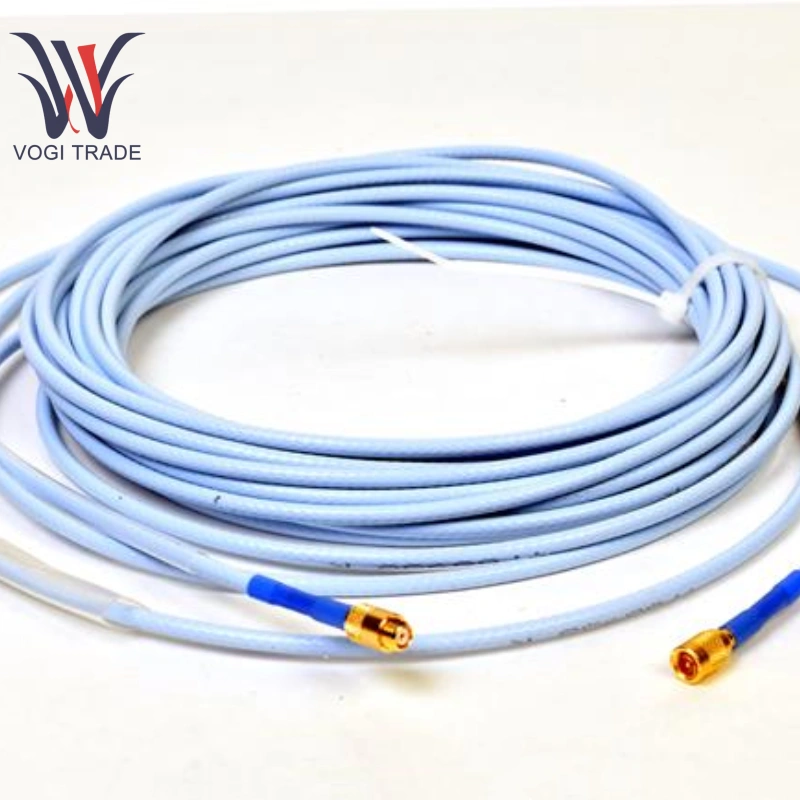

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-085-00-00 is an extension cable designed specifically for rotating machinery monitoring systems and is a key accessory for the 3300 XL series. It is primarily used to connect 8mm or 5mm eddy current probes to the front-end amplifier, ensuring that key signals such as equipment vibration and displacement collected by the probe are stably transmitted to the front-end amplifier.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-085-00-00 |
|
Ordering Number |
330130-085-00-00 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
1kg |
Performance Parameters
Electrical Characteristics:
DC Resistance:
RCORE (center conductor to center conductor): 1.87 ± 0.28 Ω.
RJACKET (outer conductor to outer conductor): 0.56 ± 0.11 Ω.
Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
Field Wiring: Accepts 0.2 to 1.5 mm² (16 to 24 AWG) wire; 3-conductor shielded cable is recommended. Maximum length to sensor: 305 m (1000 ft); however, high-frequency signal attenuation should be considered.
Mechanical Characteristics:
Minimum Bend Radius: 25.4 mm (1.0 in). Avoid excessive bending to avoid damage to the cable.
Connector Torque: Maximum 0.565 N·m (5 in·lbf); finger-tight is recommended. Temperature Range:
Operating and Storage Temperature: -52°C to +177°C.
Other Features:
Frequency Response: 0 to 10 kHz, +0, -3 dB (with 305 m field cabling).
Durability: Tensile strength: 270 N (60 lbf) at the probe lead to the extension cable connector.
Product Features
High Precision and Stability: Bently Nevada 330130-085-00-00 utilizing a MEMS accelerometer and signal conditioning circuit, the vibration velocity measurement error is less than 0.5% of full scale, with a low temperature drift coefficient (±0.03% FS/°C).
Strong Environmental Adaptability: Bently Nevada 330130-085-00-00 use stainless steel housing and IP67 protection rating allow for direct installation in humid, dusty, or mildly corrosive industrial environments.
Strong Anti-Interference Capability: Bently Nevada 330130-085-00-00 integrated electromagnetic shielding and RC filtering protect against high-frequency noise interference from devices such as inverters and motors.
Applications
Bently Nevada 330130-085-00-00 is widely used in key rotating equipment in the power, petrochemical, metallurgical, and papermaking industries. Vibration data collection and analysis provide early warning of equipment failures.
Notes
Document Note 8: The cable includes silicone tape (optional in place of the connector protector), but is not recommended for applications exposed to turbine oil.
Disclaimer: Bently Nevada assumes no responsibility for damage resulting from probe leakage. The user is responsible for ensuring safe control of fluids and gases.
Performance Impact: Temperature changes may alter resistance and capacitance, affecting signal accuracy. For optimal performance, the document recommends use within the standard temperature range (0°C to 45°C).
