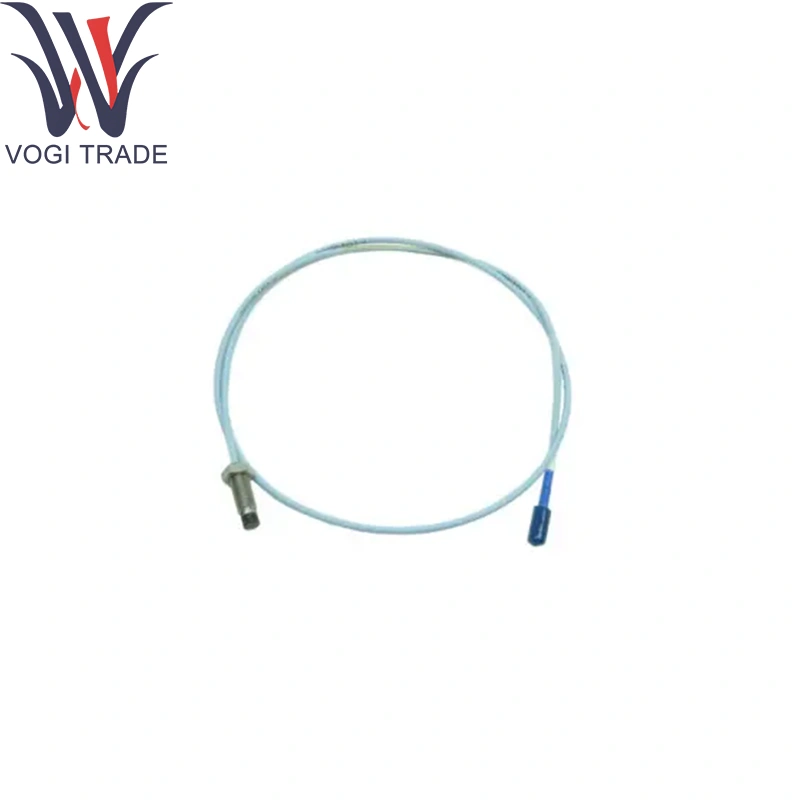

Bently Nevada 330130-085-00-05

Ordering Information

330130-AAA-BB-CC

A: Cable Length Option

030   3.0 meters (9.8 feet)

035   3.5 meters (13.1 feet)

040   4.0 meters (11.5 feet)

045   4.5 meters (14.8 feet)

060   6.0 meters (19.7 feet)

070   7.0 meters (22.9 feet)

075   7.5 meters (24.6 feet)

080   8.0 meters (26.2 feet)

085   8.5 meters (27.9 feet)

B: Connector Protector and Cable Option

00   Standard cable

01   Armored cable

02  Standard cable with connector protector

03   Armored cable with connector protector

10   FluidLoc cable

11   Armored FluidLoc cable

12   FluidLoc cable with connector protector

13   Armored FluidLoc cable with connector protector

C: Agency Approval Option

00   Not required

05   CSA, ATEX, IECEx  Approvals

Technical Parameters

Characteristic Impedance: 50 Ω ± 5 %

Capacitance: ≤ 100 pF/m between conductors for Bently Nevada 330130-085-00-05

Conductors: 26 AWG, 7 × 36 tinned-copper strands per core

Shielding: Braided tinned-copper ≥ 95 % coverage with drain-wire termination in Bently Nevada 330130-085-00-05

Voltage Rating: 300 VAC (insulation)

Temperature Rating: –20 °C to +80 °C (PVC jacket)

Environmental Compliance: RoHS-compliant; UL-recognized cable

Product function

Bently Nevada 330130-085-00-05 maintains proximity-probe AC signal fidelity through a 0.85 m controlled-impedance extension. Factory-terminated connectors and robust shielding minimize signal attenuation/EMI, ensuring accurate shaft-position and vibration measurements..

Application Areas

Control-Panel Interiors: Short harnesses in turbine/compressor/generator cabinets

OEM Skid Packages: Factory-wired extensions using Bently Nevada 330130-085-00-05

Junction Boxes: Internal cable routing in non-armored enclosures

Portable Test Rigs: Quick-disconnect extensions featuring Bently Nevada 330130-085-00-05

Retrofit Installations :Adding/relocating monitor racks with Bently Nevada 330130-085-00-05
