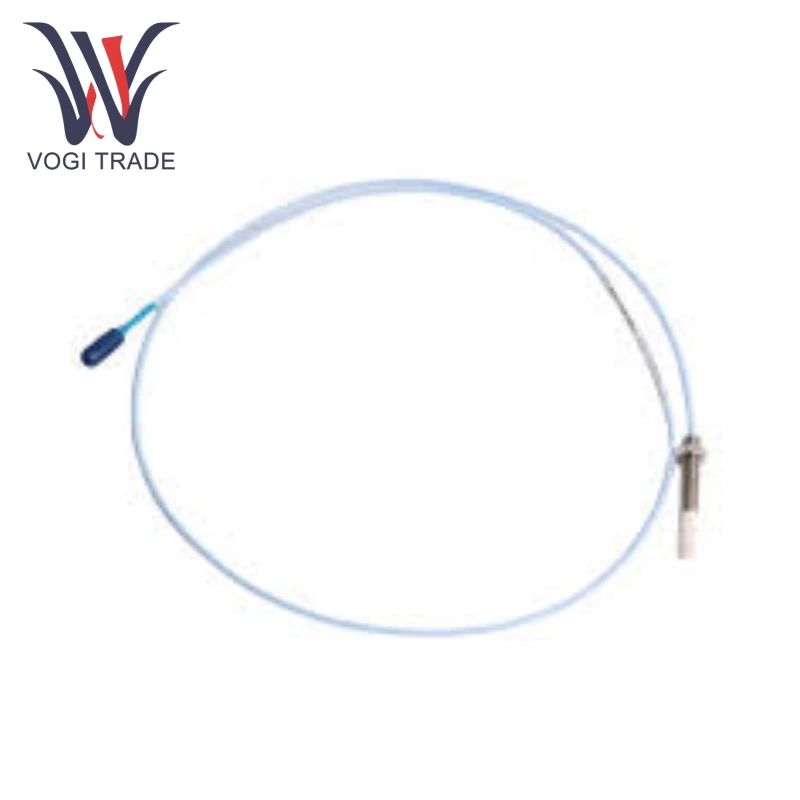

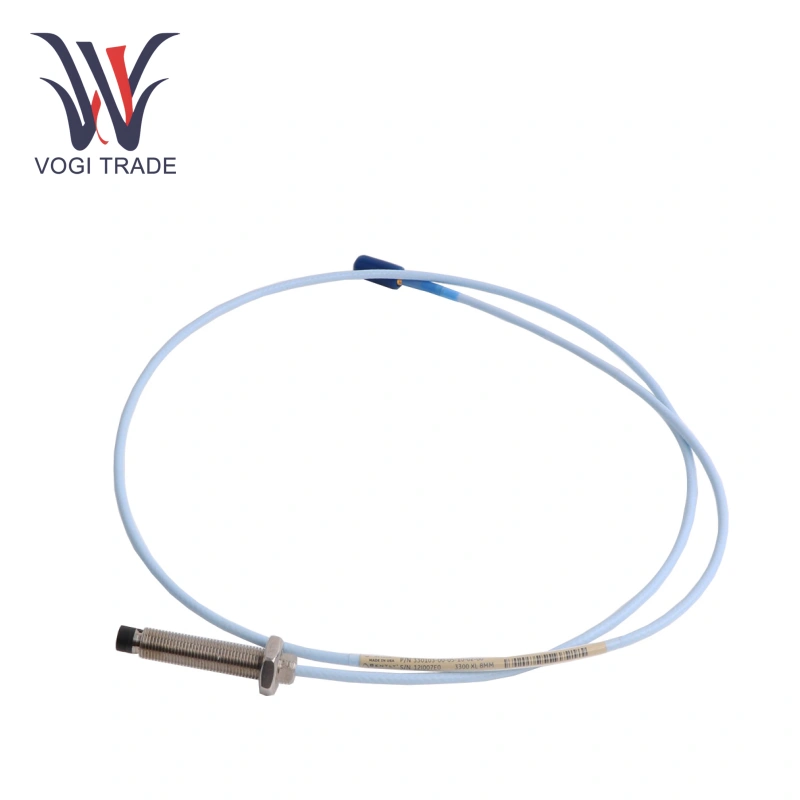

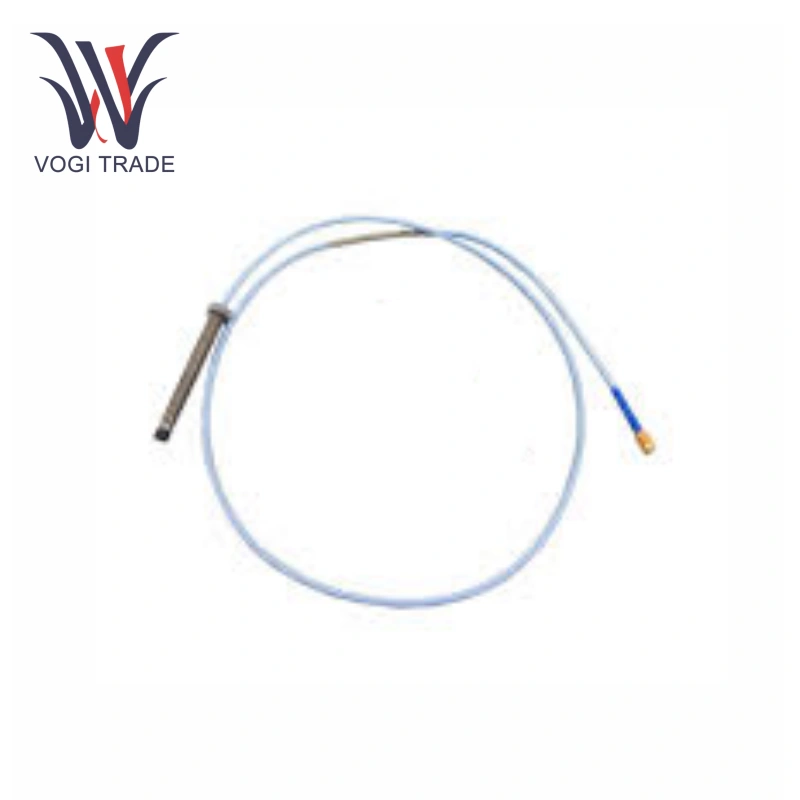

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330173-00-02-20-02-05 is part of the 3300 XL series of 5mm proximity probes, designed for precise vibration and displacement measurement on rotating machinery. This probe system consists of the 3300 XL 5mm probe, extension cable, and 3300 XL Proximitor Sensor.
|
Manufacture |
Bently Nevada |
|
Model Number |
330173-00-02-20-02-05 |
|
Ordering Number |
330173-00-02-20-02-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.0 kg |
Product Overview
Thread Size: M8×1 (Metric Thread)
Housing Material: AISI 303/304 Stainless Steel
Probe Tip Material: Polyphenylene Sulfide (PPS)
Cable Type: 75Ω Coaxial, Fluorinated Ethylene Propylene (FEP) Insulation
Unthreaded Length: 0 mm (≤ housing length - 20 mm)
Total Housing Length: 20 mm
Cable Length: 2.0 m (Tolerance +20%, -0%)
Tensile Strength: 222 N
Minimum Bend Radius: 25.4 mm (1.0 in)
Weight: 323 g (11.39 oz)
Linear Range: 0.25–2.3 mm (10–90 mils)
Recommended Gap Setting: 1.27 mm (50 mils)
Incremental Scale Factor: 7.87 V/mm ±6.5%
DC Resistance (2 m Cable): 7.73 ± 0.50 Ω
Frequency Response: 0–10 kHz (+0, -3 dB)
Minimum Target Size: 15.2 mm diameter (flat target)
Minimum Shaft Diameter: 50.8 mm (≥76.2 mm recommended)
Product Features
Accurate Measurement: Bently Nevada 330173-00-02-20-02-05 with a sensitivity of up to -400mV/mil and an accuracy of ±1% of full scale, it can detect subtle changes in device vibration or displacement.
Compatible: Bently Nevada 330173-00-02-20-02-05 components are backwards compatible and interchangeable with other non-XL 3300 Series 5mm and 8mm sensor systems, facilitating device upgrades and maintenance.
High Protection: Bently Nevada 330173-00-02-20-02-05 meets high protection standards, such as IP68, effectively blocking dust and water intrusion, ensuring reliable operation even in harsh environments.
Applications
Petrochemical: Bently Nevada 330173-00-02-20-02-05 can be installed on key equipment such as compressors and pumps to monitor vibration and position changes during operation in real time, promptly identifying potential equipment failures such as seal failure and bearing wear.
Industrial Manufacturing: Bently Nevada 330173-00-02-20-02-05 is suitable for motors, machine tools, fans, and other equipment to monitor vibration and displacement to prevent equipment damage caused by vibration.
Connector and Installation
Connector Type: Gold-plated brass ClickLoc
Mounting Torque:
Probe Housing: 5.1 N·m (recommended), 7.3 N·m (maximum)
Connector: Finger-tight (click-lock)
Thread Engagement Limit: M8×1, maximum 12 mm
Probe Spacing Requirements:
Radial Vibration ≥ 38 mm (anti-crosstalk < 50 mV)
Axial Position ≥ 40 mm
