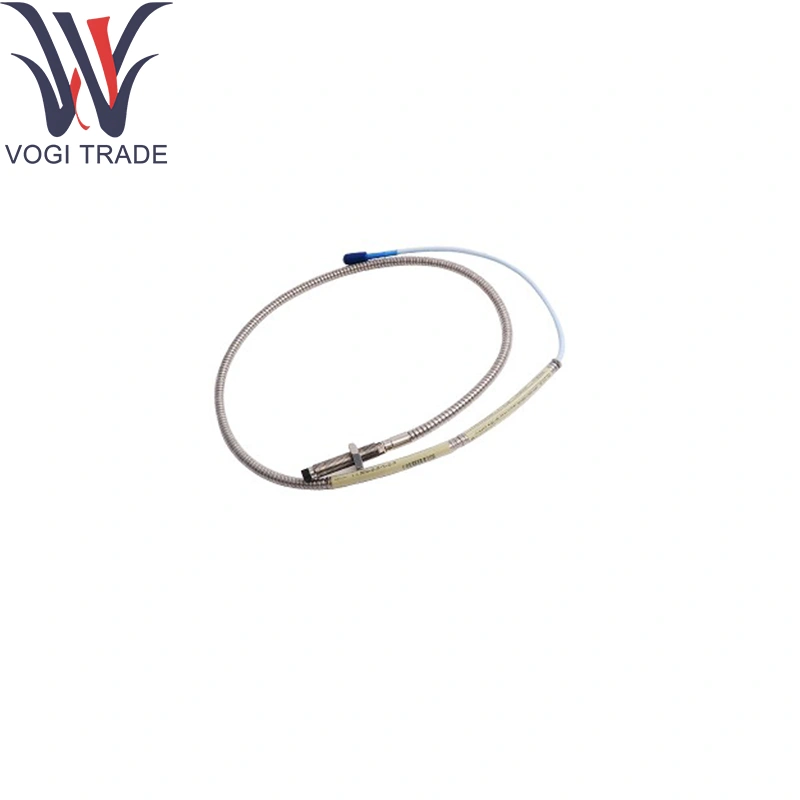

Brand: Bently Nevada Description: 330173-00-03-10-02-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330173-00-03-10-02-00 Non-contact shaft-position and vibration monitoring on rotating equipment.
|
Manufacture |
Bently Nevada |
|
Model Number |
330173-00-03-10-02-00 |
|
Ordering Number |
330173-00-03-10-02-00 |
|
Catalog |
3300 5 MM |
|
Description |
Proximity Probes |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
1 (M) |
|
Weight |
0.71 kg |
Ordering Information
|
Model |
330173 |
330173 3300 5 mm Probe, M8 x 1 thread, without armor |
|
Unthreaded Length Option |
00 |
0 mm |
|
Overall Case Length Option |
03 |
30 mm |
|
Total Length Option |
10 |
1.0 metre (3.3 feet) |
|
Connector Option |
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
00 |
Agency Approval Option |
Technical Parameters
Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330173-00-03-10-02-00
Sensitivity: 50 mV/µm (125 mV/mil) ± 5% at –23 V DC excitation
Output Span: –2 V to –12 V DC over linear range
Linearity: ± 1 % FS
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature:
Probe: –35 °C to +125 °C with Bently Nevada 330173-00-03-10-02-00
Cable: –20 °C to +80 °C (PVC)
Environmental Seal: IP65 when mated
Pressure Rating: Requires external bulkhead/thermowell for pressurized service
Product function
Bently Nevada 330173-00-03-10-02-00 converts minute air-gap changes between probe tip and rotating target into proportional AC voltage. This signal is carried via shielded cable to Proximitor® modules for linearization, digitization, and real-time clearance/vibration analysis.
Application Areas
Steam & Gas Turbines: Early rub and clearance alarms in high-speed bearings using Bently Nevada 330173-00-03-10-02-00
Compressors & Pumps: Surge-control and shaft-alignment monitoring with Bently Nevada 330173-00-03-10-02-00
Generators & Motors: Dynamic imbalance and thrust position surveillance
Research & Test Rigs: High-fidelity vibration studies via Bently Nevada 330173-00-03-10-02-00
OEM Skids & Panels: Tight-space installations requiring minimal probe intrusion
