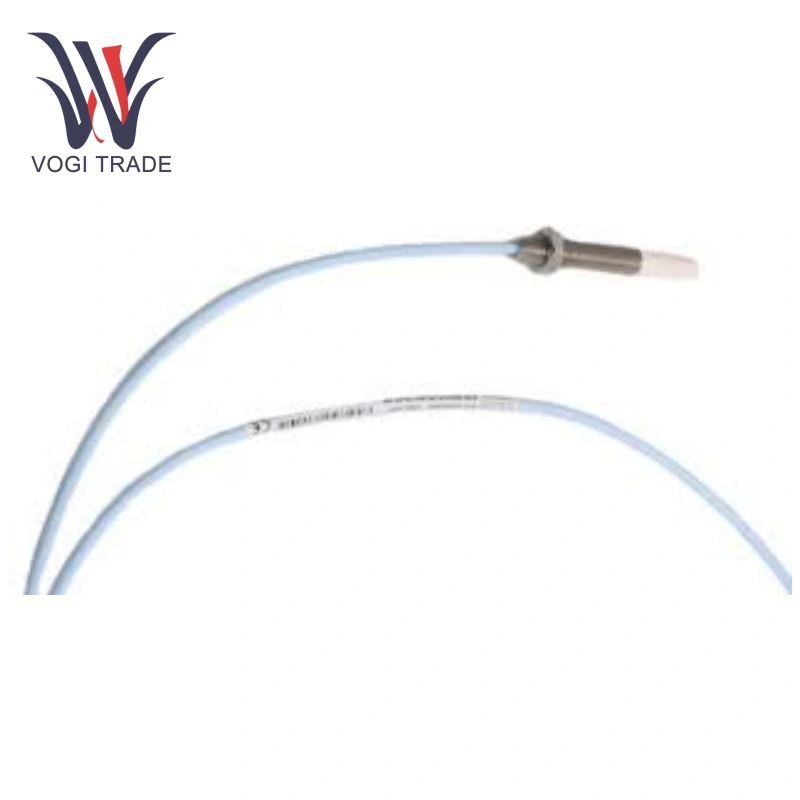

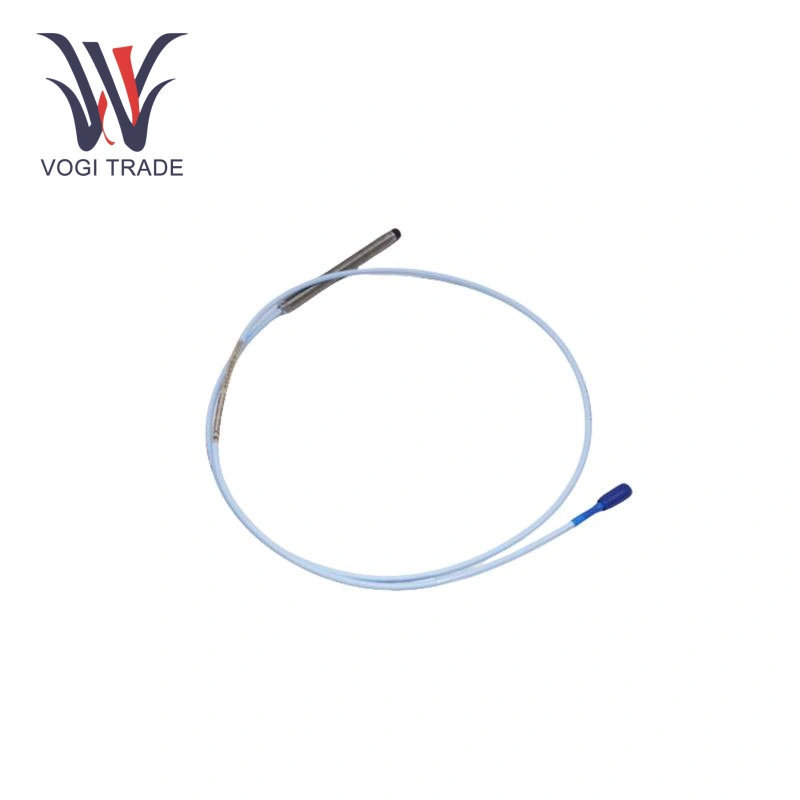

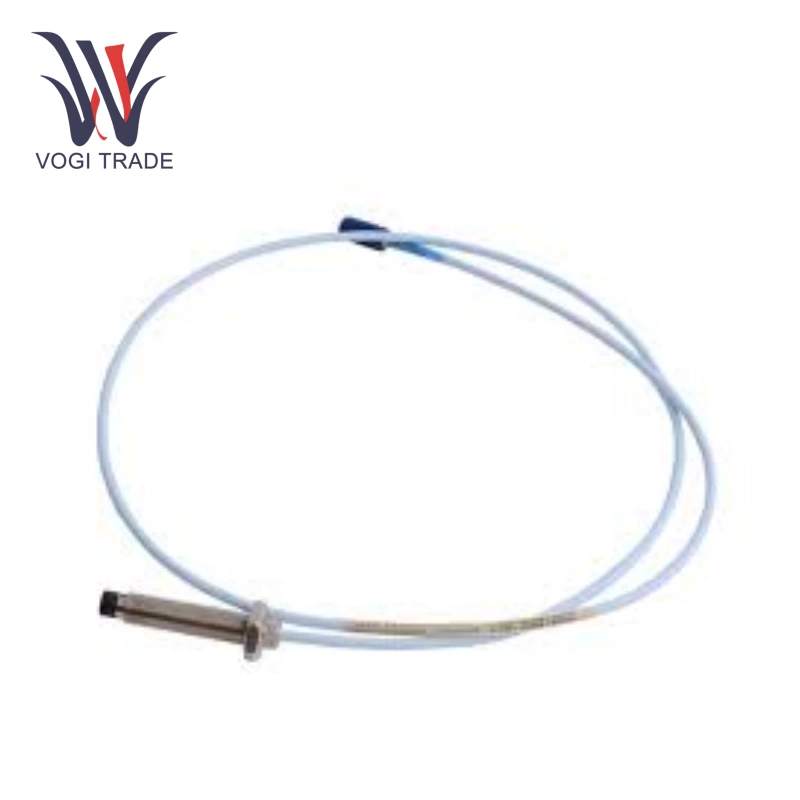

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330173-00-04-20-02-EN is a 5mm proximity probe from the 3300 Series, designed for industrial equipment health monitoring. The probe has a 0mm unthreaded portion, a 40mm overall housing length, and a total system length of 2.0 meters (6.6 feet). It uses a micro coaxial Click Loc connector with a standard cable for a secure and convenient connection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330173-00-04-20-02-CN |
|
Ordering Number |
330173-00-04-20-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
23*23*5CM |
|
Packing Dimension |
25*25*8CM |
|
Weight |
1.0 kg |
Product Overview
Probe Type: 3300 Series 5mm Proximity Probe
Probe Housing Length: 40mm
System Length: 2.0m
Connector Type: Micro coaxial Click Loc connector with standard cable
Linear Range: 1.5mm (60mils)
Sensitivity: 11.8V/mm (300mV/mil), average sensitivity error ≤±5%
Frequency Response: 0-10kHz
Operating Temperature: -50°C to +175°C (Probe)
Operating Media: Operates in a variety of media, including air, oil, and water
Maximum Operating Pressure: 12MPa
Minimum Target Size: 30mm diameter (5mm probe compatible)
Product Features
High-Precision Measurement: Bently Nevada 330173-00-04-20-02-EN with a high sensitivity of 200mV/mil combined with a 60-mil linear range accurately captures minute shaft displacements and vibrations.
Flexible Installation: Bently Nevada 330173-00-04-20-02-EN with threadless design allows for flexible installation in locations with specific space constraints or installation requirements.
High Durability: Bently Nevada 330173-00-04-20-02-EN used PPS probe tip and stainless steel housing provide excellent wear and corrosion resistance, ensuring long-term stable operation in harsh environments such as high temperature, high humidity, and high dust levels.
Applications
Petrochemical: Bently Nevada 330173-00-04-20-02-EN uesd for monitor shaft vibration and displacement on centrifugal air compressors, refrigeration compressors, process gas compressors, and other equipment.
Small Equipment Monitoring: Suitable for radial vibration measurement of equipment with shaft diameters less than 51mm (2 inches), or axial position measurement of flat target surfaces less than 15mm (0.6 inches).
Power Industry: Bently Nevada 330173-00-04-20-02-EN uesd for monitor shaft systems on equipment such as steam turbines and generators to promptly detect shaft anomalies such as shaft bending, misalignment, and bearing wear.
Compatibility and Certifications
Required Components: Requires the 3300 XL Proximity Sensor and XL Extension Cable.
Safety Certifications:
Basic Certifications: CE, FCC, RoHS
Hazardous Areas: ATEX/IECEx Compatible
Note: When not using the connector boot, avoid exposure to turbine oil.
