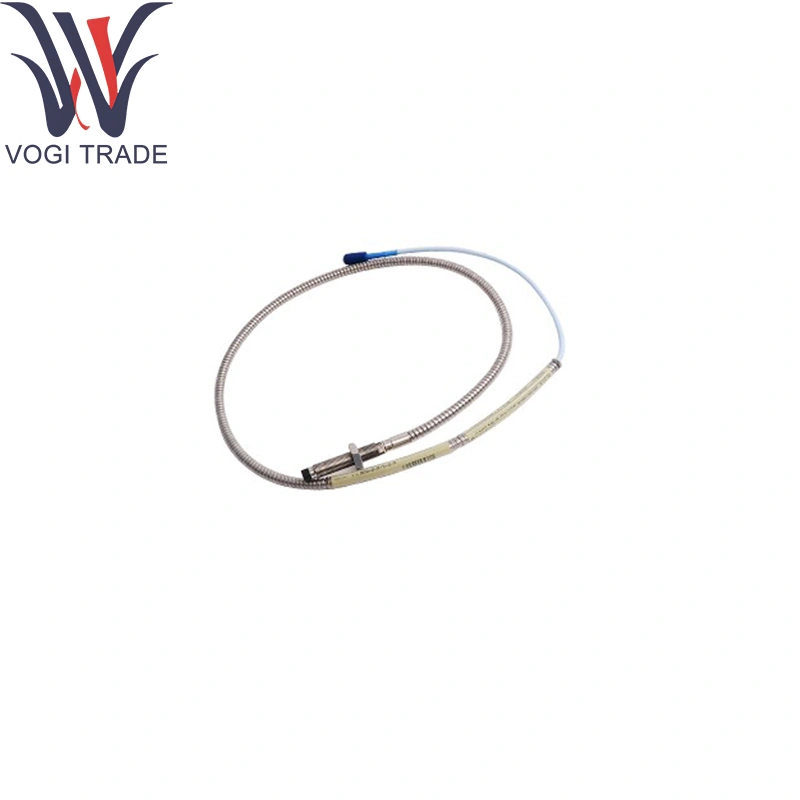

Bently Nevada 330173-00-07-10-02-00

Ordering Information

Part Number: 330173-00-07-10-02-00

Series: 3300 XL Proximity Probe System

Sensor Tip Diameter: 5 mm (0.197 in) carbide or ceramic tip

Probe Body Length Code (“07”): 7 mm (0.28 in) sensing head length

Cable Length Code (“10”): 1.0 m (3.3 ft) PVC-jacketed, braided-shield cable

Connector: 10-pin mini-DIN field-replaceable

Mounting Thread: 3/8-24 UNF standard

Technical Parameters

Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330173-00-07-10-02-00

Sensitivity: 50 mV/µm (125 mV/mil) ± 5% at –23 V DC excitation

Output Span: –2 V to –12 V DC over linear range

Linearity: ± 1 % of span

Frequency Response: DC to 10 kHz (–3 dB)

Operating Temperature:

Probe: –35 °C to +125 °C in Bently Nevada 330173-00-07-10-02-00

Cable: –20 °C to +80 °C (PVC)

Environmental Seal: IP65 when mated to compatible connector

Pressure Rating: Requires external bulkhead or thermowell for pressurized applications

Product function

Transduces minute air-gap variations using Bently Nevada 330173-00-07-10-02-00 into proportional AC voltage. The low-noise signal is carried via shielded cable to Proximitor® modules for linearization and digitization.

Application Areas

Steam & Gas Turbines: Bearing clearance and rub detection with Bently Nevada 330173-00-07-10-02-00

Compressors & Pumps: Surge control and shaft-alignment monitoring

Generators & Motors: Rotor position and imbalance detection

Research & Test Stands: High-precision vibration measurements via Bently Nevada 330173-00-07-10-02-00

OEM & Skid Packages: Embedded clearance sensing in compact panels using Bently Nevada 330173-00-07-10-02-00
