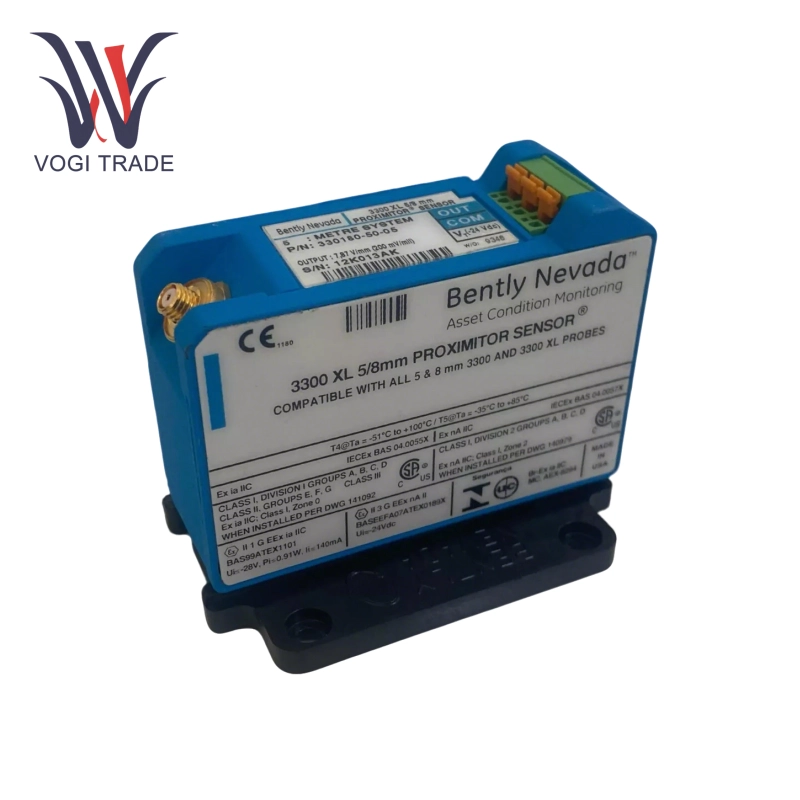

Brand: Bently Nevada Description: Proximitor Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330180-50-05 is a 5/8 mm Proximitor sensor, a core component of the 3300 XL Series Vibration Monitoring System, designed for non-contact, high-precision monitoring of shaft vibration, displacement, speed, and keyphasor parameters of rotating machinery.
|
Manufacture |
Bently Nevada |
|
Model Number |
330180-50-05 |
|
Ordering Number |
330180-50-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9026801000 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
17*17*7CM |
|
Weight |
0.5kg |
330180-AA-BB
330180-50-05
330180: 3300 XL Proximitor Sensor
50(Total Length and Mounting): 5.0 meters (16.4 feet) system length, panel mount
05(Agency Approval): CSA, ATEX, IECEx Approvals
Technical Parameters
Compatible probes: Suitable for 3300 XL series 5 mm and 8 mm eddy current probes and extension cables (such as 330130 series).
Measuring range: Linear range ±2 mm (in accordance with API 670 4th edition standard), sensitivity 7.87 mV/μm (200 mV/mil).
Frequency response: 0–10 kHz, dynamic resolution up to 0.1 micron, suitable for high-speed rotating equipment.
Input voltage: -17.5 Vdc to -26 Vdc (without safety barrier), current ≤12 mA; -23 Vdc to -26 Vdc is required with safety barrier.
Output signal: 4–20 mA or voltage signal, output impedance 50 Ω, supports long-distance transmission (up to 305 meters).
Anti-interference: Improved RFI/EMI shielding design, Bently Nevada 330180-50-05 meets CE certification, no additional metal shielding conduit required .
Mechanical and Environmental
Installation: Bently Nevada 330180-50-05 supports panel mounting (4-hole fixing) or DIN rail mounting, no insulation plate required, saving space .
Operating temperature: -35°C to +85°C (operating), storage temperature -35°C to +100°C
Protection level: IP65/IP67 (dustproof, waterproof spray or immersion) .
Core Functions and Advantages
High-precision monitoring: Non-contact measurement of shaft vibration and displacement through eddy current effect, the output voltage signal is linearly related to the probe-target distance, and the static error is ±0.5% full scale .
Environmental adaptation: Anti-vibration (50g shock), anti-oil (optional FluidLoc anti-penetration cable) and high temperature (ETR version supports up to 260°C) .
