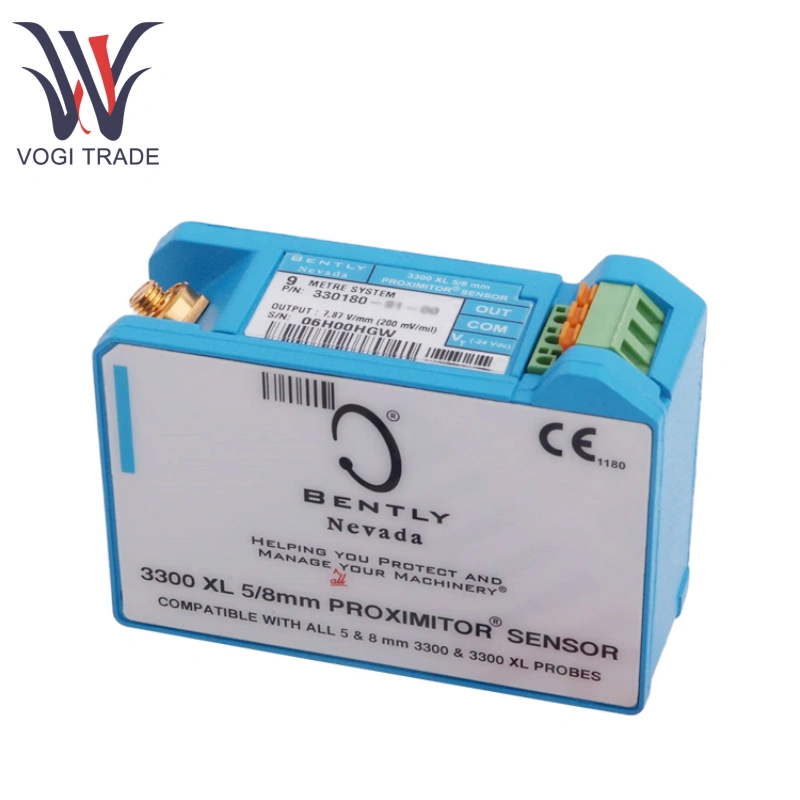

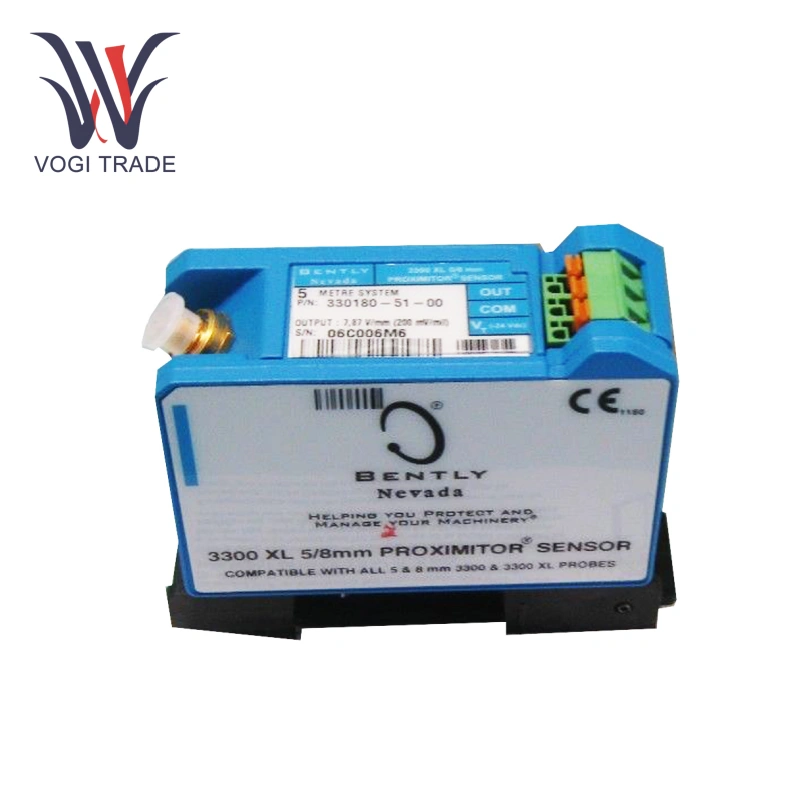

Brand: Bently Nevada Description: Proximity Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330180-90-05 is a member of the 3300 XL Series proximity sensor, used to measure vibration and position in fluid dynamic bearing machines. It utilizes advanced sensing technology to accurately detect changes in the distance between the target object and the probe, converting this distance into an electrical output signal.
|
Manufacture |
Bently Nevada |
|
Model Number |
330180-90-05 |
|
Ordering Number |
330180-90-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|

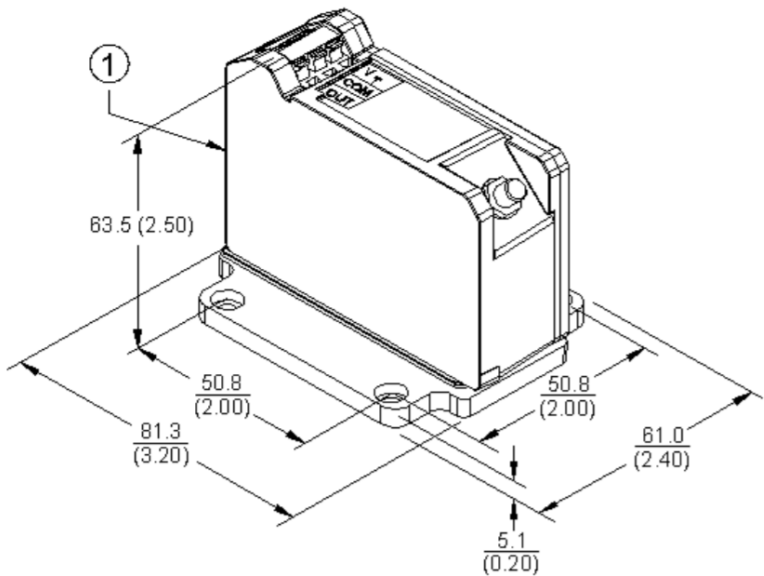

Dimension |
23*23*5CM |
|
Packing Dimension |
25*25*8CM |
|
Weight |
1.5 kg |
Product Overview
Model: 330180-90-05
Product Type: 3300 XL Series Proximity Sensor
Measurement Range: Compatible with different probe sizes for different measurement ranges
Output Signal: 0-10Vdc, 4-20mA (some models support dual output)
Sensitivity: 50mV/mil (2mV/µm)
Frequency Response: 5Hz to 10kHz
Cable Length: 1m (3.3ft), with some models offering system lengths up to 5.0m (16.4ft)
Mounting Method: DIN rail or traditional panel mount
Operating Temperature: -55°C to 175°C (varies slightly between models)
Storage Temperature: -51°C to +105°C (varies slightly between models)
Power Supply: 24Vdc
Product Features
Strong Anti-Interference Capability: Bently Nevada 330180-90-05 with highly immune to radio frequency interference (RFI), it operates normally in complex electromagnetic environments, such as fiberglass enclosures, and is unaffected by nearby RF signals.
Wide Temperature Adaptability: Bently Nevada 330180-90-05 operates normally in a wide temperature range of -55°C to 175°C, suitable for a variety of extreme industrial environments.
Flexible Output: Bently Nevada 330180-90-05 select models offer dual output options of voltage or current, allowing for flexible selection based on the needs of different monitoring systems, enhancing compatibility and ease of integration with existing systems.
Applications
Energy and Power: Bently Nevada 330180-90-05 used in steam turbines, generators, and other equipment to monitor shaft vibration and displacement, ensuring stable power production.
Petrochemical: Bently Nevada 330180-90-05 installed on key equipment such as compressors and pumps, it monitors vibration and position changes during operation, enabling timely detection of potential equipment failures.
Installation Steps
Secure the sensor to the DIN rail (no special tools required).
Connecting the probe and extension cable: Use ClickLoc connectors, finger-tight (an audible "click" indicates tightening). The connectors feature a locking mechanism to prevent loosening.
Field Wiring: Recommended: Use a 3-conductor, shielded, 0.2 to 1.5 mm² (16 to 24 AWG) three-wire cable with a maximum length of 305 meters. Pay attention to high-frequency signal attenuation when wiring (refer to Figures 10 and 12).
