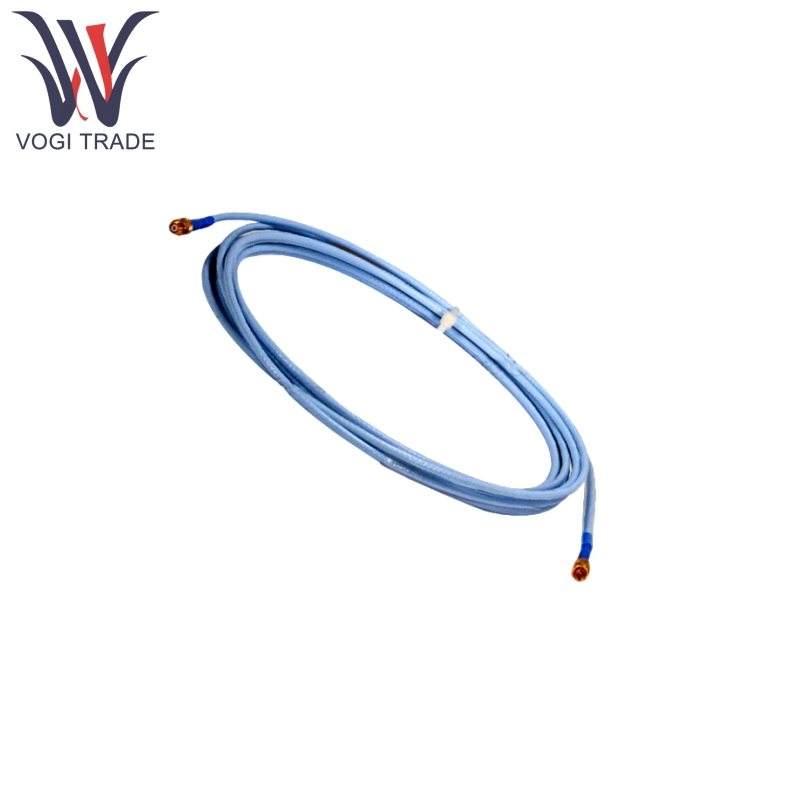

Brand: Bently Nevada Description: Extended Temperature Range (ETR) Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330190-085-00-05 is an Extended Temperature Range (ETR) extension cable from 3300 XL Series, which is a core component of the 3300 XL 8mm Proximity Sensor System and is used to connect the 8mm ETR Probe to the Proximitor Sensor to extend signaling distances for high temperatures and harsh environments.
|
Manufacture |
Bently Nevada |
|
Model Number |
330190-085-00-05 |
|
Ordering Number |
330190-085-00-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9031809090 |
|
Dimension |
8.5m |
|
Weight |
0.3kg |
Product Features
Bently Nevada 330190-085-00-05 is high temperature tolerant and can be used as an ETR cable for stable operation from - 52°C to + 260°C (-62°F to + 500°F), far exceeding standard cables (177°C upper limit) for high temperature industrial environments.
Bently Nevada 330190-085-00-05 features 75Ω triaxial construction, PFA insulation to minimize signal loss, and a patented CableLoc design that provides 330N (75lbf) of tensile strength to prevent the cable from disconnecting from the probe or sensor connection for stable signal transmission.
Bently Nevada 330190-085-00-05 is equipped with gold-plated ClickLoc connectors that require only finger-tightening (“click” for locking), eliminating the need for tools, and the connectors are corrosion-resistant, with a locking mechanism that prevents loosening and improves environmental compatibility.
Bently Nevada 330190-085-00-05 is CSA, ATEX, and IECEx certified for use in Zone 2, Division 2, and other hazardous areas to meet explosion-proof and safety regulations.
Product Applications
High-temperature industrial equipment monitoring:
Bently Nevada 330190-085-00-05 is suitable for vibration (radial/axial) and shaft position measurements on turbines, gas turbines, high-temperature pumps, etc., especially in scenarios where the ambient temperature of the probes or cables exceeds 177°C;
Hazardous area applications:
Bently Nevada 330190-085-00-05 can be used in Zone 2, Division 2 hazardous areas (environments with flammable or explosive gases or dusts) in the petroleum, chemical, and energy industries, thanks to its CSA, ATEX, and IECEx approvals;
Keyphasor and speed monitoring:
Bently Nevada 330190-085-00-05 supports Keyphasor reference signal and speed measurement, which is suitable for high-precision synchronized monitoring needs.
Product Parameter
DC Resistance (R_CORE, between center conductors) 1.87±0.28Ω (for 8.5m length)
DC Resistance (R_JACKET, between outer conductors) 0.56±0.11Ω (for 8.5m length)
Capacitance 69.9 pF/m (21.3 pF/ft) (typical)
Characteristic Impedance 75Ω (triaxial structure)
Maximum Length of Field Wiring 305 meters (1000 feet, connecting Proximitor to monitor)
Operating/Storage Temperature Range -52°C to +260°C (-62°F to +500°F)
RFI/EMI Immunity Complies with European CE marking, resistant to radio frequency interference without special shielding
Connector Torque Maximum 0.565 N・m (5 in・lbf) (finger-tightening is sufficient)
Tensile Strength (cable to connector) 270 N (60 lbf)
Ordering Information
|
Model |
330190 |
Base model, representing 3300 XL ETR extension cable |
|
Cable Length Option |
085 |
8.5 meters (27.9 feet) |
|
Cable Option |
00 |
Standard cable |
|
Agency Approval Option |
05 |
CSA, ATEX, IECEx Approvals |
