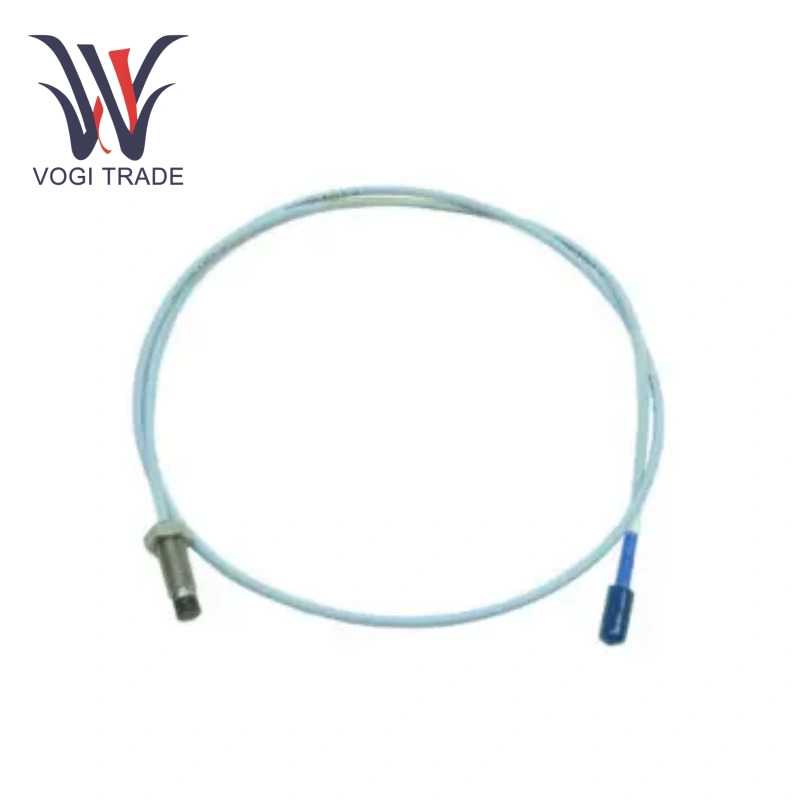

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330191-00-33-90-CN is a member of the 3300 XL Series proximity probes, designed for precise vibration and displacement measurement of rotating machinery. Based on the eddy current principle, it non-contactly detects changes in the distance between the probe tip and a conductive surface and converts this change into a voltage output.
|
Manufacture |
Bently Nevada |
|
Model Number |
330191-00-33-90-CN |
|
Ordering Number |
330191-00-33-90-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.5 kg |
Product Overview
Model: 330191-00-33-90-CN
Product Type: 3300 XL Proximity Probe
Measurement Range: Linear range is 2.0mm (80 mils), starting at approximately 0.25mm (10 mils) from the target surface, i.e., 0.25 - 2.25mm (10 to 90 mils).
Output Signal: Analog voltage, proportional to measurement distance.
Sensitivity: -200mV/mil (-7.87V/mm)
Frequency Response: 0 - 10kHz, typically +0 to -3dB.
Probe Dimensions: 33mm unthreaded length, 90mm total probe housing length.
Total System Length: Available to suit different requirements.
Operating Temperature: Probe: -51°C to +177°C; Standard Extension Cable: -51°C to +177°C; Proximitor Sensor Operating Temperature: -35°C to +85°C, Storage Temperature: -35°C to +100°C
Probe tip material: Polyphenylene sulfide (PPS)
Probe housing material: AISI 303 or 304 stainless steel
Cable specifications: 75Ω triaxial, fluorinated ethylene propylene (FEP) insulation
Connector type: Micro coaxial Click Loc™ connector
Product Features
High-precision measurement: Bently Nevada 330191-00-33-90-CN with a sensitivity of -7.87V/mm and a linearity error of ±5%, it accurately captures subtle changes in device vibration or displacement.
Environmentally robust: Bently Nevada 330191-00-33-90-CN with the stainless steel housing and heat- and corrosion-resistant FEP cable ensure stable operation in a wide temperature range of -51°C to +177°C, as well as in common industrial environments.
Easy installation: Bently Nevada 330191-00-33-90-CN with the standard connector and cable design, combined with the optimal probe size, allows for flexible installation on equipment.
Applications
Energy and Power: Bently Nevada 330191-00-33-90-CN is commonly used in equipment such as steam turbines and generators, monitoring shaft vibration and displacement to ensure stable power production.
Petrochemical: Bently Nevada 330191-00-33-90-CN can be installed on key equipment such as compressors and pumps to monitor vibration and position changes during operation in real time, promptly identifying potential equipment failures such as seal failure and bearing wear.
Key Warnings
Temperature Risk: Avoid installation below -34°C to prevent seal failure.
Leakage Responsibility: Customers are responsible for leak risk management; Bently Nevada is not responsible for damages or warranty replacements resulting from leaks.
Certification Dependency: When using hazardous area certification, installation must be performed in accordance with the documented drawings.
