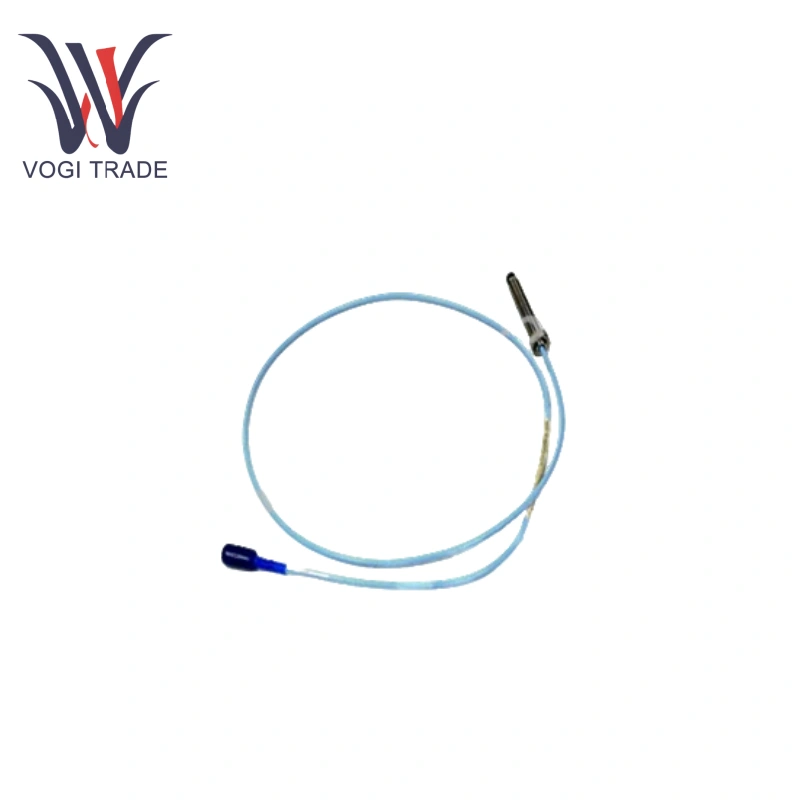

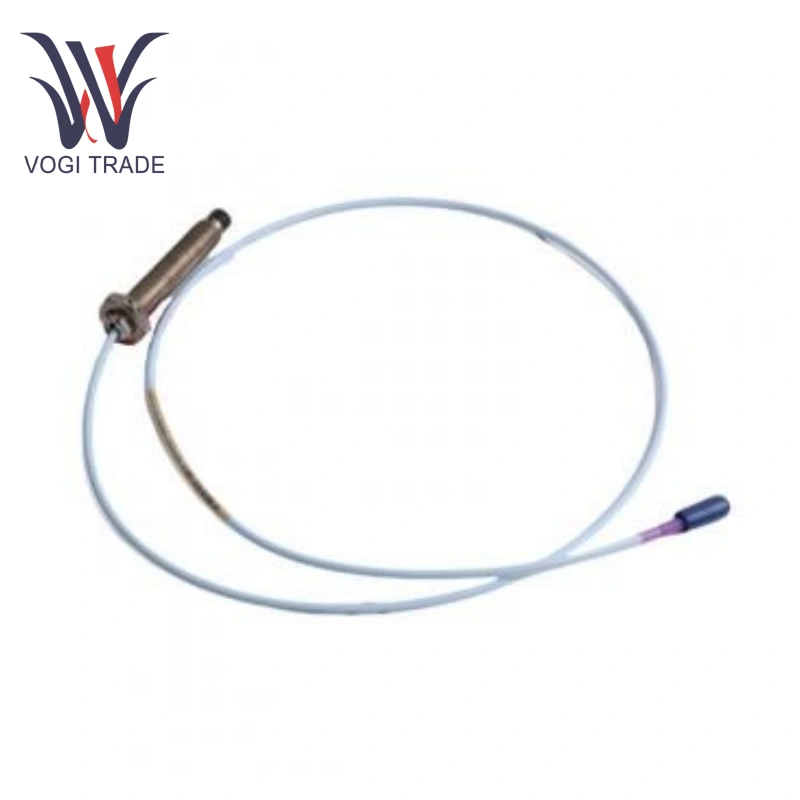

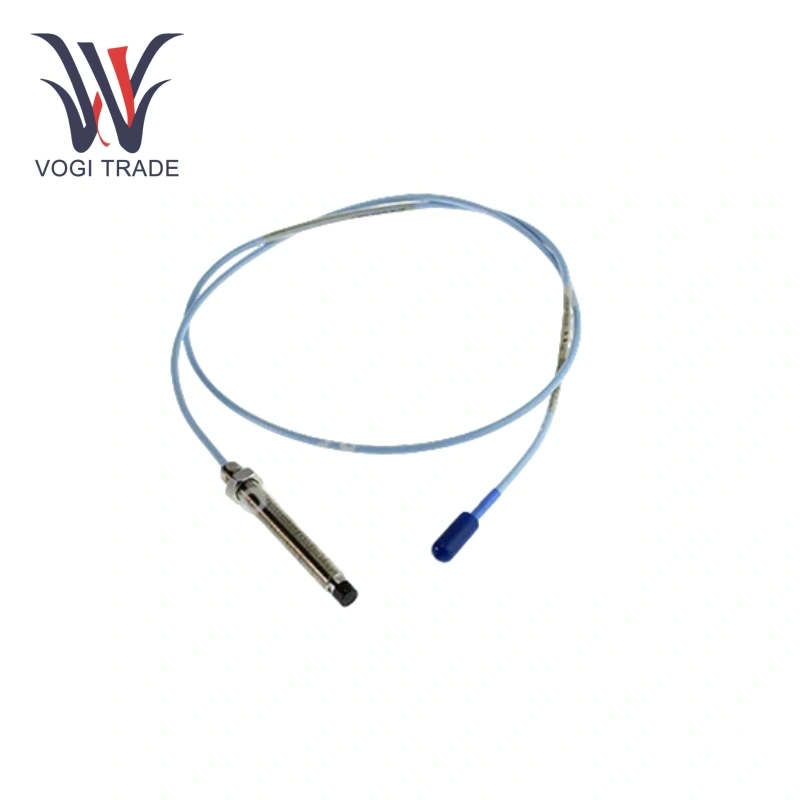

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 Proximity Probe is part of the 3300 XL 11 mm proximity sensor system and consists of a probe, extension cable, and proximity sensor. The system uses the eddy current principle for non-contact measurement.
|
Manufacture |
Bently Nevada |
|
Model Number |
330703-000-040-10-12-00 |
|
Ordering Number |
330703-000-040-10-12-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
21*23*5CM |
|
Packing Dimension |
25*25*8CM |
|
Weight |
1 kg |
Product Overview
Basic Model: 330703
Material: 304 stainless steel body (unarmored), probe tip: polyphenylene sulfide (PPS).
Thread Specifications: M14 x 1.5 metric thread (standard mounting type). Key Features:
11mm large-diameter probe tip provides 4.0mm linear range (suitable for long-travel measurements).
FluidLoc cable: Oil-resistant design prevents lubricant leakage from the cable interior.
ClickLoc connector: Gold-plated brass with a locking mechanism (220N tensile strength).
Model Breakdown:
330703: Basic model (M14×1.5 thread, no armor).
000: Unthreaded length = 0 mm (fully threaded design).
040: Total case length = 40 mm (suitable for installation in tight spaces).
10: Total cable length = 1.0 meter (standard length).
12: Connector and cable type = FluidLoc cable + ClickLoc connector (without additional protective sleeve).
00: No special certification (default AISI 4140 steel calibration)
Product Features
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 have large 11mm probe tip provides a longer linear measurement range, enabling more comprehensive capture of equipment operating status information.
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 utilizing advanced eddy current measurement technology, it accurately measures minute vibrations and displacement changes.
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 eliminates the wear and damage to the surface of the object being measured associated with contact measurement, while also minimizing additional interference during the measurement process.
Applications
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 used in large rotating equipment such as steam turbines and generators in power plants, this system is used to monitor key parameters such as shaft vibration, shaft displacement, and differential expansion, enabling timely detection of abnormal equipment operation.
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 is also suitable for monitoring the operating status of compressors, pumps, and other equipment in petrochemical plants.
Bently Nevada 330703 - 000 - 040 - 10 - 12 - 00 used in rolling mills, fans, and other equipment in steel plants, this system is used to monitor vibration and displacement, providing a basis for maintenance and overhaul.

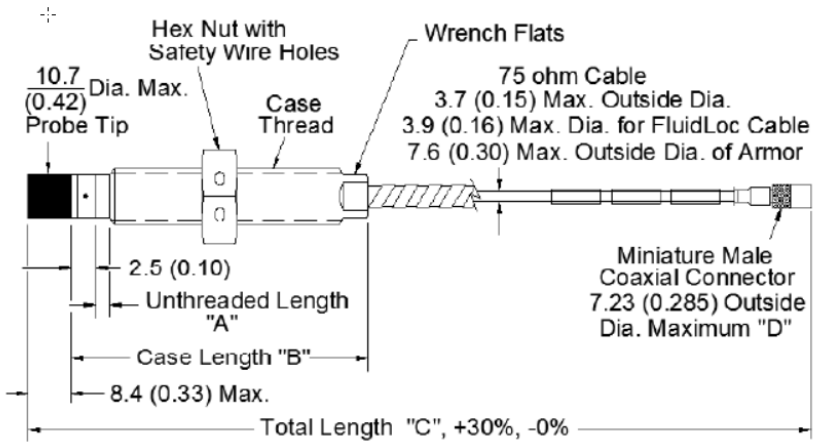

Physical Structure and Diagram
The probe structure is shown in Figure 11 (M14×1.5 thread, unarmored):
Dimensions: Housing length 40mm (Option 040), standard 22mm lock nut.
