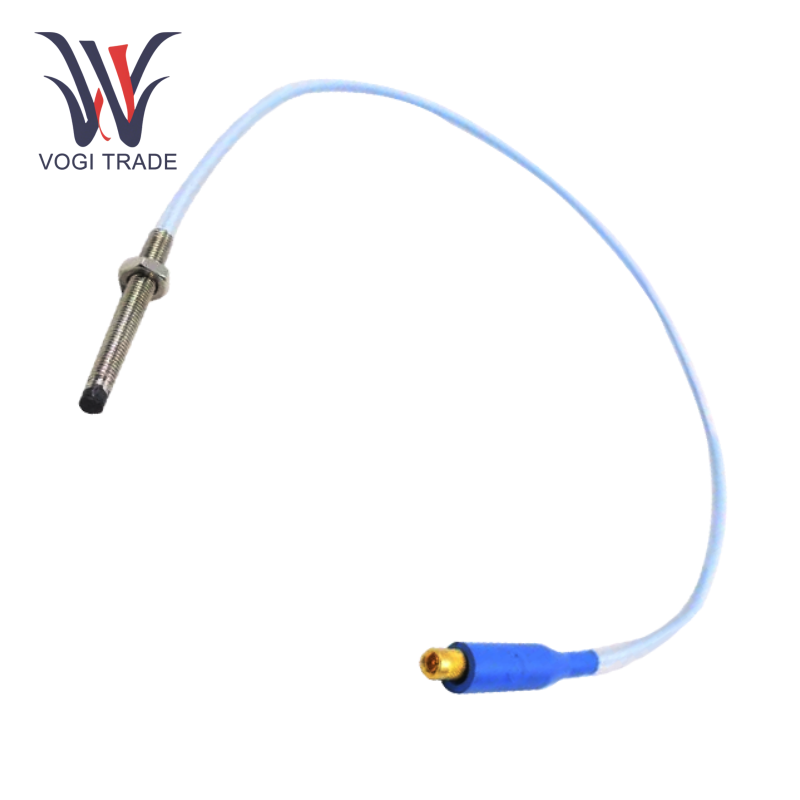

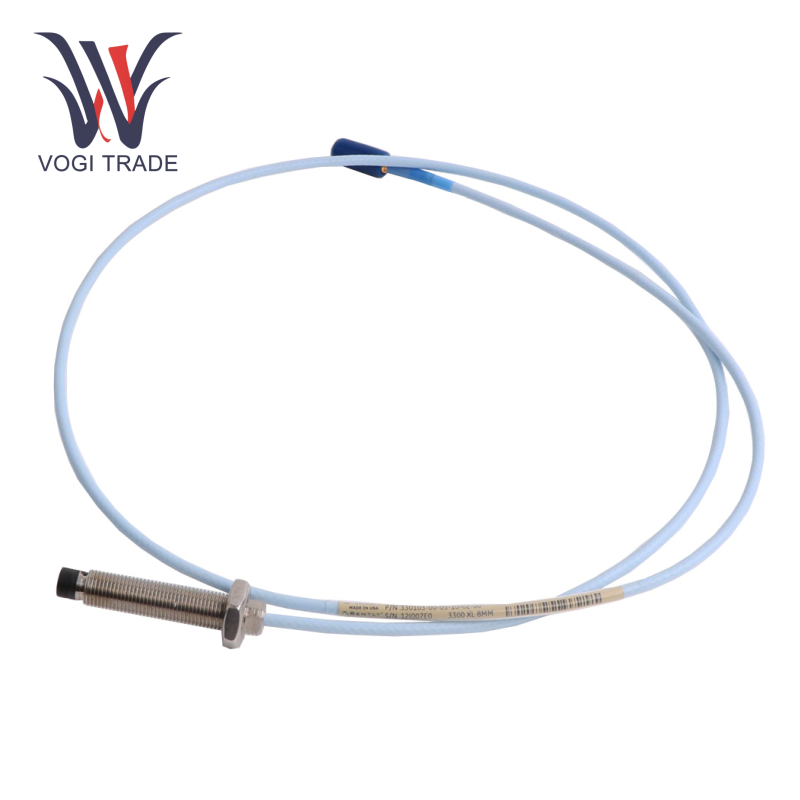

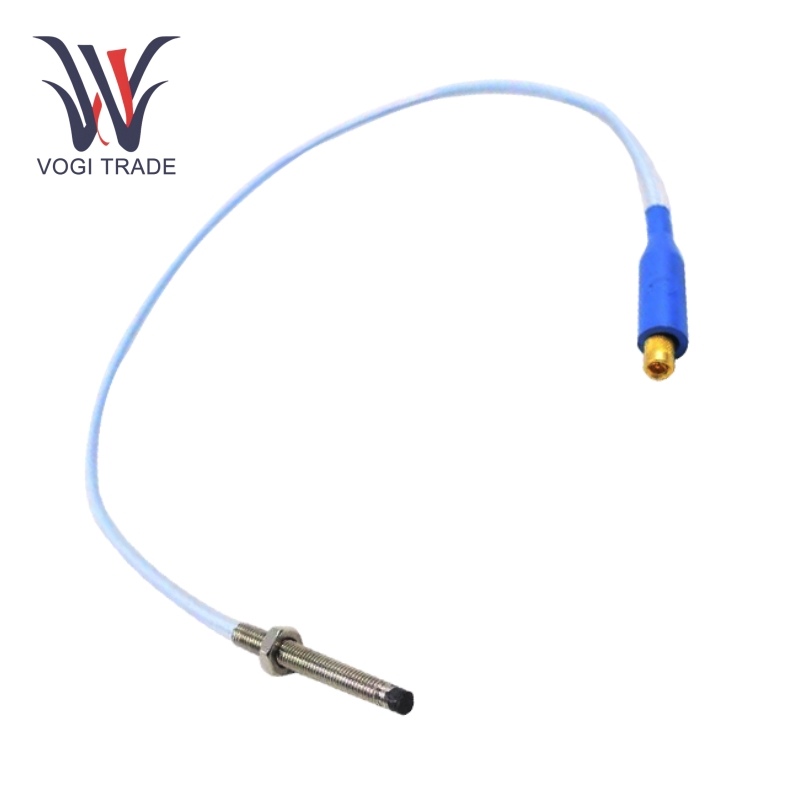

Bently Nevada 330703-000-040-90-02-05

Ordering Number Information

330703-AAA-BBB-CC-DD-EE

330703-000-040-90-02-05

330703: 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor

000(Unthreaded Length): 0mm

040(Overall Case Length): 40mm

90(Total Length): 9.0 meters (29.5 feet)

02(Connector and Cable-Type): Miniature coaxial ClickLoc connector, standard cable

05(Agency Approval): Multiple Approvals

Technical Parameters

Probe diameter: 11 mm, providing a larger linear range (0.25 mm to 2.3 mm) compared to standard 8 mm probes.

Output voltage: 3.94 V/mm (100 mV/mil).

Operating temperature: -40°C to +200°C.

Protection level: IP68 (supported by some models), suitable for high humidity and oily environments.

Functional Features

Large linear range measurement: Bently Nevada 330703-000-040-90-02-05 tip design expands the linear area, suitable for scenarios that require a larger measurement range, such as steam turbine inclined differential expansion, reciprocating compressor piston rod displacement, etc.

High-precision signal output: Based on the eddy current principle, Bently Nevada 330703-000-040-90-02-05 can simultaneously monitor static displacement (shaft position) and dynamic vibration (shaft vibration), with an accuracy of ±1% full scale.

Supporting Components

Extension cable: Need to match 3300 XL 11mm series (such as 330730-040-00-00 or 330730-080-00-00).

Preamplifier: 330780 series (such as 330780-50-05) is recommended, which supports signal conversion and system integration.
