Bently Nevada 330704-000-100-10-01-05

Product Features

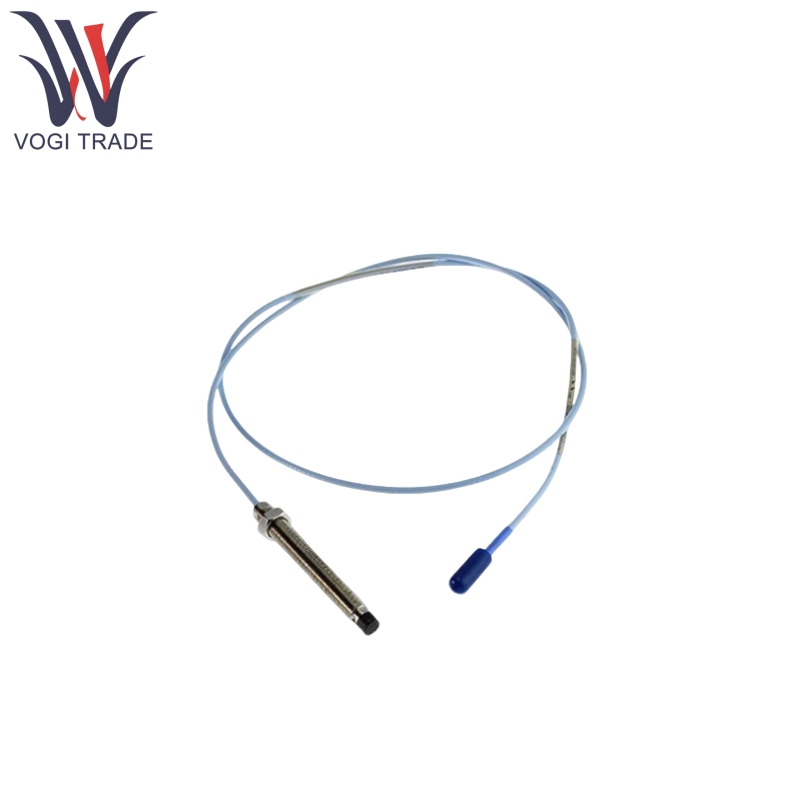

Bently Nevada 330704-000-100-10-01-05 proximity probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications.

Bently Nevada 330704-000-100-10-01-05 proximity probe comes in varying pro be case configurations, including armored and unarmored 1/4-28,3/8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3/8-24 0Ml0Xl threads. All components of the transducer system have gold-plated brass ClickLoc connectors, which lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body.

Product Parameters

Working Principle:

Bently Nevada 330704-000-100-10-01-05 proximity probe generates a high-frequency magnetic field and calculates the clearance distance by detecting eddy current changes on the shaft surface based on the principle of electromagnetic induction.

Typical applications:

Axial/radial displacement monitoring of turbines, compressors, hydraulic turbines and other large rotating machinery, real-time detection of shaft wear, misalignment, oil film oscillation and other faults.

Environmental Adaptability:

Explosion-proof certification (-05 option), suitable for flammable and explosive environments (e.g. petroleum, chemical).

Operating temperature range typically -40°C to +120°C.

Ordering Information
