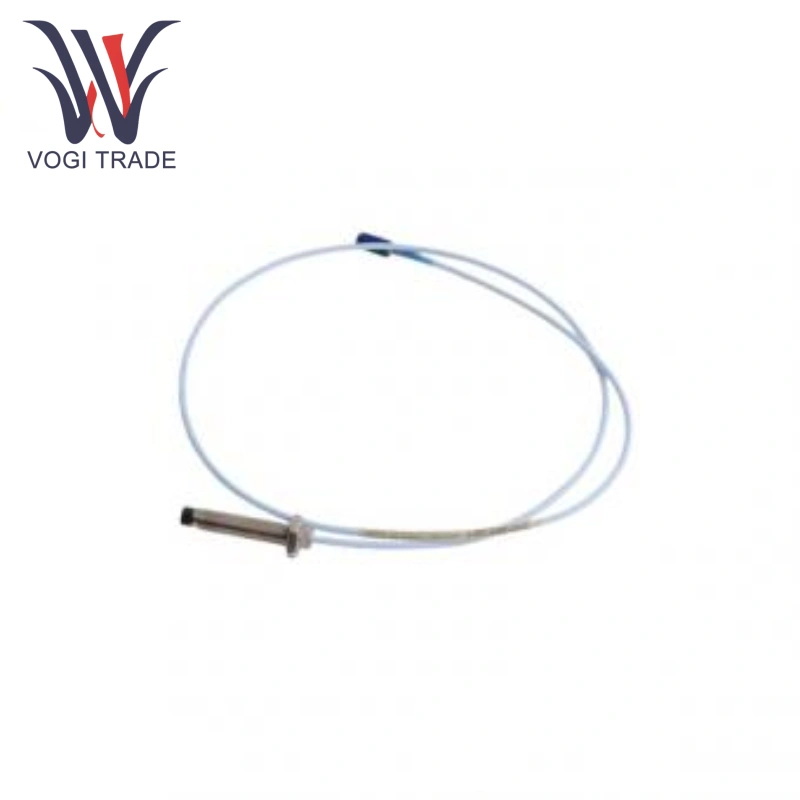

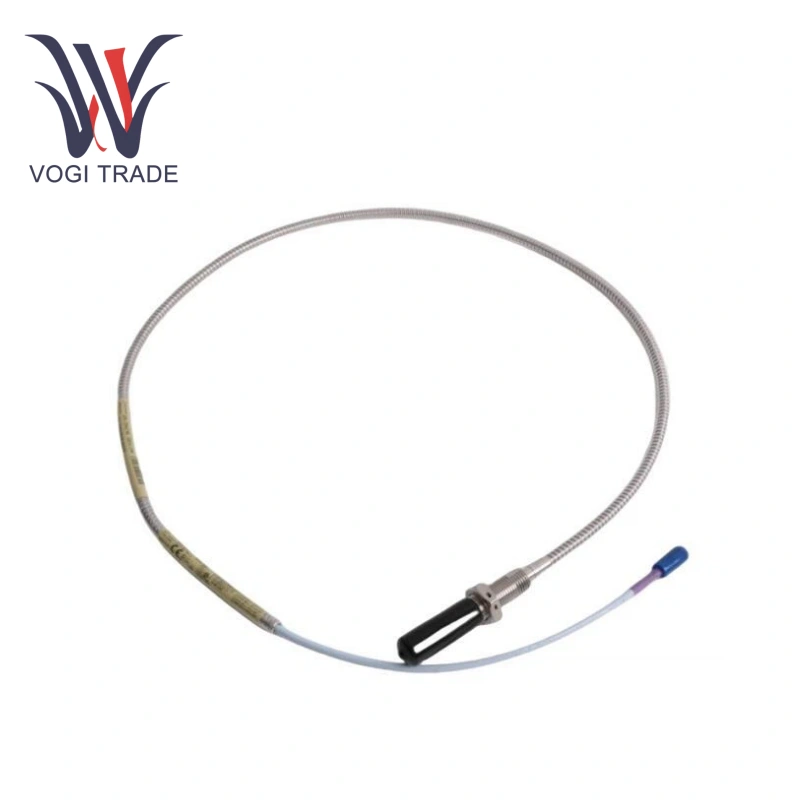

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330704-000-100-10-01-CN is an 11mm eddy-current proximity probe designed for vibration and position monitoring of industrial equipment. It utilizes the eddy current effect to monitor the static position and dynamic vibration of equipment by measuring the change in distance between the probe and the conductive surface being monitored.
|
Manufacture |
Bently Nevada |
|
Model Number |
330704-000-100-10-01-CN |
|
Ordering Number |
330704-000-100-10-01-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.5 kg |
Product Overview
Model: 330704-000-100-10-01-CN
Product Type: 3300 XL 11mm Proximity Probe
Measurement Principle: Eddy Current
Measuring Range: ±2mm (±80mil)
Output Sensitivity: 3.94V/mm (100mV/mil)
Frequency Response: DC to 8kHz
Operating Temperature: -51°C to +177°C
Storage Temperature: -51°C to +177°C
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Housing Material: AISI 304 Stainless Steel
Unthreaded Length: 0mm
Total Probe Housing Length: 100mm
Total Length: 1.0m (3.3ft)
Cable Specifications: 75Ω triaxial, fluorinated ethylene propylene (FEP) insulation
Connector Type: Micro coaxial Click Loc™ connector, standard cable
Product Features
High-Precision Measurement: Bently Nevada 330704-000-100-10-01-CN with an output sensitivity of 3.94V/mm (100mV/mil), it can accurately measure even the smallest changes in equipment vibration or displacement.
Wide Frequency Response: Bently Nevada 330704-000-100-10-01-CN with a DC to 8kHz frequency response range, it effectively monitors equipment vibration under various operating conditions.
Strong Environmental Adaptability: Bently Nevada 330704-000-100-10-01-CN use the stainless steel housing and PPS probe tip withstand harsh industrial environments with high temperature, high humidity, dust, and chemical corrosion.
Applications
Petrochemical: Bently Nevada 330704-000-100-10-01-CN is suitable for critical equipment such as compressors and pumps, monitoring vibration and position changes during operation to promptly detect potential equipment failures.
Industrial Manufacturing: Bently Nevada 330704-000-100-10-01-CN can be installed on equipment such as motors and machine tools to optimize equipment operating parameters by monitoring vibration and displacement.
Installation Notes
Thread Engagement Limitations:
Maximum engagement length for M14×1.5 threads: 21mm (exceeding this may cause seizure and void the warranty).
Torque Requirements:
Recommended installation torque: 21.1 N·m (187 in·lb).
Maximum torque: 63.3 N·m (560 in·lb).
Bend Radius: Minimum 25.4mm (1.0in) to avoid cable damage.
Cross-Interference Suppression:
Minimum target diameter: 30.5mm (1.2in).
For radial vibration measurements, ensure the probe spacing is ≥ 58mm (2.3in).
