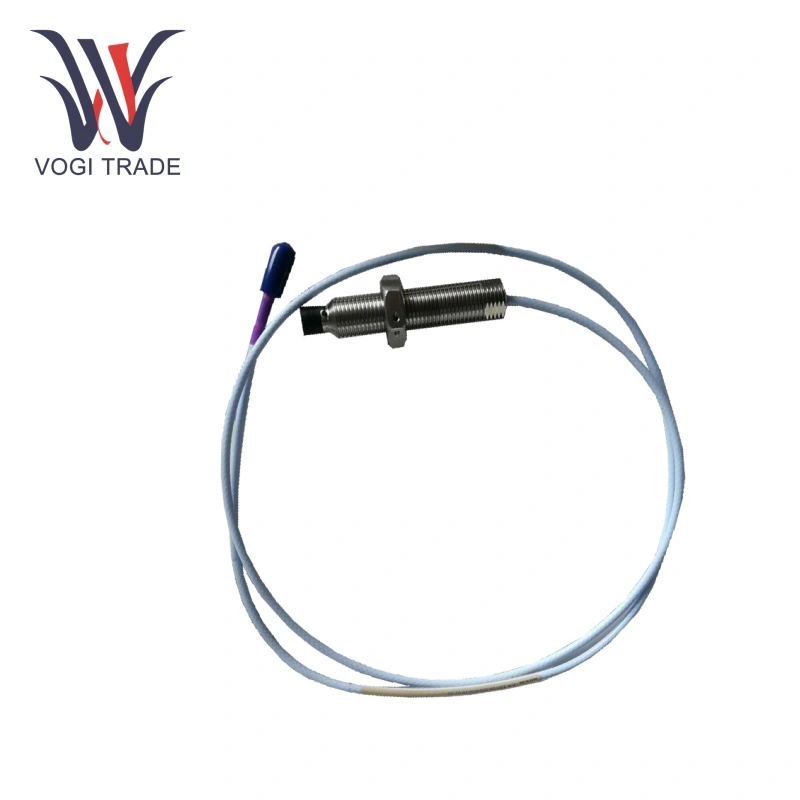

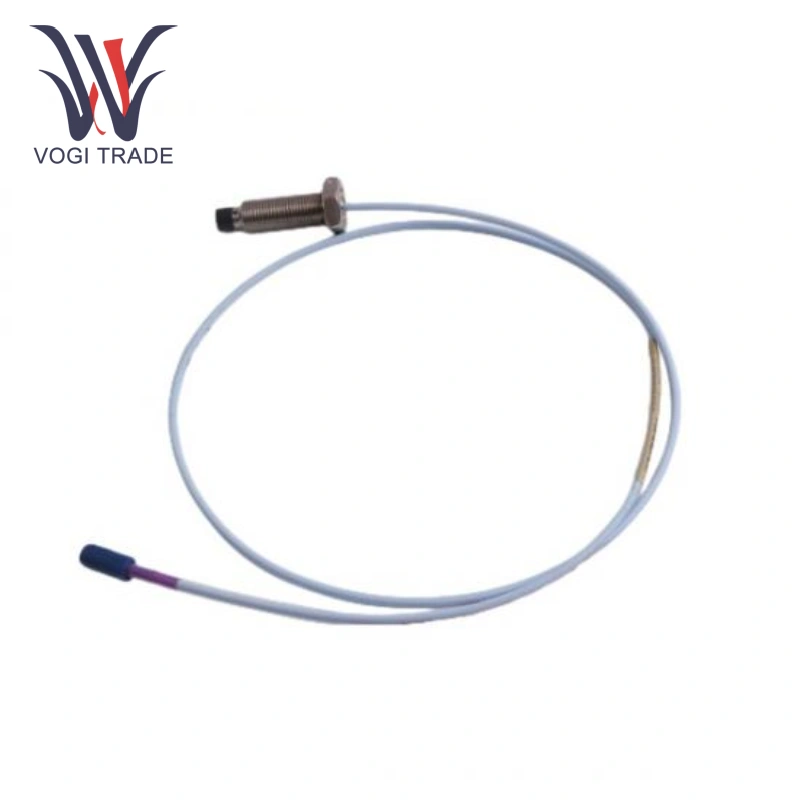

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330709-000-050-10-02-CN is an 8mm proximity probe from the 3300 XL series, designed for precise vibration and displacement measurements of rotating machinery. The probe system consists of a 3300 XL 8mm probe, an extension cable, and a 3300 XL Proximitor Sensor.
|
Manufacture |
Bently Nevada |
|
Model Number |
330709-000-050-10-02-CN |
|
Ordering Number |
330709-000-050-10-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.5 kg |
Product Overview
Linear Range and Accuracy: Linear range is 4.0 mm (160 mils), starting at 0.5 mm (20 mils), with an output scale factor of 3.94 V/mm (100 mV/mil) ±10%. Compared to the standard 8 mm system, the 11 mm probe offers a longer linear range, suitable for high-precision displacement measurements.
Frequency Response: 0 to 8 kHz (+0, -3 dB typical), supporting high-frequency vibration monitoring.
Material and Durability:
Probe Tip: PPS material, high-temperature resistant.
Housing: AISI 304 stainless steel, corrosion-resistant.
Cable: 75Ω triaxial, FEP insulated, standard length 1.0 meter.
Connector System: ClickLoc connectors ensure a secure connection without the risk of loosening. However, this model (DD=02) does not include a connector protector. The documentation recommends using a protector or silicone tape (accessory 40180-02 or 03200006) in humid environments. Interchangeability and Calibration: Factory calibrated to AISI 4140 steel; custom calibration is required for other materials. System accuracy is guaranteed under specified conditions (0°C to +45°C, target diameter ≥ 31 mm).
Weight and Dimensions: Typical weight is approximately 70g (unarmored, 1m cable), and the housing is 50mm long, facilitating compact installation.

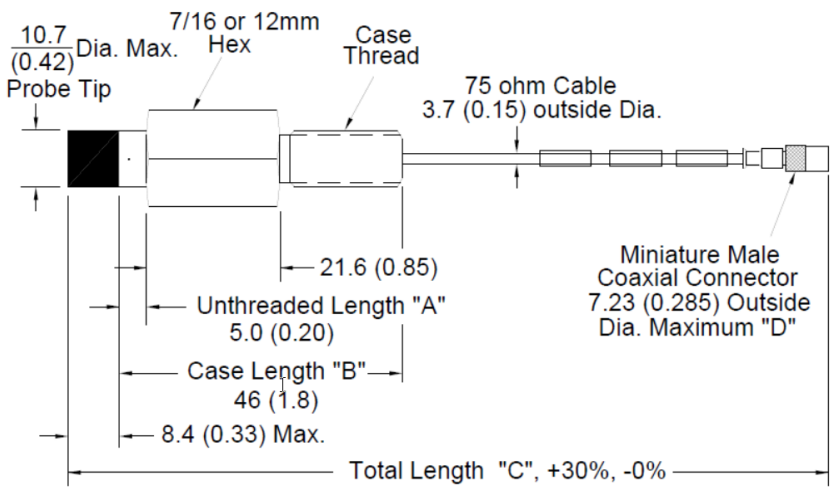

The probe is shown in the figure, with the 330709 corresponding to the unarmored M16x1.5 version:
Product Features
Adaptable to Harsh Environments: Bently Nevada 330709-000-050-10-02-CN operates stably in a wide temperature range of -52°C to +177°C. Its stainless steel housing provides excellent dust and splash resistance, making it suitable for a wide range of complex industrial scenarios.
Excellent Compatibility: Bently Nevada 330709-000-050-10-02-CN components are backwards compatible and interchangeable with other non-XL 3300 series 5mm and 8mm sensor systems, facilitating device upgrades and maintenance.
High Protection Rating: Bently Nevada 330709-000-050-10-02-CN can meets high protection standards, such as IP68, effectively blocking dust and water intrusion, ensuring reliable operation even in harsh environments.
Applications
Petrochemical: Bently Nevada 330709-000-050-10-02-CN can be installed on key equipment such as compressors and pumps to monitor vibration and position changes during operation in real time, promptly identifying potential equipment failures such as seal failure and bearing wear.
Industrial Manufacturing: Bently Nevada 330709-000-050-10-02-CN is suitable for equipment such as motors, machine tools, and fans. By monitoring vibration and displacement, it optimizes equipment operating parameters and prevents damage caused by vibration.
