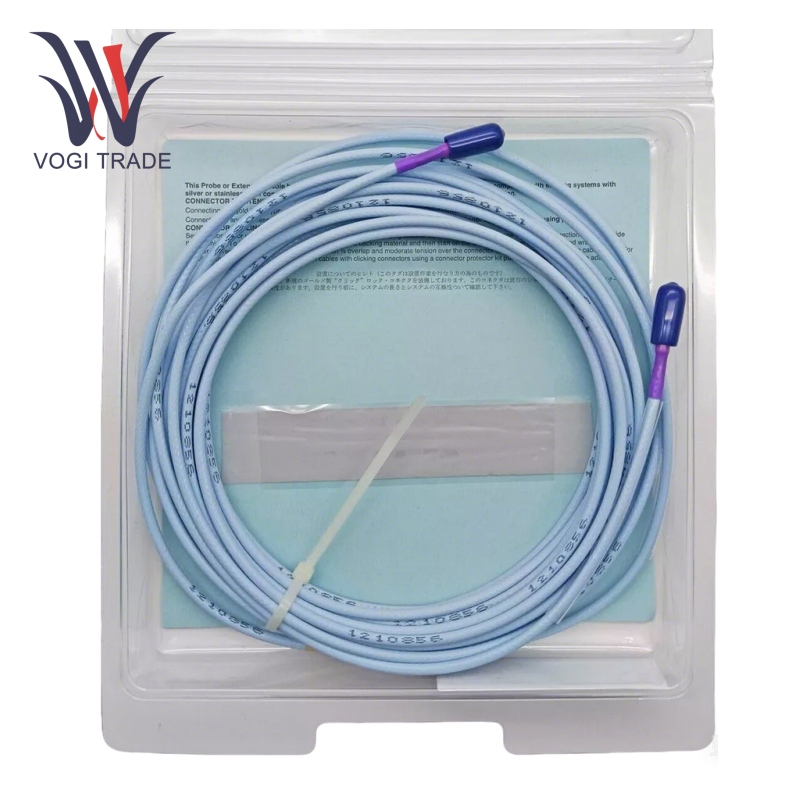

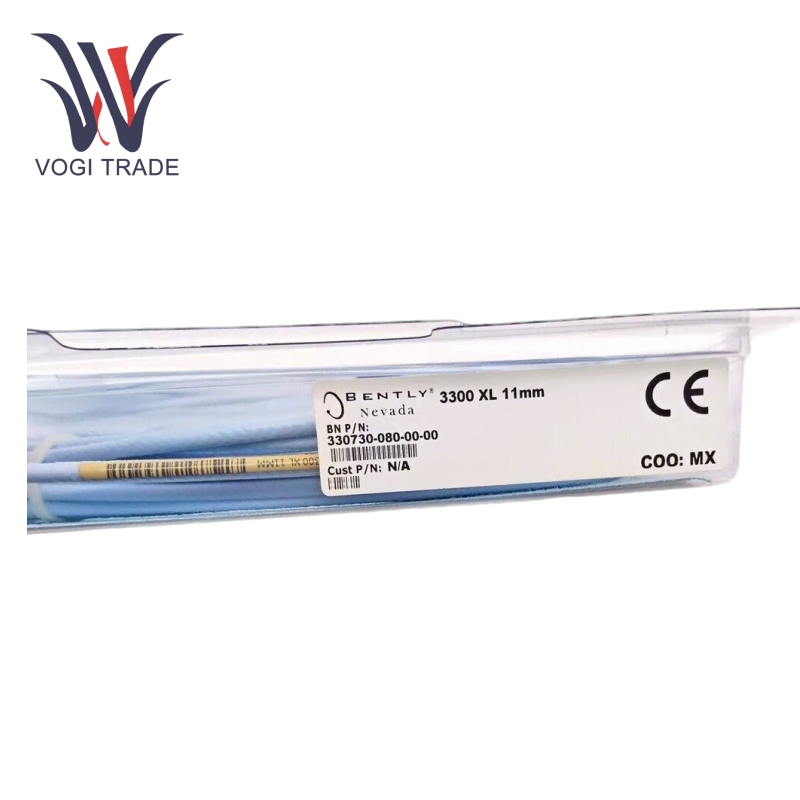

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330730-080-00-00 is a high performance 3300 XL 11mm extension cable designed for industrial machinery vibration monitoring systems.
|
Manufacture |
Bently Nevada |
|
Model Number |
330730-080-00-00 |
|
Ordering Number |
330730-080-00-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9026801000 |
|
Dimension |
25*25*5CM |
|
Packing Dimension |
27*27*7CM |
|
Weight |
0.5kg |
330730-AAA-BB-CC
330730-080-00-00
330730: 3300 XL 11 mm Extension Cable
080(Cable Length): 8.0 meters (26.2 feet)
00(Connector and Cable): Standard cable
00(Agency Approval): Not required
Technical Parameters
Tensile force: 330N (75 pounds), CableLoc® technology is used to achieve a firm connection between the cable and the probe.
Protection level: IP68, sealed housing, suitable for high humidity and oily environments.
Operating temperature range: -54°C to 121°C.
Relative humidity: Supports 100% non-immersion environment.
Certification: CE-compliant, with enhanced RFI/EMI anti-interference capabilities.
Features
High-precision signal transmission: 3.94 V/mm (100 mV/mil) output, Bently Nevada 330730-080-00-00
supports long linear range measurement, and ensures the accuracy of vibration and displacement data.
Modular design: Thin structure adapts to high-density DIN rail or traditional panel installation, saving space.
Compatible with 3300 XL series probes and preamplifiers, supporting system upgrades (such as replacing 7200 series sensor systems).
Reliability and safety: FluidLoc® option effectively prevents oil leakage and is suitable for lubrication systems or easily contaminated environments.
Compatibility and System Integration
Supporting components: Bently Nevada 330730-080-00-00 requires use with 3300 XL series probes (such as 8mm or 11mm eddy current probes) and preamplifiers.
Monitoring system requirements: If using the 3500 monitoring system, the software version needs to be updated to support the configuration of the 3300 XL 11mm component.
