Bently Nevada 330750-80-05

Product Overview

Product Overview

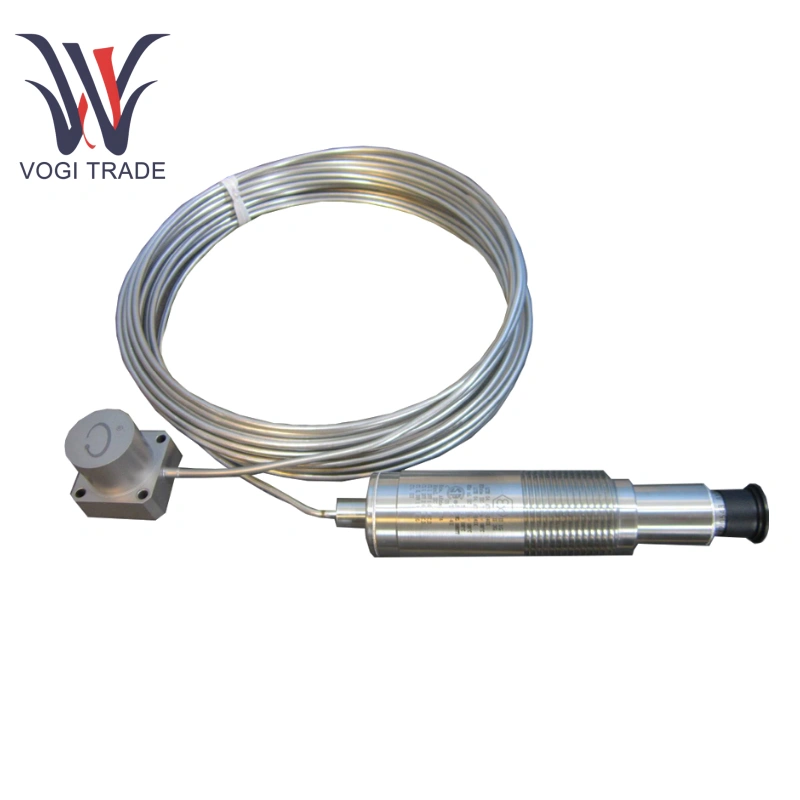

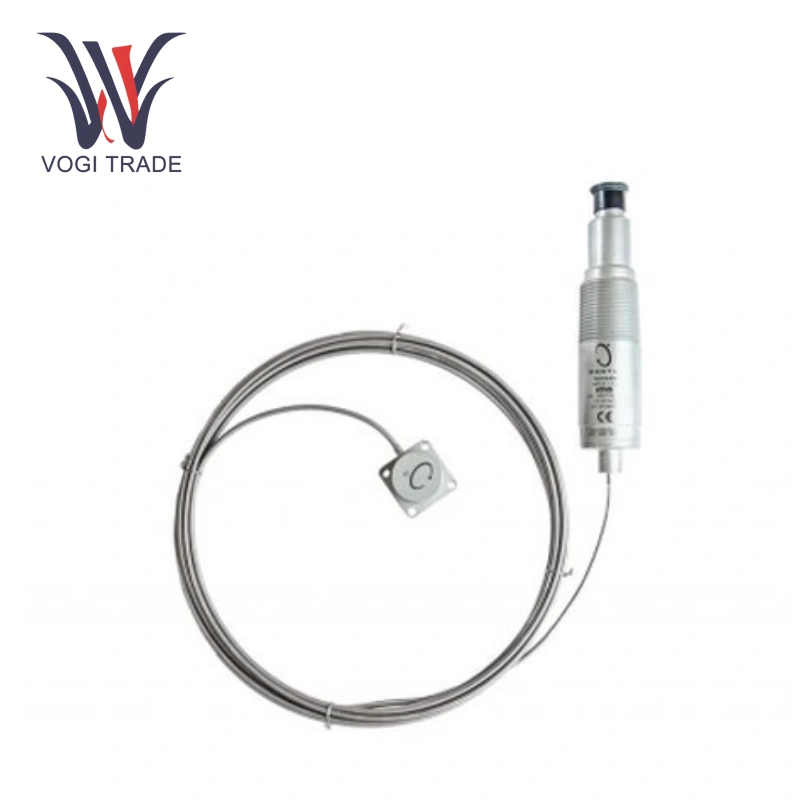

Model: 330750-80-05

Product Type: High-Temperature Piezoelectric Velocimeter System (HTVS)

Measurement Principle: Piezoelectric Effect

Core Performance: Sensitivity 5.7mV/mm/s (145mV/in/s) ±5% (at 100Hz), Amplitude Range 635mm/s (25in/s) Peak (<680Hz)

Frequency Response: 15Hz-2kHz (±3.0dB), 20Hz-1kHz (±0.9dB)

Temperature Resistance: Sensing tip up to +300°C (+572°F), electronics up to +100°C (+212°F)

Cable Configuration: 5m rigid cable, permanently integrated, connector-free design

Explosion-Proof Certifications: CSA/NRTL/C Exia (Class I, Division 1, Groups A-D, etc.), EEx ia (Zone 0, IIC (Requires a certified Zener barrier)

Power supply: -24VDC ±10%

Output signal: A voltage proportional to the vibration velocity, suitable for connection to a mechanical protection system

Product Features

Excellent High-Temperature Performance: Bently Nevada 330750-80-05 with the unique design allows the probe to withstand temperatures up to +400°C, overcoming the limitations of conventional sensors in high-temperature environments. It is suitable for vibration monitoring of equipment near high-temperature furnaces and heat exchangers.

Accurate Measurement: Bently Nevada 330750-80-05 the sensitivity reaches 5.7mV/mm/s ±5%, and linearity is ±2% within a peak value of 152mm/s, accurately capturing changes in equipment vibration.

Wide Frequency Response: Bently Nevada 330750-80-05 with the 15Hz to 2000Hz frequency range covers the vibration frequencies of most industrial equipment.

Applications

Petrochemical: Bently Nevada 330750-80-05 is used for vibration monitoring of high-temperature reactors, cracking furnaces, and other equipment, promptly detecting structural deformation or loose components caused by high temperature and high pressure.

Energy and Power: Bently Nevada 330750-80-05 is used for monitors the vibration of steam turbines and generators operating at high temperatures to prevent equipment failures caused by abnormal vibration.

Steel and Metallurgy: Bently Nevada 330750-80-05 is used for installed on high-temperature blast furnaces, converters, and other equipment, it provides real-time monitoring of equipment vibration status and provides data support for equipment maintenance.

Installation Requirements

Location Requirements: The sensor must be mounted on the bearing housing or machine casing. Improper installation may result in reduced amplitude and frequency response or produce erroneous signals that do not represent actual vibration.

High Temperature Precautions: In environments exceeding +400°C, ensure the electronics are away from heat sources (e.g., in areas below +100°C). Secure the cable to prevent bending or mechanical damage.

Professional Support: Bently Nevada provides engineering services to assist with measurement and installation.

Cable Installation: For the 80-foot cable of the 330750-80-05, plan the route to avoid interference.

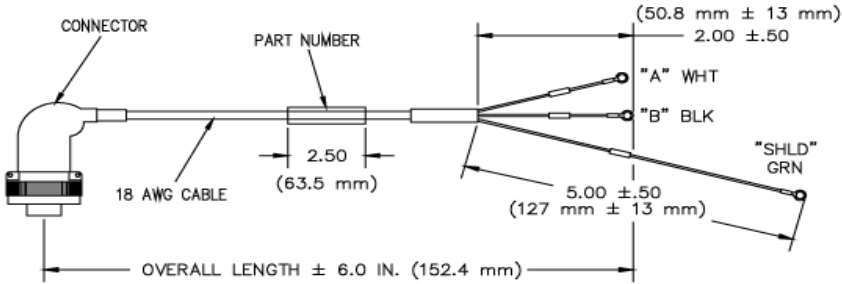

Right-angle interconnect cables:
