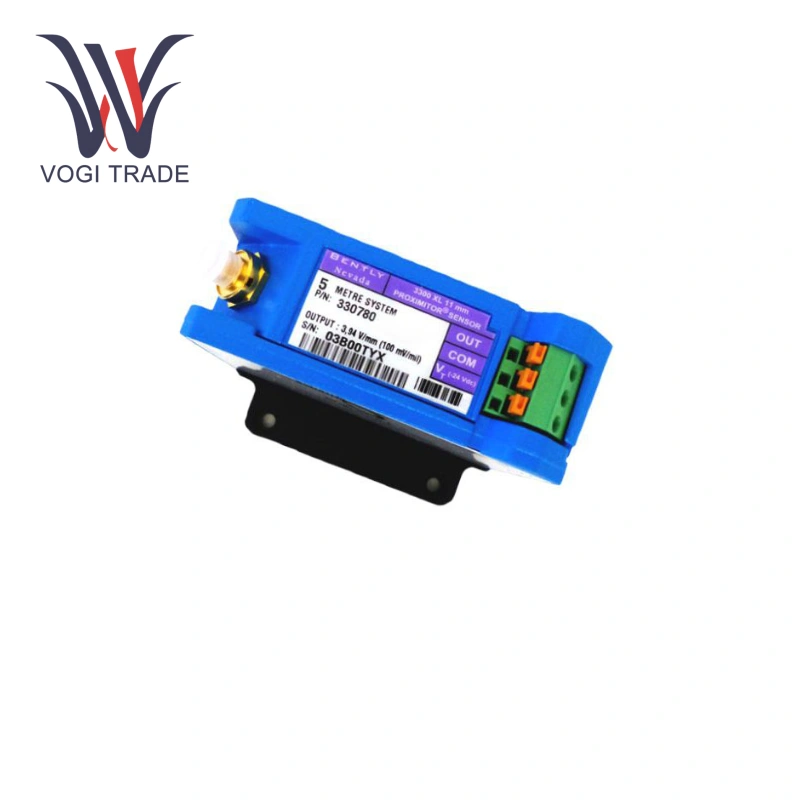

Brand: Bently Nevada Description: Proximitor Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330780 - 51 - CN, part of the 3300 XL 11mm Proximitor Sensor, is a non-contact eddy-current displacement sensor designed for industrial vibration monitoring applications. With a total system length of 5.0 meters (16.4 feet) and DIN rail mounting, it fits comfortably into any industrial equipment layout.
|
Manufacture |
Bently Nevada |
|
Model Number |
330780-51-CN |
|
Ordering Number |
330780-51-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2.5 kg |
Product Overview
Sensor Type: Eddy-Current Displacement Sensor
System Length and Mounting: 5.0 m (16.4 ft) system length, DIN rail mount
Target Distance Measurement Range: 0.025 to 11 mm (0.001 to 0.433 in)
Linearity: ±0.5% full scale
Resolution: 1 μm
Frequency Response: DC to 10 kHz
Operating Temperature Range: -35°C to +85°C
Storage Temperature Range: -51°C to +100°C
Relative Humidity: 100% condensing, non-submersible with connector shield in place, tested to IEC 68-2-3 for damp heat
Product Features
Accurate Measurement: Bently Nevada 330780 - 51 - CN with high linearity and resolution enable precise measurement of static displacement and dynamic vibration.
Easy Installation: Bently Nevada 330780 - 51 - CN with standard DIN rail mounting allows for easy installation and quick fixation within the equipment monitoring system.
Strong Environmental Adaptability: Bently Nevada 330780 - 51 - CN with a wide operating temperature range and an aluminum alloy housing provide excellent protection, ensuring stable operation in complex industrial environments such as high temperatures, dust, and humidity.
Applications
Power Industry: Bently Nevada 330780 - 51 - CN used for vibration and displacement monitoring of equipment such as steam turbines and generators.
Petrochemical Industry: Bently Nevada 330780 - 51 - CN is suitable for compressors, pumps, and other equipment, accurately measuring vibration and displacement parameters to provide real-time visibility into equipment operating status.
Industrial Manufacturing: Bently Nevada 330780 - 51 - CN used on motors, machine tools, and other equipment to monitor vibration and optimize operating parameters.
Note
Compatibility: This sensor is designed for connection only to monitoring systems and associated equipment related to the 3300 XL Series. Do not connect it to incompatible equipment to avoid damage to the sensor or system failure. Before connecting a new monitoring system, confirm system compatibility with the sensor.
