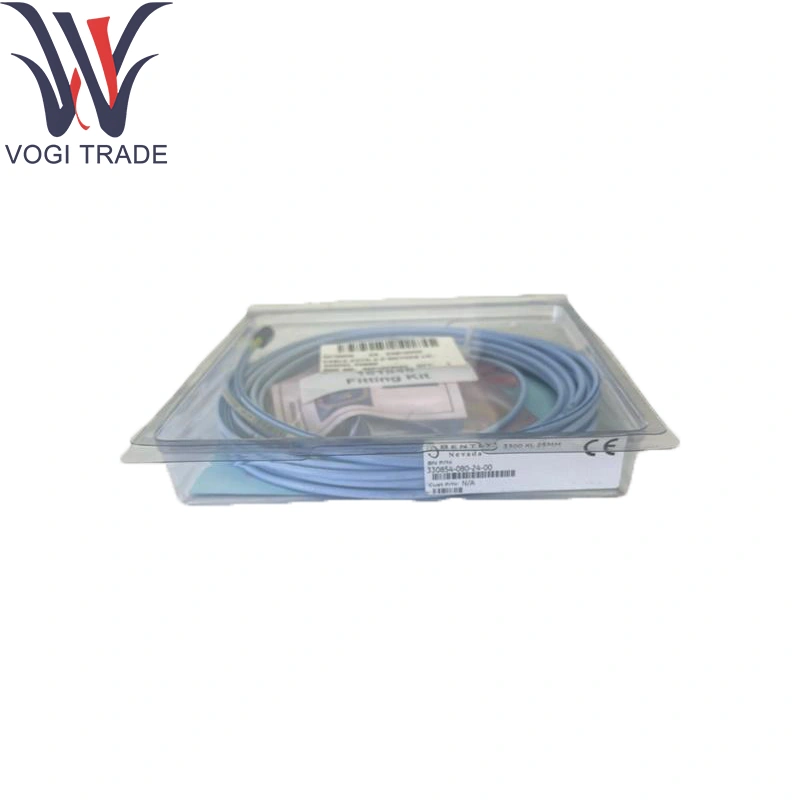

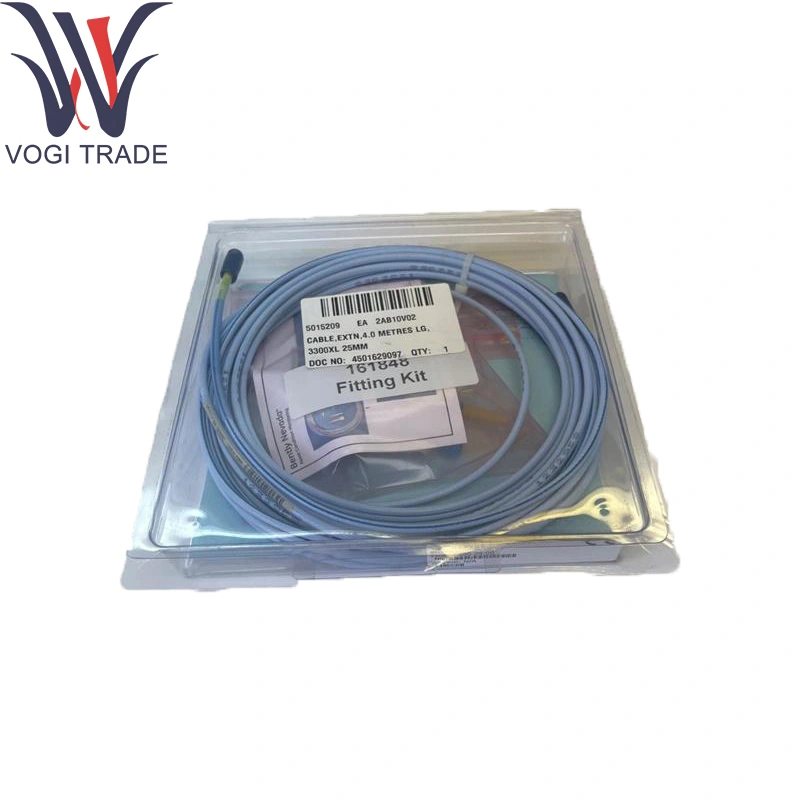

Brand: Bently Nevada Description: 330854-080-24-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 9 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330854-080-24-00 Provides a short, robust connection between proximity probes or vibration transducers and nearby monitor modules in compact or tight-space installations.
|
Manufacture |
Bently Nevada |
|
Model Number |
330854-080-24-00 |
|
Ordering Number |
330854-080-24-00 |
|
Catalog |
3300 XL 25 mm |
|
Description |
Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
22*20*3 (CM) |
|
Weight |
1.12 kg |
Ordering Information
330854-AAA-BB-CC
A: Cable Length Option
0 4 0 4.0 metres (13.1 feet)
0 8 0 8.0 metres (26.2 feet)
B: Armor and Cable Option
2 4
High Temperature FluidLoc
cable
2 5
Armored High Temperature
FluidLoc cable
C: Agency Approval Option
0 0 No Approvals
0 5 Multiple Approvals
Technical Parameters
Impedance: 50 Ω ± 5 Ω for the Bently Nevada 330854-080-24-00
Capacitance: ≤ 100 pF/m between conductors
Shielding: Overall braided tinned-copper shield (≥ 95% coverage) with drain wire in Bently Nevada 330854-080-24-00
Conductor: 26 AWG, 7 × 36 tinned-copper strands per conductor
Voltage Rating: 300 V AC max (insulation)
Temperature Rating: –40 °C to +125 °C
Connector Contacts: Gold-plated, nickel-plated shell of Bently Nevada 330854-080-24-00
EMC: Meets EN 55011 Class A immunity
Product function
Delivers a low-noise, impedance-matched link through Bently Nevada 330854-080-24-00 for proximity or accelerometer signals over short distances. The compact length and flexible construction simplify panel wiring and maintain high-fidelity signal transmission for accurate vibration and position monitoring.
Core Supporting Modules
Monitor Modules: Bently Nevada 2300/20-00, 3701/60, or 3500/22 conditioning and monitoring cards for Bently Nevada 330854-080-24-00
Probes/Transducers: 3300 XL eddy-current probes or 3300 XL accelerometers
Rack Chassis: 2300/00, 3500/00, or 3701/00 series backplanes providing excitation and data bus interfaces
Accessories: Cable-protect boots, strain-relief clamps, and junction-box mounting hardware compatible with Bently Nevada 330854-080-24-00
