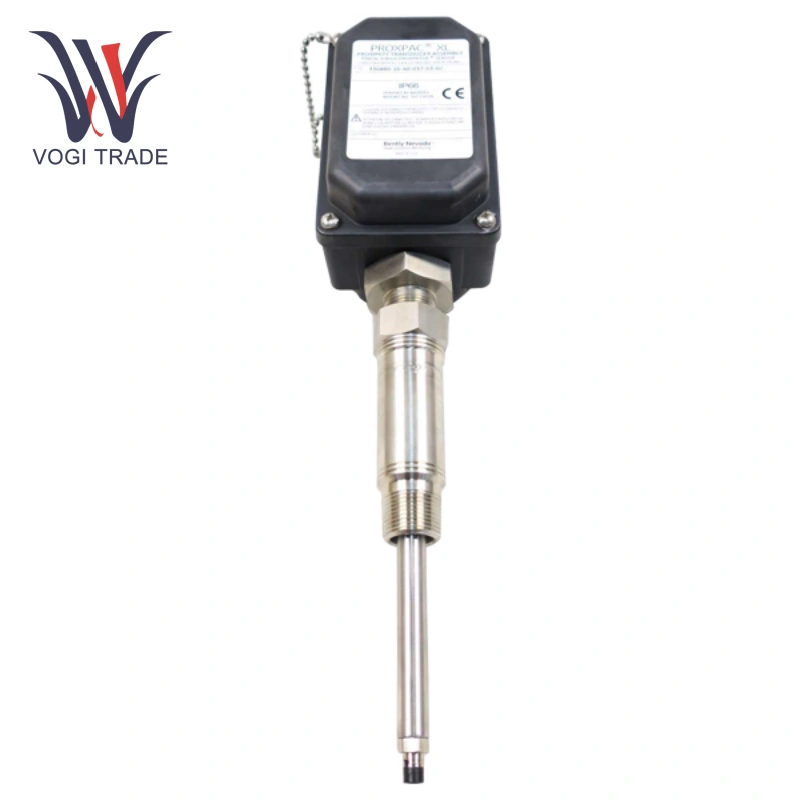

Brand: Bently Nevada Description: PROXPAC XL Proximity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330880-16-00-039-03-02 PROXPAC XL Proximity Transducer is a highly integrated proximity sensor transmitter assembly. It combines the high-performance 3300 XL 8 mm probe and the Proximitor sensor in a rugged housing made of UV-resistant, glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fiber and IP66 and Type 4X protection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330880-16-00-039-03-02 |
|
Ordering Number |
330880-16-00-039-03-02 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2.5 kg |
Product Overview
Product Type: PROXPAC XL Proximity Sensor Transmitter Assembly
Probe Type: Integral 3300 XL 8 mm Probe
Probe Certification Options: 16 - 3300 XL 8 mm Probe, No Certification
Bracket Adapter Options: 00 - No Bracket Adapter
Probe Insertion Length (C Dimension): 039 - 3.9 inches
Connector Options: 03 - With 1/2 - 14 NPTF Female Connector
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Housing Material: AISI 304 Stainless Steel
Housing Material: UV-resistant, glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fiber
Enclosure Rating: IP66 and Type 4X
System Linear Range: 2 mm (80 mils) typical (same performance as a standard 8 mm probe)
System Sensitivity: 7.87 V/mm (200 mV/mil) typical (same performance as a standard 8 mm probe) (Probe performance consistent)
Operating temperature range: Probe: -35°C to +200°C (-31°F to +392°F); Sensor/housing: -52°C to +100°C (-62°F to +212°F)
Power requirements: -17.5Vdc to -26Vdc
Product Features
Easy Installation: Bently Nevada 330880-16-00-039-03-02 use integrated design eliminates the need for extension cables, making it ideal for space-constrained environments.
Excellent Protection: Bently Nevada 330880-16-00-039-03-02 use corrosion-resistant and UV-resistant PPS housing ensures long-term stable operation in harsh industrial environments.
Precise Monitoring: Bently Nevada 330880-16-00-039-03-02 integrating proven 3300 XL 8 mm probe technology, it delivers a highly accurate and stable voltage signal proportional to distance.
Applications
Turbomachinery: Bently Nevada 330880-16-00-039-03-02 used for steam turbines, gas turbines, and hydro turbines monitor bearing vibration and rotor axial position.
Compressors: Bently Nevada 330880-16-00-039-03-02 used for centrifugal and reciprocating compressors monitor shaft vibration, piston rod displacement, and speed.
Pumps and fans: Bently Nevada 330880-16-00-039-03-02 used for monitor bearing vibration and shaft position to ensure smooth equipment operation.
Generators: Bently Nevada 330880-16-00-039-03-02 used for monitor bearing vibration and axial displacement to prevent friction with the stator.
