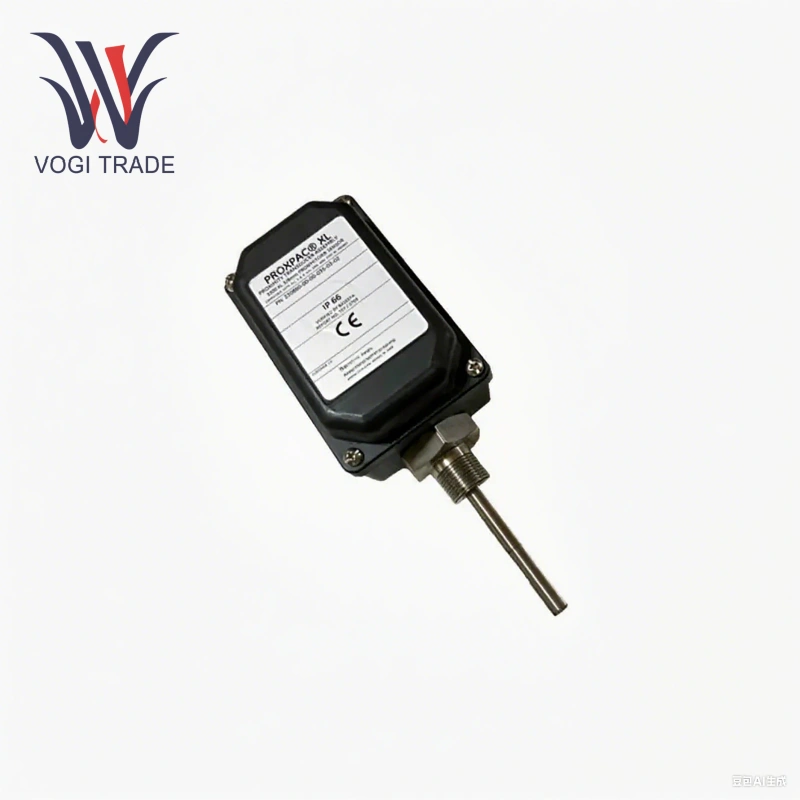

Brand: Bently Nevada Description: PROXPAC XL Proximity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330881-28-10-087-03-02 PROXPAC XL Proximity Transducer is a highly integrated proximity sensor transmitter assembly. It combines the 3300 XL 8mm probe and Proximitor sensor in a single rugged housing, eliminating the need for an extension cable between the probe and sensor.
|
Manufacture |
Bently Nevada |
|
Model Number |
330881-28-10-087-03-02 |
|
Ordering Number |
330881-28-10-087-03-02 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2.5 kg |
Product Overview
Model: 330881 -PROXPAC XL Proximity Transducer, Metric
28 -Probe and Approvals Option: 3300 XL 8 mm probe with Multiple Approvals10-Standoff Adapter Option (B Dimension):100 mm
087-Probe Penetration Option (c Dimension): 87 mm
03-Fittings Option: One M20 fitting, two plugs
02- Mounting Thread Option: 3/4-14 NPT (required if ordering Standoff Adapter Option)
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltageOutput Resistance:50 ohm
Operating Temperature Range:-51 °c to +177 °C(-60 °F to +350 °F)
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Case Material: AlSl 304 Stainless Steel
Probe Cable:1-metre length, 75 ohm triaxial, FEP (Fluoroethylene Propylene) insulated
Product Features
Bently Nevada 330881-28-10-087-03-02 used PPS thermoplastic housing is corrosion-resistant and UV-resistant, providing a high degree of protection against dust, moisture, corrosive media, and flushing water.
Bently Nevada 330881-28-10-087-03-02 with multiple international explosion-proof certifications, it can be safely used in hazardous areas worldwide, such as refineries and chemical plants.
Bently Nevada 330881-28-10-087-03-02 integrating the proven 3300 XL 8mm probe technology, it provides high-precision, high-stability non-contact vibration and shaft position measurement.
Applications
Petrochemical: Bently Nevada 330881-28-10-087-03-02 used in compressors, pumps, turbines, and other equipment to monitor vibration and shaft position in flammable, explosive, and highly corrosive environments.
Power Industry: Bently Nevada 330881-28-10-087-03-02 used in monitor bearing vibration and rotor axial position in gas turbines, steam turbines, and generators to prevent equipment failure.
Manufacturing: Bently Nevada 330881-28-10-087-03-02 used in condition monitoring of various rotating machinery, such as motors, fans, and machine tools, helps companies perform preventive maintenance.
Note
Maintenance: Disconnect power before maintenance. Use only genuine parts to ensure compatibility and performance.
Hazardous Area Use: Strictly follow relevant explosion-proof safety regulations when operating in hazardous areas. Any unauthorized operation that may cause harm is strictly prohibited.
