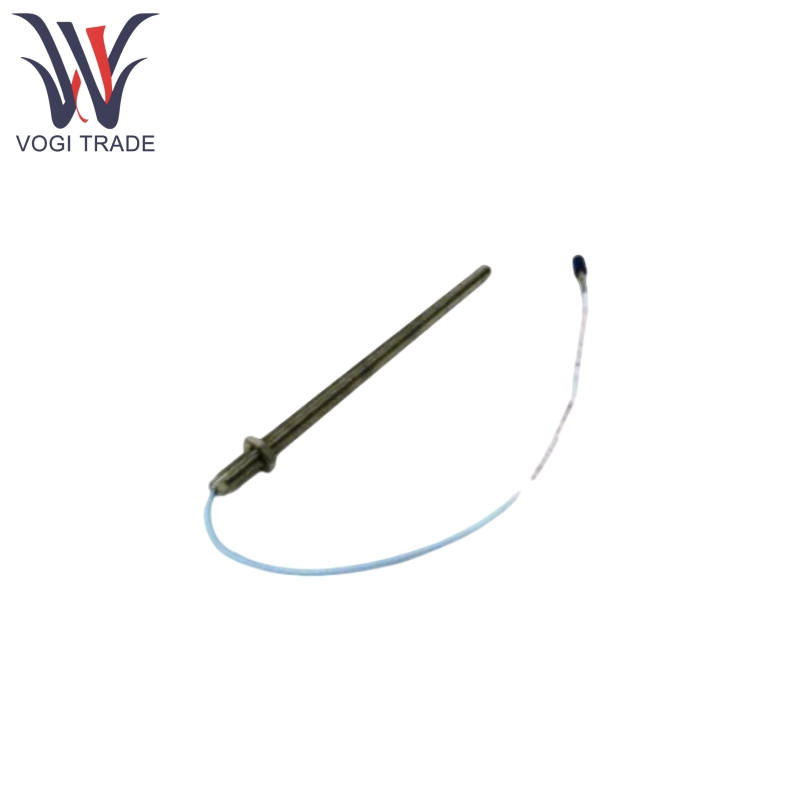

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330905-00-13-05-02-05 Proximity Probe is mainly used for condition monitoring of machinery with limited installation space, especially for small targets (e.g. shafts < 51 mm in diameter or flat targets < 15 mm), and enables the measurement of parameters such as radial vibration, radial position, axial thrust position, rotational speed, and phase references (Keyphasor signals).
|
Manufacture |
Bently Nevada |
|
Model Number |
330905-00-13-05-02-05 |
|
Ordering Number |
330905-00-13-05-02-05 |
|
Catalog |
3300 NSv |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9031809090 |
|
Dimension |
13cm |
|
Weight |
0.2kg |
Product Features
Bently Nevada 330905-00-13-05-02-05 is mechanical, and it electrically, interchangeable with the 3300 RAM probe and extension cable, allowing it to be a replacement as well as an upgrade; Side-view features are superior to those of the 3000 series 190 probe, for more stable measurements on small targets with same clearances.
Bently Nevada 330905-00-13-05-02-05 uses patented TipLoc molding technology to make sure the probe tip is always attached to the body securely, CableLoc to strengthen the tensile strength to 220 N (50 lb) to prevent the cable from coming out, and ClickLoc to lock in gold-plated click connector for a stable signal connection, so no thing goes wrong.
Bently Nevada 330905-00-13-05-02-05 features improved chemical resistance to fit in a broad range of process compressor applications, an armor-less design for non-severe mechanical abuse environments, and FEP insulated cables rated to perform in high and low temperatures.
Product Parameters
The following are the detailed data of Bently Nevada 330905-00-13-05-02-05
Electrical Performance:
Probe DC resistance (0.5 m): 4.0±0.5 Ω (center conductor to outer conductor)
Extension cable resistance: 0.220 Ω/m for center conductor, 0.066 Ω/m for shield
Cable capacitance: 69.9 pF/m (typical)
Temperature Range:
Operating temperature: -52°C to +177°C (-62°F to +351°F)
Storage temperature: -52°C to +177°C (Note: Sustained exposure to temperatures below -34°C may cause premature failure of the pressure seal)
Mechanical Parameters:
Thread torque: For M10X1 probe housing, maximum 33.9 N・m (300 in・lb), recommended 11.3 N・m (100 in・lb)
Connector torque: Finger tight recommended, maximum 0.56 N・m (5 in・lb)
Measurement Performance:
Linear range: 1.5 mm (60 mils), ranging from 0.25 to 1.75 mm (10 to 70 mils), corresponding output -1 to -13 Vdc
Average scale factor: 7.87 V/mm (200 mV/mil), incremental error ±12.5%/-20%
Frequency response:0 to 10 kHz (+0, -3 dB), supporting maximum 305-meter wiring
