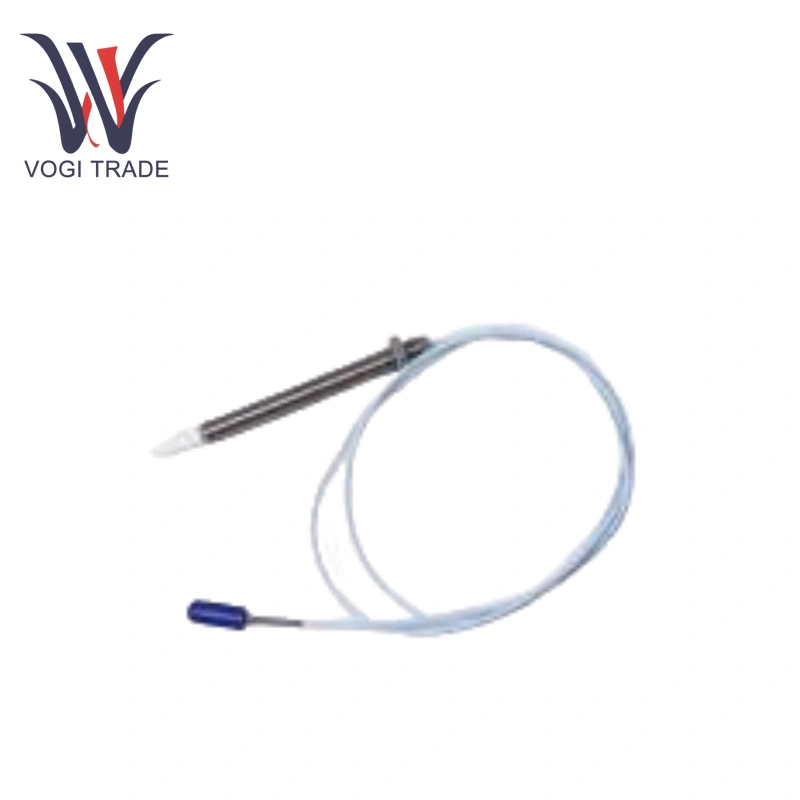

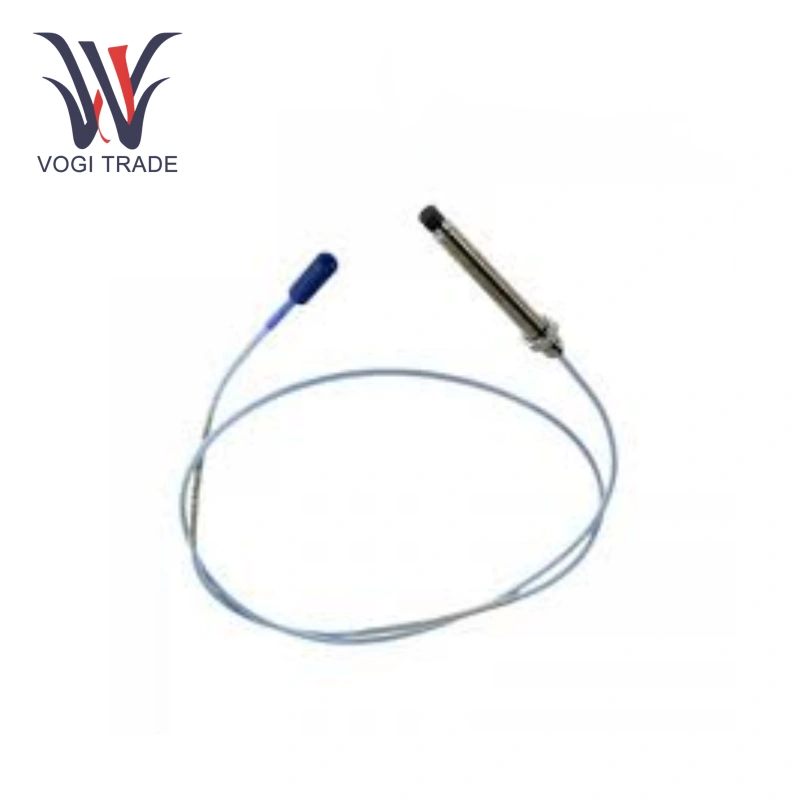

Bently Nevada 330905-00-13-05-02-CN

Product Overview

Model: 330905-00-13-05-02-CN

Product Type: NSv Series 8mm Proximity Probe

Measurement Principle: Eddy Current Effect

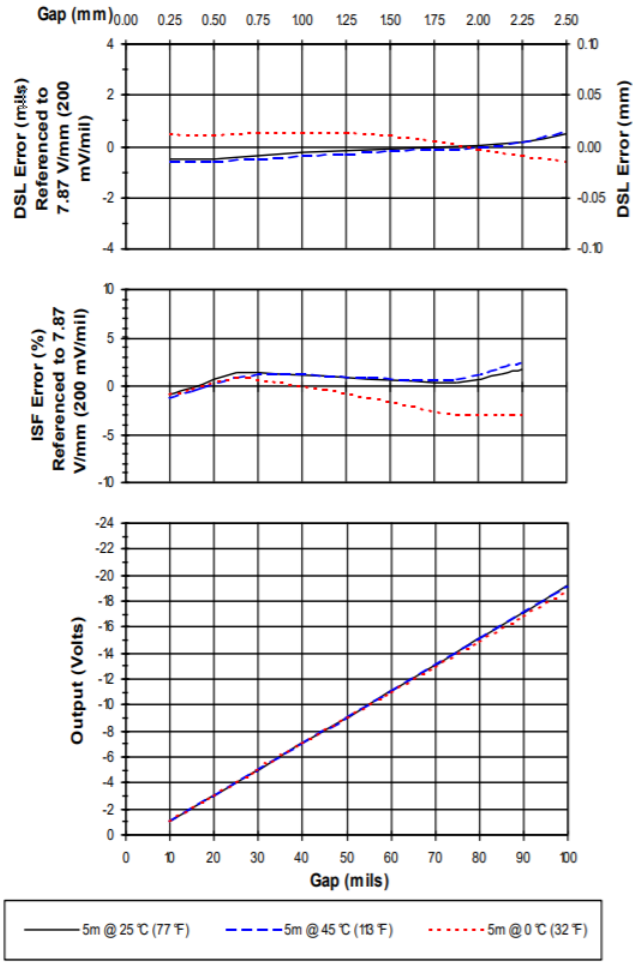

Linear Range: 4.0mm (160mils), starting at 0.5mm (20mils) from the target (corresponding to -1 to -17VDC output)

Sensitivity: -200mV/mil (-7.87V/mm), error ≤±5%

Frequency Response: 0-10kHz (0-1kHz attenuation <1%, 10kHz attenuation <5%)

Probe Dimensions: Unthreaded Length 13mm, Total Housing Length 38mm

Total System Length: 5.0m (16.4ft, including cable)

Operating Temperature: Probe -51°C to +177°C; Cable -51°C to +177°C; Proximitor Sensor -35°C to +85°C

Material: Probe Housing AISI 303/304 stainless steel, probe tip polyphenylene sulfide (PPS)

Cable Specifications: 75Ω triaxial, fluorinated ethylene propylene (FEP) insulation

Connector Type: Micro coaxial Click Loc™ connector

Probe Protection: Maximum operating pressure of 12 MPa, compatible with oil, water, and air

Certifications: CE, CSA, ATEX, IECEx (explosion-proof and industrial safety standards)

Product Features

Accurate Measurement: Bently Nevada 330905-00-13-05-02-CN with a sensitivity of -200mV/mil and an accuracy of ±1% of full scale, it can keenly detect subtle changes in equipment vibration or displacement.

Environmentally Resistant: Bently Nevada 330905-00-13-05-02-CN operates stably over a wide temperature range of -52°C to +177°C, and its stainless steel housing provides excellent dust and splash resistance.

Easy Installation: Bently Nevada 330905-00-13-05-02-CN with the standard connector and cable design, combined with optimal probe size, allows for flexible installation on equipment, allowing you to select the appropriate location based on your monitoring needs.

Applications

Compressor Equipment Monitoring: Bently Nevada 330905-00-13-05-02-CN is widely used in centrifugal air compressors, refrigeration compressors, process gas compressors, and other equipment to monitor radial vibration and axial displacement of shafts.

Small Equipment Monitoring: Bently Nevada 330905-00-13-05-02-CN is suitable for measuring radial vibration on equipment with shaft diameters less than 51mm (2 inches) or axial position on flat target surfaces less than 15mm (0.6 inches).

Note

Installation specifications: Ensure that the probe is perpendicular to the target surface (deviation ≤ 5°). Control the installation torque between 2.7 and 6.8 N m to avoid overtightening and damaging the threads. The cable bending radius should be no less than 6 times the cable outer diameter to prevent internal wire breakage.
