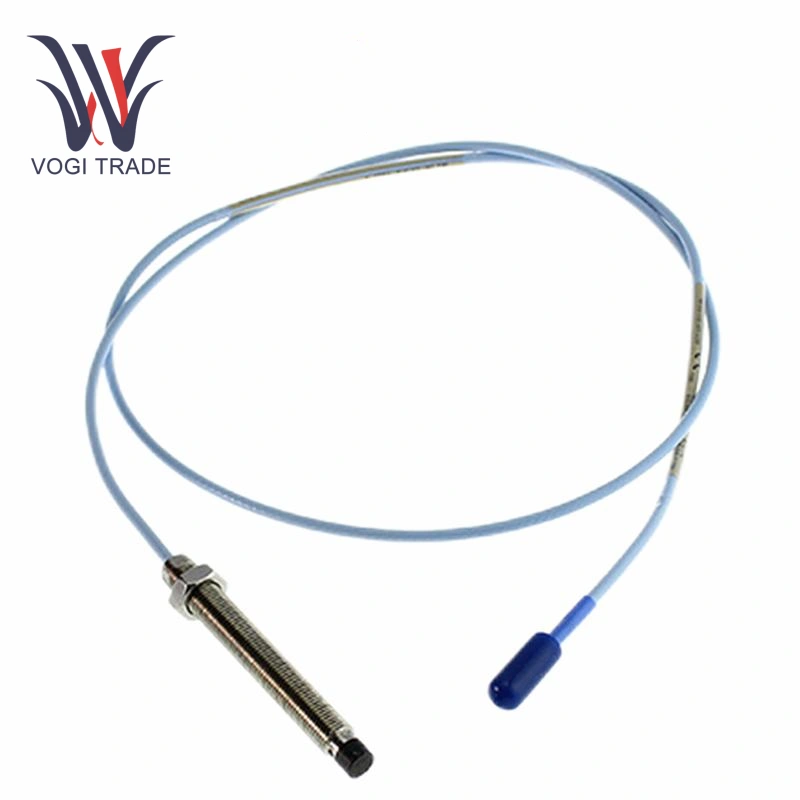

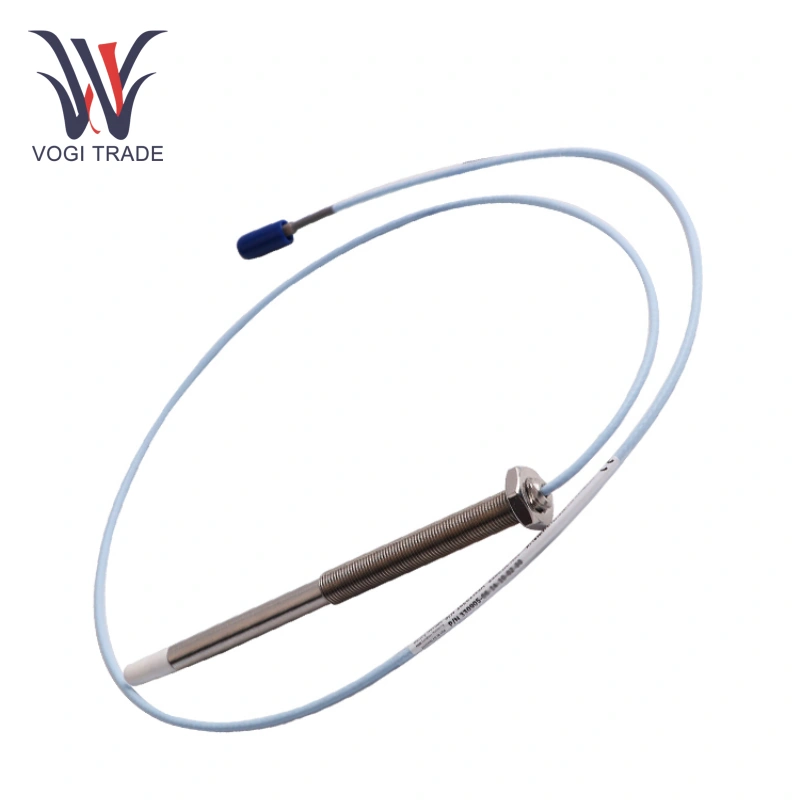

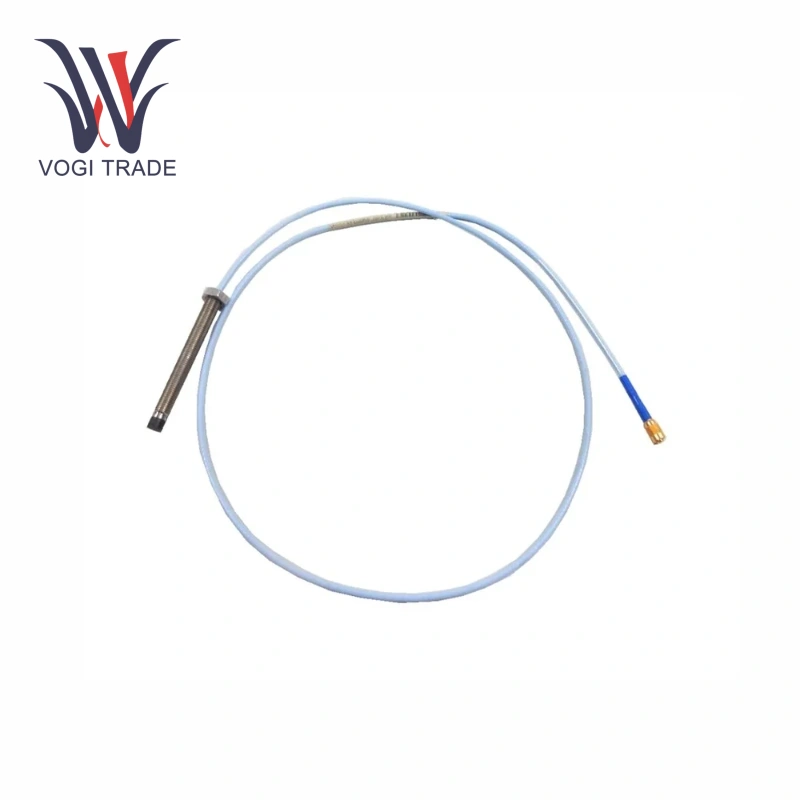

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330905-00-18-05-02-EN is part of the 3300 NSv Series proximity probes. The unthreaded portion of the probe is 0mm long, the overall probe housing length is 18mm, and the total system length is 0.5 meters (20 inches). It uses a micro coaxial Click Loc connector with a standard cable for a convenient and secure connection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330905-00-18-05-02-CN |
|
Ordering Number |
330905-00-18-05-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.5 kg |
Product Overview
Probe Type: 3300 NSv Proximity Probe
Probe Housing Length: 18mm
System Length: 0.5m (20 inches)
Connector and Cable Type: Micro coaxial Click Loc connector, standard cable
Linear Range: 2mm (80mils)
Sensitivity: 7.87V/mm (200mV/mil), average sensitivity error ≤±5%
Frequency Response: 0-10kHz
Operating Temperature: -50°C to +175°C (Probe)
Operating Media: Operates in a variety of media, including air, oil, and water
Maximum Probe Operating Pressure: 12MPa
Minimum Target Size: 50mm diameter (compatible with 8mm probes)
Product Features
Precise Measurement: Bently Nevada 330905-00-18-05-02-EN with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, identifying potential faults.
Environmentally Resilience: Bently Nevada 330905-00-18-05-02-EN with excellent chemical resistance enables stable operation in industrial environments containing corrosive media.
Reliable Connection: Bently Nevada 330905-00-18-05-02-EN used the micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission.
Applications
Compressor Equipment Monitoring: Bently Nevada 330905-00-18-05-02-EN is widely used in centrifugal air compressors, refrigeration compressors, process gas compressors, and other equipment to monitor radial vibration and axial displacement of shafts.
Small Equipment Monitoring: Bently Nevada 330905-00-18-05-02-EN is suitable for measuring radial vibration on equipment with shaft diameters less than 51mm (2 inches) or axial position on flat target surfaces less than 15mm (0.6 inches).
Compliance and Certifications
Standard Compliance:
API 670: Meets mechanical configuration, linear range, accuracy, and temperature stability.
FCC, EMC, RoHS, Maritime, and Functional Safety (SIL2/SIL3) certifications.
Hazardous Area Certifications:
Complies with Class I, Zone 2 (AEx/Ex nA IIC T5...T1 Gc) when used with the non-excitation circuit (nA,ec option).
Installation must be performed in accordance with drawing 140979.
General Warning:
Leak control is the customer's responsibility (probes are not covered by the leak warranty).
Interchangeability: Components are interchangeable with non-XL series, but performance is limited to the lowest specification component.
