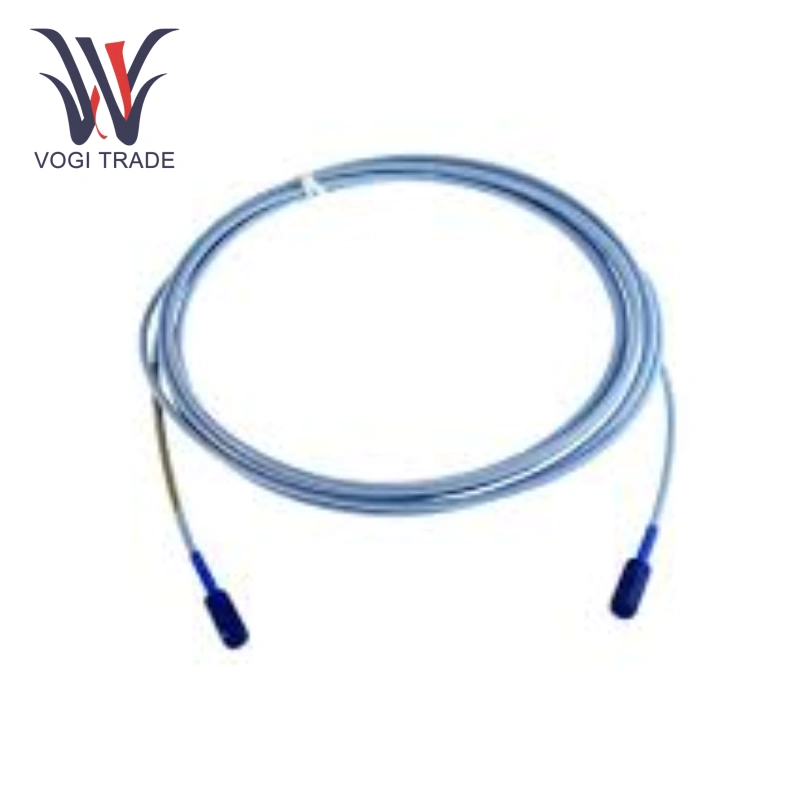

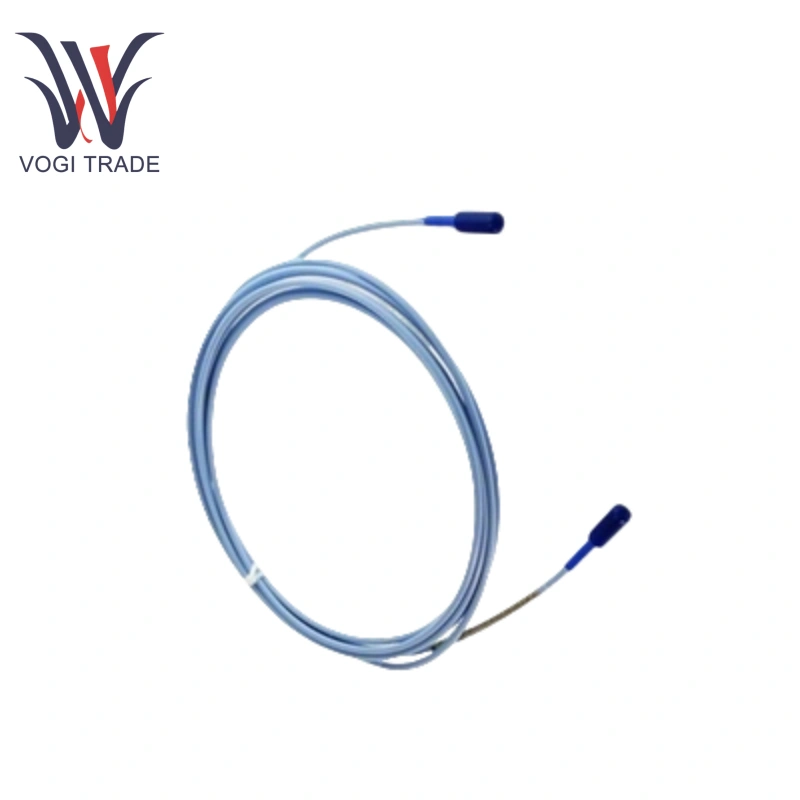

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330930-040-00-00 is a standard extension cable for the 3300 XL NSv vibration monitoring system, extending the system's connectivity. The 4-meter cable features a 9-pin D-subminiature connector on one end and a 9-pin circular connector on the other. It uses 24 AWG stranded copper conductors and is covered in a PVC jacket.
|
Manufacture |
Bently Nevada |
|
Model Number |
330930-040-00-00 |
|
Ordering Number |
330930-040-00-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2kg |
Product Overview
Model Definition:
330930: Base Model (3300 NSv Extension Cable)
040: Cable Length 4.0 m (13.1 ft)
00: Without stainless steel armor
00: Agency Approval: Not Required
Cable Construction:
75Ω coaxial cable with fluorinated ethylene propylene (FEP) insulation.
Unarmored Design: Lightweight (approximately 45 g/m), suitable for installation environments without risk of mechanical damage.
Connector:
Gold-plated brass ClickLoc connector for quick plug-in and unplugging, with anti-loosening locking.
No connector boot.
Temperature Range:
Operating and Storage Temperature: -52°C to +177°C.
Chemical Compatibility:
FEP insulation provides chemical resistance and is suitable for use in common industrial environments.
Warning: Prolonged exposure to temperatures below -34°C may cause seal failure.
Product Features
Easy Installation: Bently Nevada 330930-040-00-00 have standard 4-meter length and dedicated connector facilitate quick connection to probes and other equipment in the 3300 XL NSv vibration monitoring system.
Durable and Reliable: Bently Nevada 330930-040-00-00 used multi-stranded copper conductors enhance the cable's flexibility and durability, making it less susceptible to damage from frequent flexing.
Stable Signal: Bently Nevada 330930-040-00-00 have high-quality conductors combined with optimized electrical parameter design effectively minimize signal transmission loss and interference.
Applications
Power Industry: Bently Nevada 330930-040-00-00 widely used for vibration monitoring of large rotating equipment such as steam turbines and generators.
Petrochemical Industry: Bently Nevada 330930-040-00-00 used for vibration monitoring of compressors, pumps, fans, and other equipment in flammable, explosive, and highly corrosive chemical production environments.
Manufacturing Industry: Bently Nevada 330930-040-00-00 uesd for various rotating machinery and equipment, such as motors, machine tools, and injection molding machines, can be equipped with a vibration monitoring system and this extension cable to achieve real-time monitoring and data analysis of equipment operating status.
Installation and Compatibility
1. System Integration Requirements
Length Matching:
The extension cable length (4.0 m) must be added to the probe length to equal the total system length indicated on the transmitter sensor (e.g., 5 m or 7 m).
Wiring Specifications:
Three-conductor shielded twisted-pair cable (0.2–1.5 mm²) is recommended.
Maximum cabling distance from transmitter sensor to monitor: 305 m.
2. Connector Protection Solution
No protective cover by default: Order the following accessories separately:
03800000 (male protective cover) + 03800001 (female protective cover)
Or use silicone tape (03200006), but do not use in turbine oil environments.
