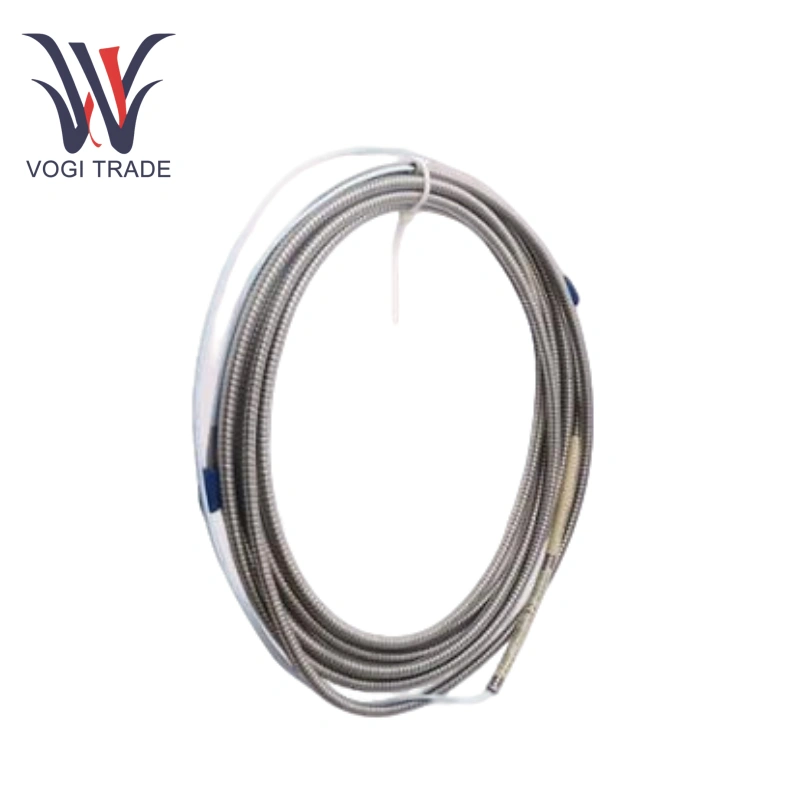

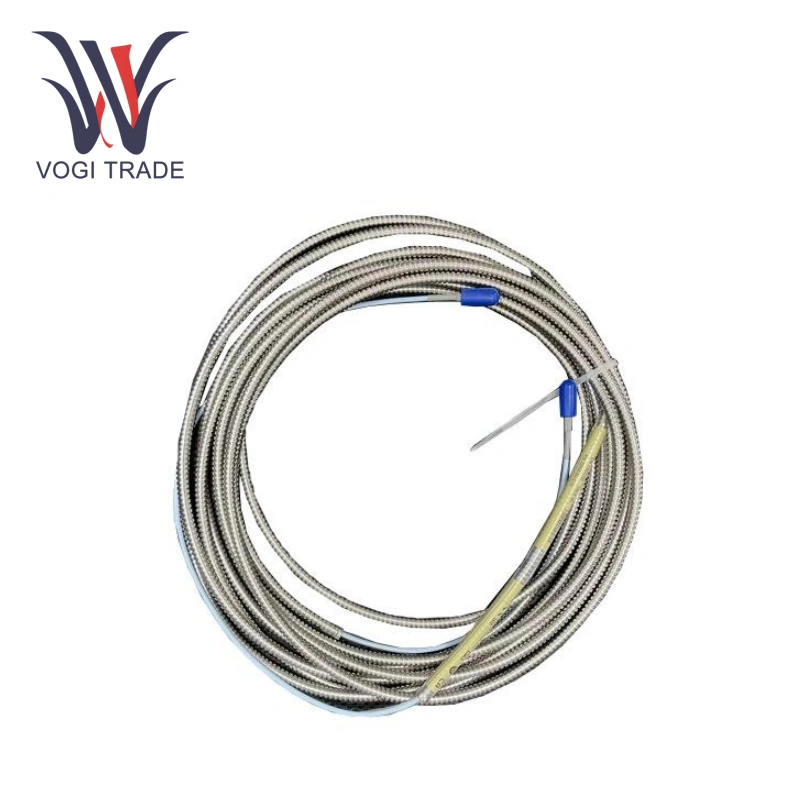

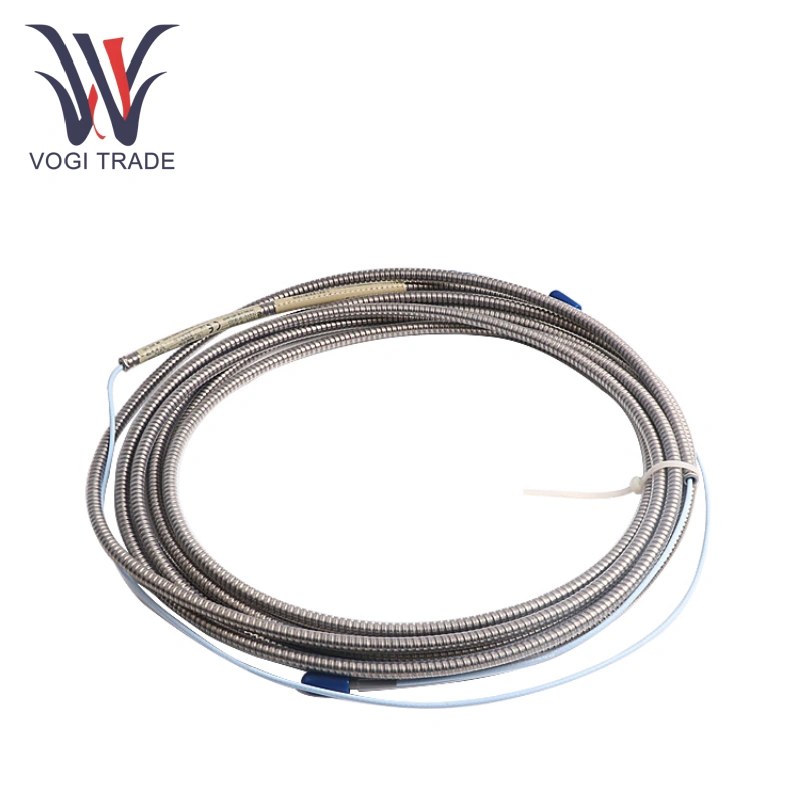

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330930-040-02-00 is a dedicated extension cable for the 3300 XL NSv series. It is used to connect the 3300 NSv proximity probe to the 3300 XL NSv proximitor, enabling long-distance transmission of rotating machinery monitoring signals.
|
Manufacture |
Bently Nevada |
|
Model Number |
330930-040-02-00 |
|
Ordering Number |
330930-040-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2kg |
Product Overview
Model: 330930-040-02-00
Product Type: 3300 XL NSv System Extension Cable
Cable Specifications: 24AWG stranded tinned copper core, 2-conductor construction
Length: 4 meters (13.1 feet)
Connector Type: Microdot
Insulation Material: FEP (fluorinated ethylene propylene copolymer)
Shielding: Metal braided shield for RFI/EMI protection
Electrical Parameters: Capacitance 69.9pF/m, rated voltage 300V, insulation resistance >100MΩ
Environmental Resistance: Operating temperature -55°C to +200°C, withstands 50g pk-pk vibration (10-2000Hz), 100g shock (11ms)
Protection Rating: Optional stainless steel armor for harsh industrial environments
Certifications: Complies with API 670 4th Edition, ATEX and IECEx certified
Product Features
Easy Installation: Bently Nevada 330930-040-02-00 have standard 4-meter length and dedicated connector facilitate quick connection to probes and other equipment in the 3300 XL NSv vibration monitoring system.
Durable and Reliable: Bently Nevada 330930-040-02-00 used multi-stranded copper conductors enhance the cable's flexibility and durability, making it less susceptible to damage from frequent flexing.
Stable Signal: Bently Nevada 330930-040-02-00 have high-quality conductors combined with optimized electrical parameter design effectively minimize signal transmission loss and interference.
Applications
Power Industry: Bently Nevada 330930-040-02-00 widely used for vibration monitoring of large rotating equipment such as steam turbines and generators.
Petrochemical Industry: Bently Nevada 330930-040-02-00 used for vibration monitoring of compressors, pumps, fans, and other equipment in flammable, explosive, and highly corrosive chemical production environments.
Manufacturing Industry: Bently Nevada 330930-040-02-00 uesd for various rotating machinery and equipment, such as motors, machine tools, and injection molding machines, can be equipped with a vibration monitoring system and this extension cable to achieve real-time monitoring and data analysis of equipment operating status.
Note
Wiring standards: Avoid running parallel to high-voltage cables. Ensure the bend radius is no less than six times the cable's outer diameter to prevent shield damage that could affect anti-interference performance.
Connector protection: After installation, check the connector for tightness. Install protective covers in humid or dusty environments to prevent oxidation and poor contact.
