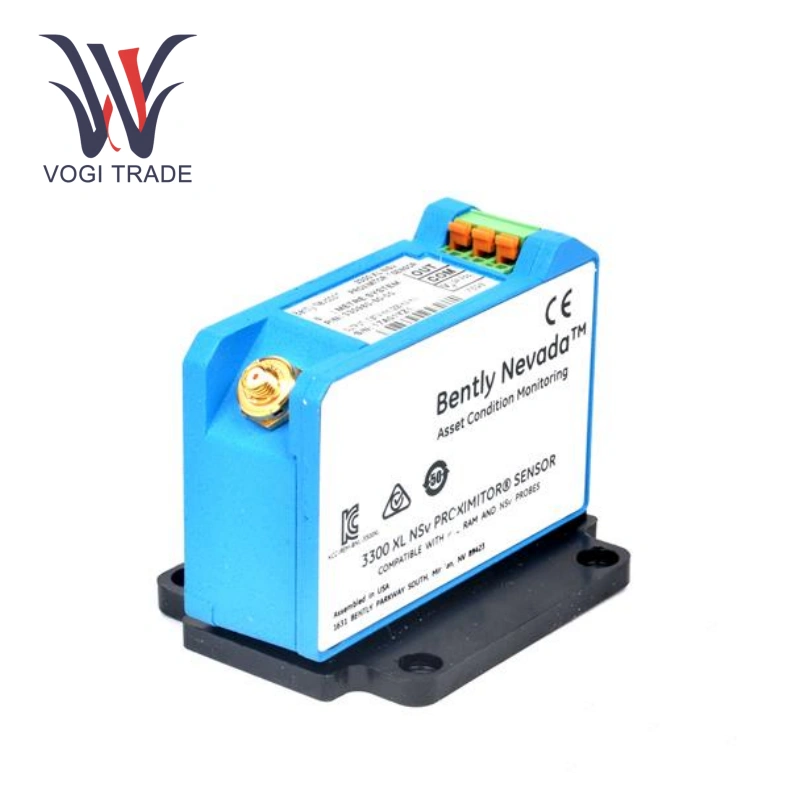

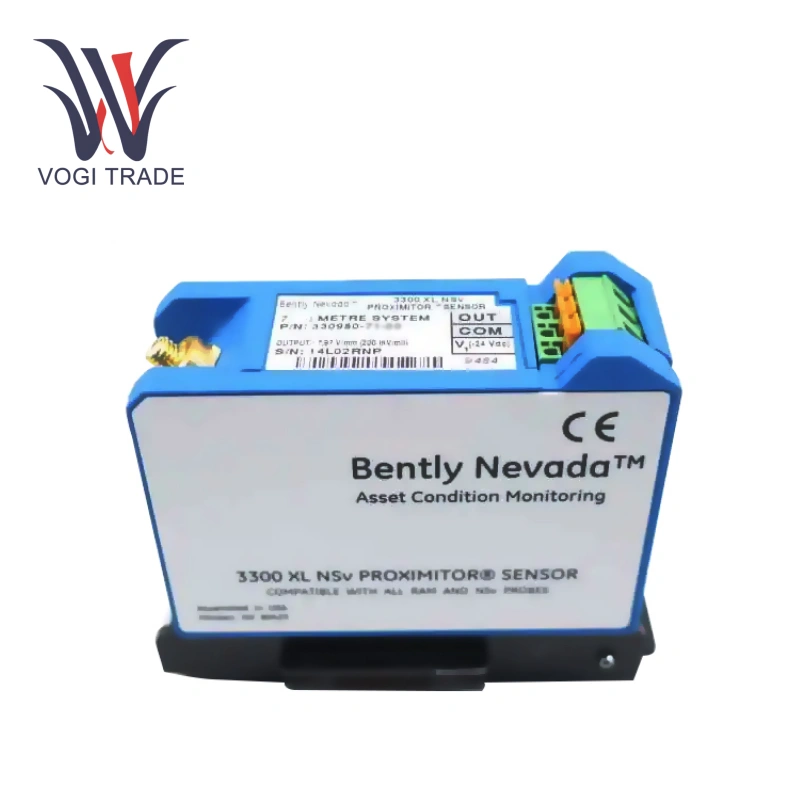

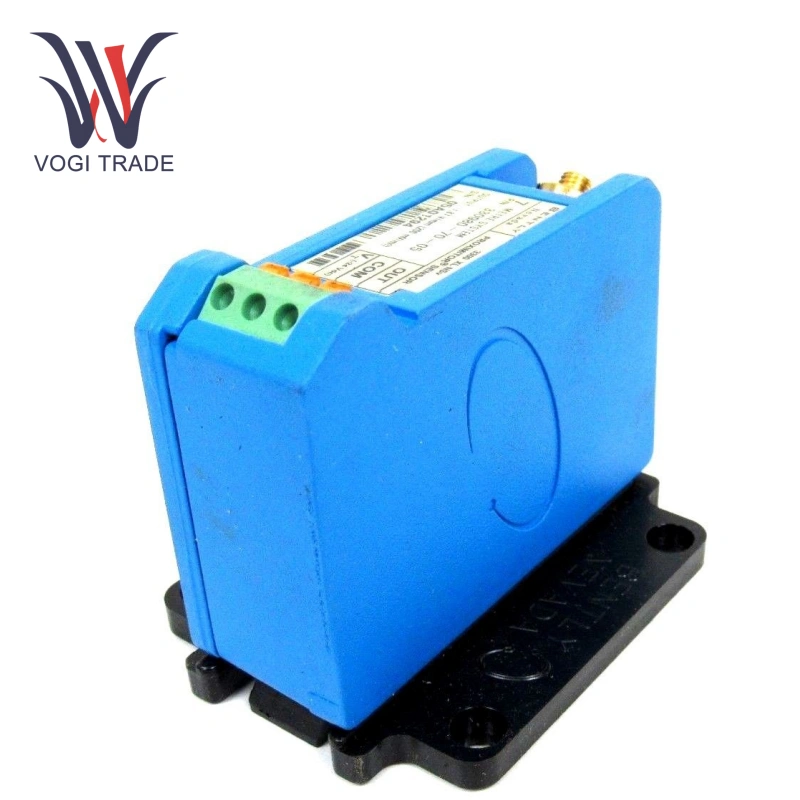

Brand: Bently Nevada Description: NSv Proximitor Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330980-50-00 is a 3300 XL NSv Series narrow side view proximity sensor designed for monitoring small objects in confined spaces and as the core signal conditioning unit for eddy current proximity sensing systems.
|
Manufacture |
Bently Nevada |
|
Model Number |
330980-50-00 |
|
Ordering Number |
330980-50-00 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2kg |
Product Overview
Model: 330980-50-00
Product Type: 3300 XL NSv Series Proximitor Sensor
Compatible System: 3300 XL NSv Proximity Sensor System, including NSv probe and extension cable
System Length: 5.0 meters (including the total electrical length of the probe and extension cable)
Output Characteristics: Sensitivity 7.87V/mm (200mV/mil), linear range 1.5mm
Mounting Method: Panel mount, DIN rail mount (shares the same 4-hole mounting footprint)
Protection Performance: Enhanced RFI/EMI immunity, European CE certification
Electrical Connection: SpringLoc terminal block, tool-free wiring
Enclosure Material: A380 aluminum alloy, dimensions 20.5 × 22.5 × 3.5 cm, weight 0.18 kg
Compatibility: Replaces 3300 RAM, 3000/7000 Series 190 Proximitor Sensor Systems
Product Features
Bently Nevada 330980-50-00 have high sensitivity of 8mV/μm and ±1% linearity error allows detection of micron-level shaft displacement changes.
Bently Nevada 330980-50-00 have wide operating temperature range and IP66 protection make it suitable for high-temperature, dusty environments such as power plants and petrochemical plants, minimizing the impact of harsh environments on monitoring accuracy.
Bently Nevada 330980-50-00 have threadless probe design accommodates specialized mounting locations, and the extension cable is customizable in length to meet the wiring requirements of diverse equipment layouts.
Applications
Bently Nevada 330980-50-00 used in turbine and generator shaft displacement and vibration monitoring, compatible with high- and low-pressure cylinder bearing seat installation, prevents shaft wear and rotor imbalance.
Bently Nevada 330980-50-00 uesd in centrifugal compressor and cracking gas compressor shaft vibration monitoring withstands high temperatures and oil and gas environments in the plant area, ensuring continuous operation of the compressor unit.
Compatibility and Upgrades
Compatibility:
Directly replaces the sensor in 3300 RAM systems (retains the original probe and extension cable).
Upgrading 3000/7000 Series 190 systems requires a complete replacement of the NSv assembly (probe, cable, and sensor).
Applications:
Suitable for radial vibration/position, axial thrust position, speed, and phase reference (keyphasor) measurements (Section: Description).
Safety Certifications
SIL 2/3 functional safety level (HFT = 0/1).
ATEX/IECEx explosion-proof certification.
FCC, CE, RoHS compliant (Section: Compliance and Certifications).

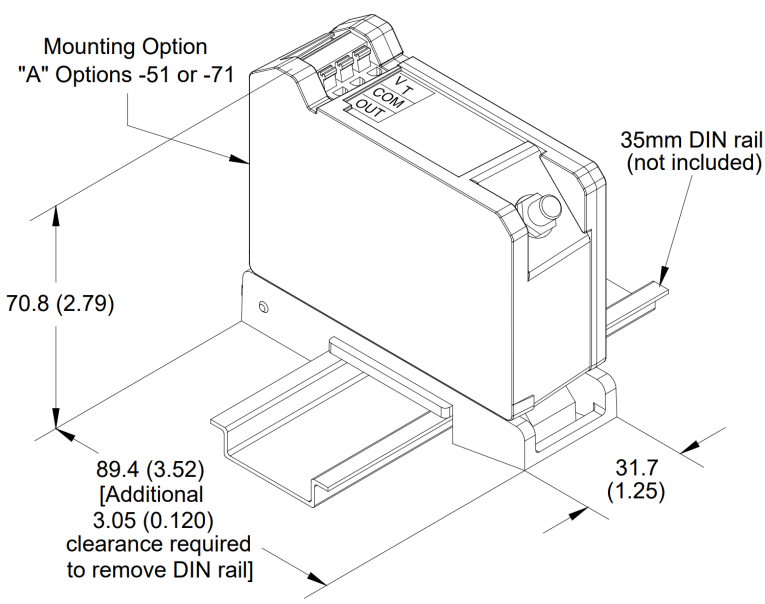

DIN rail mounting diagram:
