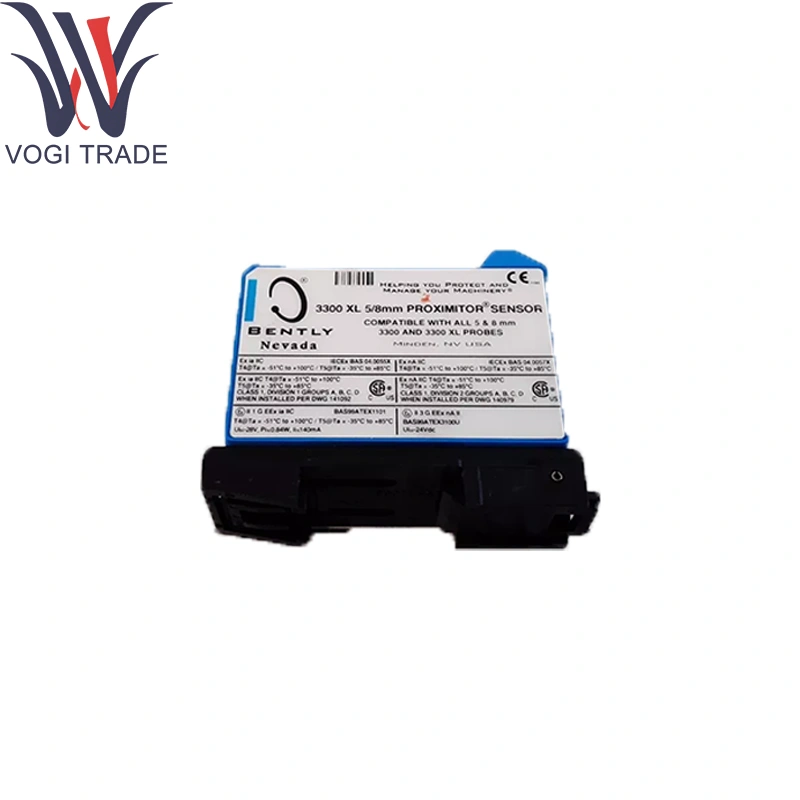

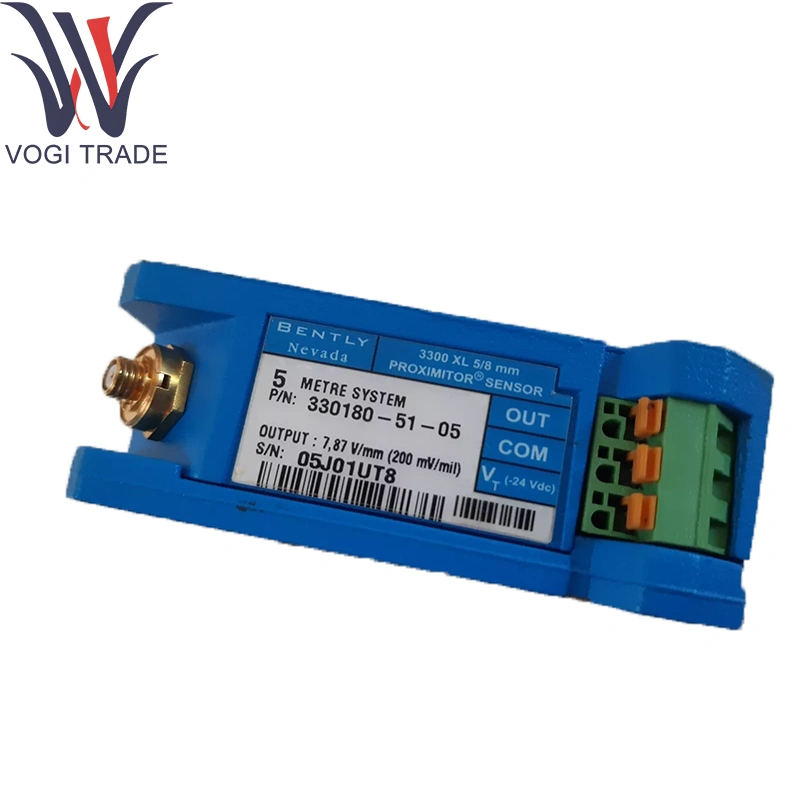

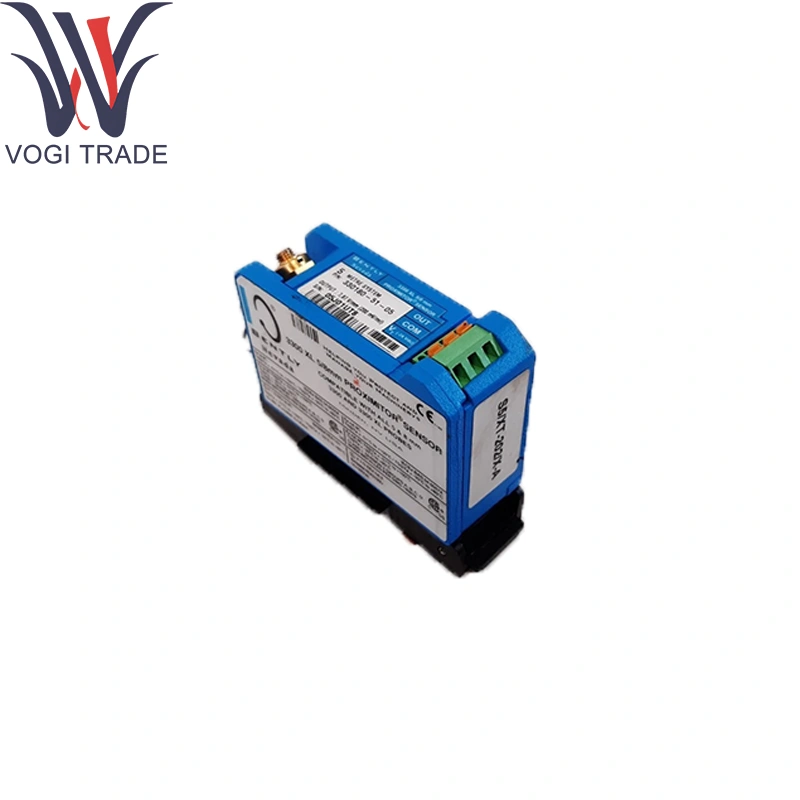

Brand: Bently Nevada Description: 330980-50-05 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330980-50-05 Mounts near field probes in turbine, compressor, pump, or motor enclosures to convert eddy-current proximity signals into industrial 4–20 mA loops for integration with PLC/DCS analog inputs or portable dataloggers.
|
Manufacture |
Bently Nevada |
|
Model Number |
330980-50-05 |
|
Ordering Number |
330980-50-05 |
|
Catalog |
3300XL |
|
Description |
proximity measurement |
|
Country Of Origin |
USA |
|
HS CODE |
8528521900 |
|
Dimension |
12*6*4 (CM) |
|
Weight |
0.25 kg |
Ordering Information
3300 XL NSv Proximitor Sensor
A: Total Length and Mounting Option
50 5.0 meters (16.4 feet) system length, panel mount
51 5.0 meters (16.4 feet) system length, DIN mount
52 5.0 meters (16.4 feet) system length, no mounting hardware1
70 7.0 meters (23.0 feet) system length, panel mount
71 7.0 meters (23.0 feet) system length, DIN mount
72 7.0 meters (23.0 feet) system length, no mounting hardware
B: Agency Approval Option
00 Not required
05 Multiple approvals
Technical Parameters
1 × eddy-current probe (0–50 V p-p) for Bently Nevada 330980-50-05
Excitation: –23 V DC @ 10 mA
Output:
4–20 mA loop (RL ≤ 800 Ω) proportional to 0–50 mm gap
Accuracy: ± 0.5 % of span
Linearity: ± 0.2 % over 0–50 mm in Bently Nevada 330980-50-05
Resolution: 12-bit DAC equivalent (< 4 µA steps)
Response Time: ≤ 50 ms 90 % step
Isolation: 500 V channel-to-case
Supply: 24 V DC loop power (12–30 V DC)
Operating Temp: –20 °C to +70 °C
Environmental: IP65 with mated connector; PVC cable jacket
Product function
Signal Conditioning: Buffers and linearizes probe output via Bently Nevada 330980-50-05.
Current-Loop Conversion: Scales voltage to 4–20 mA proportional to gap.
Diagnostics: Detects open/short circuits; flags faults via output saturation.
Calibration: Front-panel trim pots or handheld interface for zero/span adjustment.
Application Areas
DCS/PLC Integration: Feeding shaft-displacement signals using Bently Nevada 330980-50-05 into control loops.
Portable Monitoring: Supplying current signals to dataloggers.
OEM Skid Panels: Embedding compact transmitters with Bently Nevada 330980-50-05.
Legacy Retrofits: Replacing Proximitor® racks with standalone transmitters.
Infrastructure Monitoring: Industrial equipment requiring robust proximity measurement via Bently Nevada 330980-50-05.
