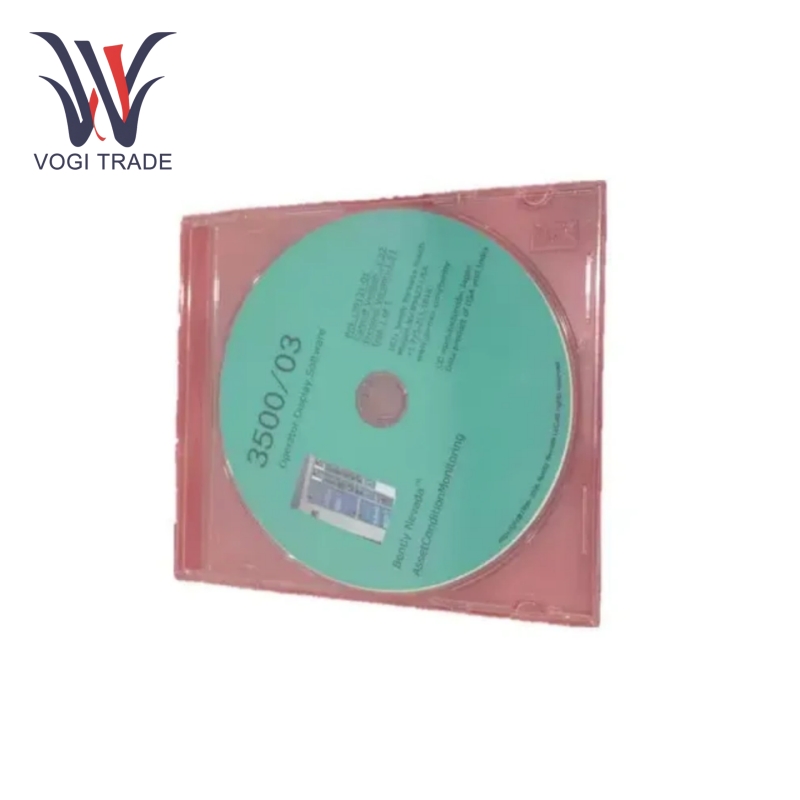

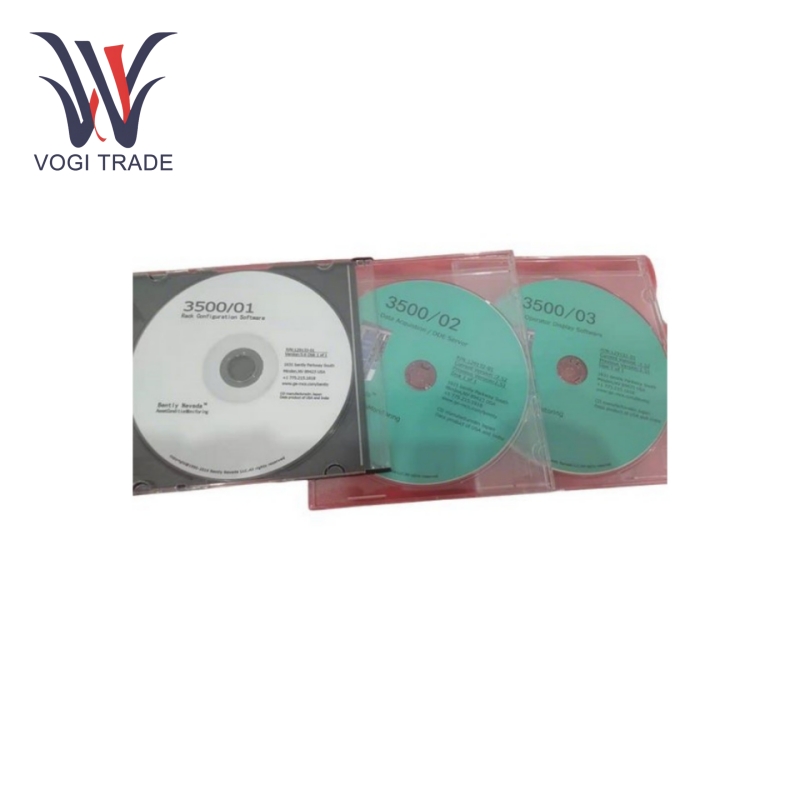

Bently Nevada 3500/03

Operating Parameters

Power Supply: Standard voltage is usually between 22 and 26 VDC; therefore, a stable power supply consistent with the basic operating requirements of the equipment will be ensured.

Normal Operating Temperature: The range is from -20C to +65C; therefore, Bently Nevada 3500/03 can work in extreme conditions, from a cold room to a hot industrial plant.

Sampling Rate: The sampling rate can be very high and based on multiple application requirements, for example, up to thousands of samples per second. The increased number of samples allows for accurate measurement and monitoring of dynamic signals and parameter changes.

Product Functions

Vibration Monitoring: One of the most important oral functions is to monitor the vibration of rotating machinery in order to detect and analyze small vibrations and subsequently the amplitude, frequency and phase. By continuously monitoring the vibration level, it can predict possible failures of rotating machinery such as turbines, pumps and compressors. It will inform about the imbalance, misalignment or wear of the bearings.

Proximity and Displacement Measurement: The Bently Nevada 3500/03 measures the distance and proximity of moving objects, determining the clearance limits where clearance must be maintained between rotating and non-rotating parts. When the distance is less than or greater than the allowed clearance, an alarm is activated to avoid catastrophic failure.

Conditioning and Analysis: The Bently Nevada 3500/03 can condition the raw signal from the sensor. It takes into account all power lines, but does not take into account the noise and interference generated by the battery lines, amplification of weak signals and subsequent analysis. Vibration parameters such as peak-to-peak, RMS and spectrum analysis can be obtained. Spectral analysis can help obtain specific fault types by measuring the frequency characteristics of various faults and providing important diagnostic information.

Application Range

Power Generation: The Bently Nevada 3500/03 is widely used in power plants for condition monitoring of large steam turbines and generators. Online condition monitoring has been implemented to improve the availability and reliability of power generation equipment by monitoring vibration and other parameters. The warnings issued will predict potential problems while minimizing the risk of unexpected downtime and expensive repairs.

Petrochemical Industry: Monitoring of pumps, compressors, and other rotating machinery is used in the oil refining industry and petrochemical plants, where the extreme nature of these processes creates the risk of hazardous situations. Accurate monitoring will protect the safety of the equipment and the entire operation.

Manufacturing: The Bently Nevada 3500/03 is used in different manufacturing sectors, such as automotive and aerospace, to monitor the performance of machine tools and various production machinery. The continuous operation of these machines helps improve product quality and reduce production downtime.
