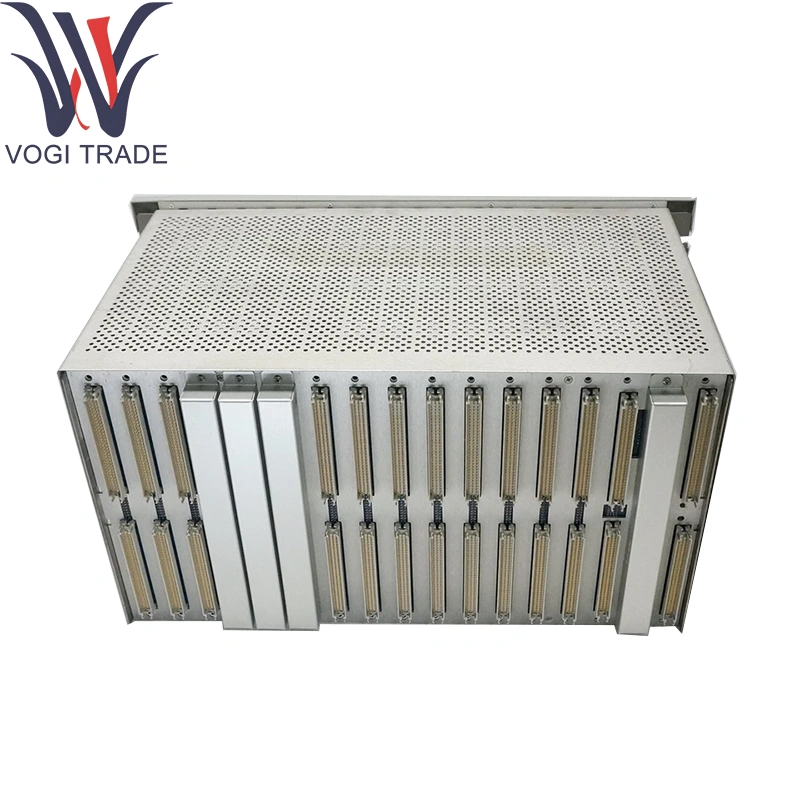

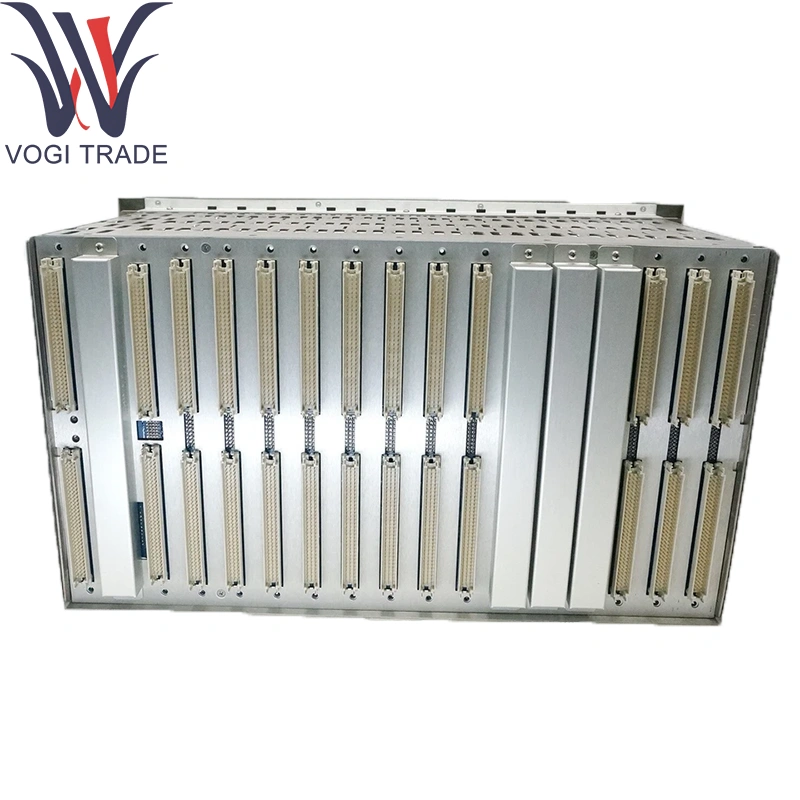

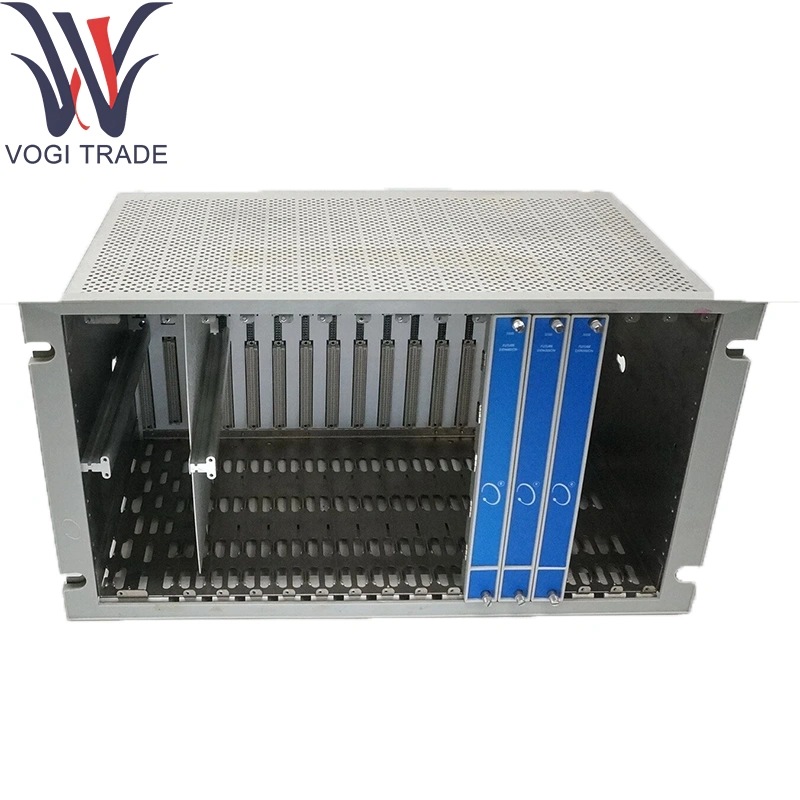

Bently Nevada 3500/05-01-02-00-00-01

Ordering Information

Product Description

3500/05-AA-BB-CC-DD-EE

A: Rack Size

01

19-inch Rack (14 module slots)

02

12-inch Mini-Rack (7 module slots)

B: Mounting Options

01

Panel Mount Option, Full-Size Rack

02

Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack)

03

Bulkhead Mount Option (not available in Mini-Rack)

04

Panel Mount Option, Mini-Rack

05

Rack Mount Option, Mini-Rack

C: Agency Approval Option

00

None

01

CSA/NRTL/C (Class 1, Division 2)

02

ATEX/IECEx/CSA (Class 1, Zone 2)

D: Reserved

00

None

E: European Compliance Option

01

CE

Technical Parameters

Slots: 8 module positions in the Bently Nevada 3500/05-01-02-00-00-01, each with dual 50-pin backplane connectors

Backplane: Dual-redundant 3500 digital bus lines providing 10 MHz synchronous data transfer

Power Entry:

Input Voltage: 24 V DC (18–32 V DC)

Current Capacity: 10 A per bus; total rack draw ≤ 8 W (no modules installed) for the Bently Nevada 3500/05-01-02-00-00-01

Barrier Options: Configurable for standard or intrinsically-safe barriers (3500/65 or 135489-02/03 cards fitted)

Cooling: Convection-vent slots of the Bently Nevada 3500/05-01-02-00-00-01; optional fan module (3500/05-FANX) with dust filters

Grounding & Shielding: Single-point chassis earth lug; integrated EMI gaskets on module guides

Mounting: Front flange with captive thumb-screws for 19″ rack; rear support brackets for stability

Product function

Power Distribution: Delivers regulated 24 V DC to all modules through the Bently Nevada 3500/05-01-02-00-00-01 backplane, with polarity protection.

Data Bus: Provides high-speed digital communication channels for synchronized event-time stamping.

Barrier Integration: Accommodates internal barrier modules to meet intrinsic-safety requirements.

Mechanical Support: Securely holds modules for reliable connector mating within the Bently Nevada 3500/05-01-02-00-00-01.

Application Areas

Rotating-Machinery Protection: Hosting proximity/vibration modules in the Bently Nevada 3500/05-01-02-00-00-01 for real-time trip logic.

Condition Monitoring: Integrating multi-channel I/O for diagnostics.

Hazardous-Area Installations: Configured with internal barriers for Zone 2/Div 2 compliance.

Modular Test Stands: Rapid module swap-out capability using the Bently Nevada 3500/05-01-02-00-00-01.
