Bently Nevada 3500/33

Brand: Bently Nevada
Description:Output Module
Condition:New
Certificate:COO TEST REPORT WARRANTY LETTER
Warranty:1 year
Inventory Qty:6
Payment term:T/T
Shipping Port:ShenZhen

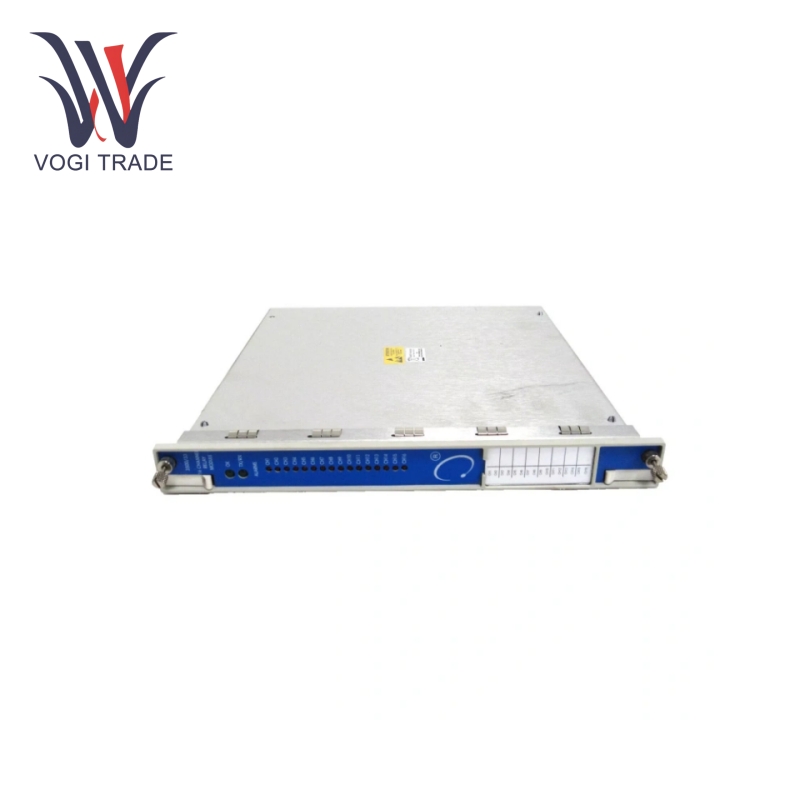

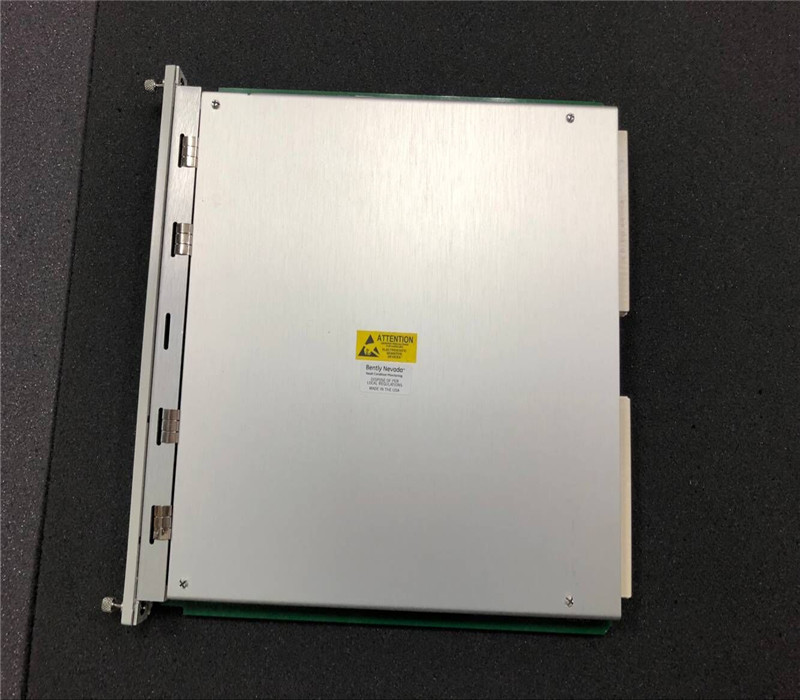

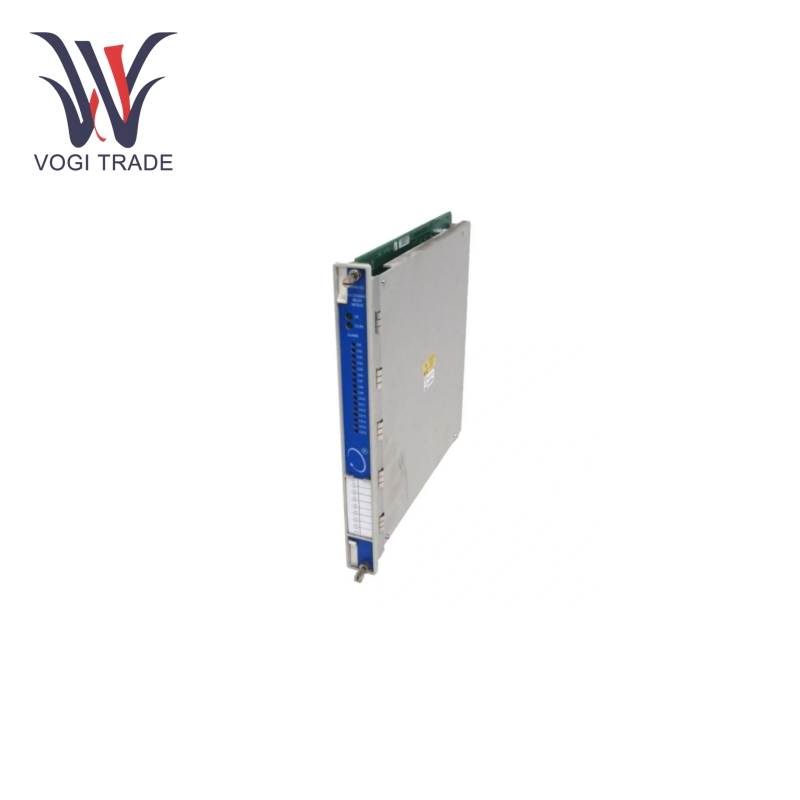

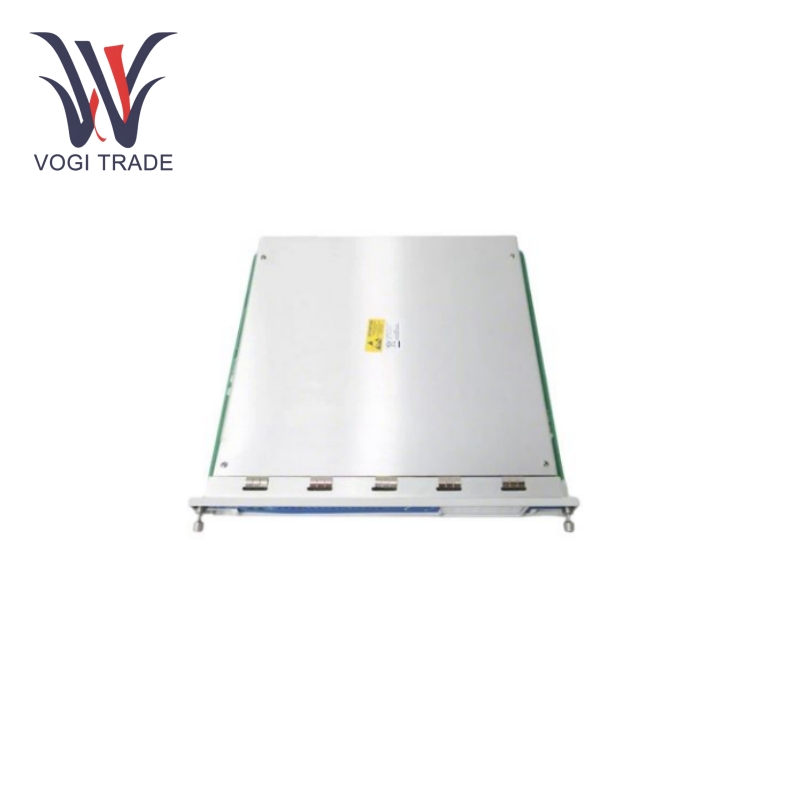

The Bently Nevada 3500/33 is a 16-channel relay module in the Bently Nevada 3500 monitoring system that can be independently programmed to perform voting logic and has the function of alarm actuation logic.

Send Inquiry

Product Description

Manufacture
Bently Nevada
Model Number
3500/33
Ordering Number
149986-01
Catalog
3500
Country Of Origin
USA
HS CODE
8473309000
Dimension
24*3*24cm
Packing Dimension
16*5*26cm
Weight
0.7kg


Technical Parameters

Power consumption: Typical power consumption is 5.8 watts, ensuring energy-saving performance within the system.

Relay Specifications: The module is equipped with single-pole double-throw (SPDT) relays. Arc suppressors are rated at 250 VRMS as protection standard. Contact life is designed for 100,000 operating cycles at 5 A, 24 VDC or 240 VAC. Channels are divided into four groups of four, with a choice of normally de-energized  or normally energized operating mode.

Environmental Limits: The operating temperature range is -30 °C to +65 °C , and the storage temperature is -40 °C to +85 °C . The Bently Nevada 3500/33 can operate in an environment with a humidity of 95% and no condensation.

Features

Scalable relay output: Bently Nevada 3500/33 provides 16 relay outputs, allowing users to meet different monitoring needs in a scalable manner.

Flexible placement: Multiple 16-channel relay modules can be placed in the available slots to the right of the rack interface module, providing flexibility for system configuration.

Independent programming: Each relay output can be independently programmed to perform the required voting logic, providing a high level of customization for specific applications.

Alarm drive logic: Each relay contains "alarm drive logic" and programming options for logical operations using AND and OR configurations. Bently Nevada 3500/33 can handle inputs such as alarms and dangerous conditions, abnormal conditions, or single measured variables from any monitoring channel or combination of channels, allowing for efficient alarm management.

Durability: The relays are epoxy-sealed to ensure reliable operation even in harsh and challenging environmental conditions.

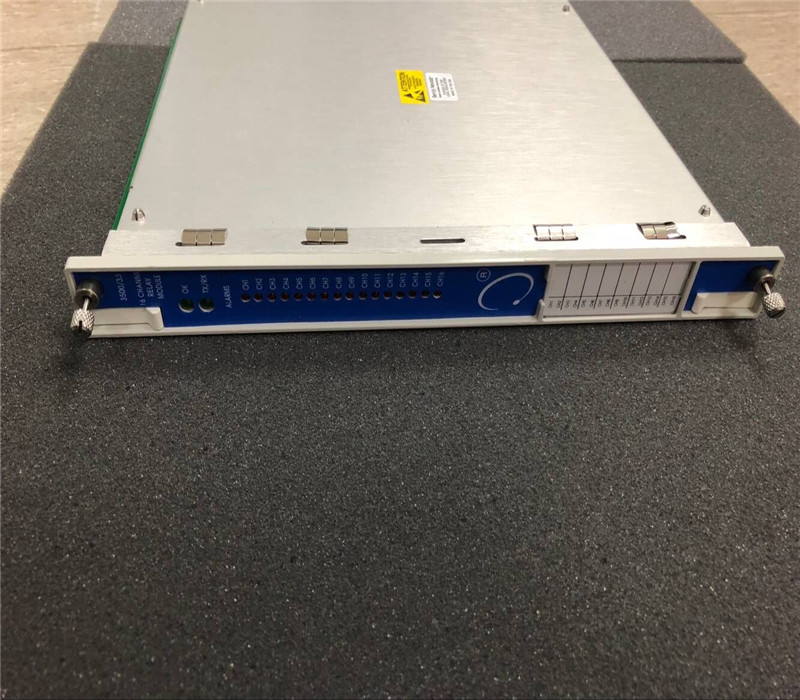

Status Monitoring: The module front panel contains LEDs for intuitive status monitoring, such as the OK LED that lights up when the module is operating normally, the TX/RX LED that flashes when communicating data with other modules, and the CH alarm LED that indicates that a specific relay channel is in an alarm state.

Application Scope

Oil and Gas Industry: Widely used to monitor and protect critical machinery such as pumps, compressors, and turbines. By integrating customized alarm configurations, it helps prevent equipment failures and ensures the smooth operation of production processes.

Power Generation: In power plants, Bently Nevada 3500/33 is used to monitor the status of generators and other related equipment. Its reliable performance and programmable functions help power generation systems operate efficiently and safely, thereby improving the overall reliability of the power grid.

Manufacturing: The module is used in various manufacturing processes to control and monitor machinery, improve production efficiency and product quality. Bently Nevada 3500/33 can be integrated into automated production lines to provide real-time status feedback and respond promptly to any potential problems.

General Industrial Automation: Suitable for a wide range of industrial automation applications that require precise control and reliable monitoring of equipment. It helps optimize system performance, reduce downtime and increase productivity by providing accurate and timely information about the operating status of machines and processes.





Hot Tags: Bently Nevada, 3500/33, 149986-01, 3500/33-01-00, 3500/33-01-01, Output Module
