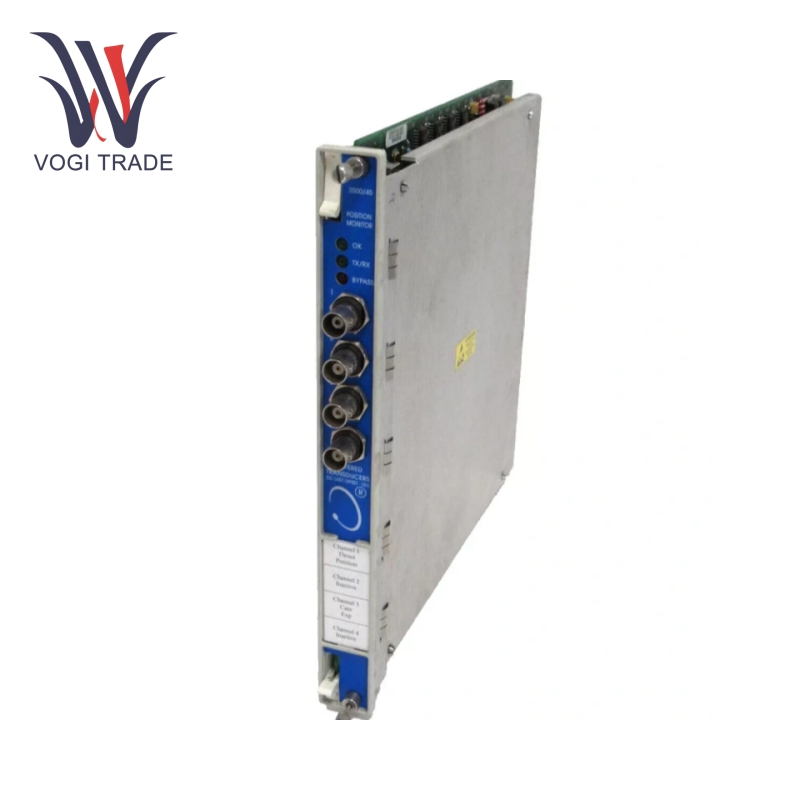

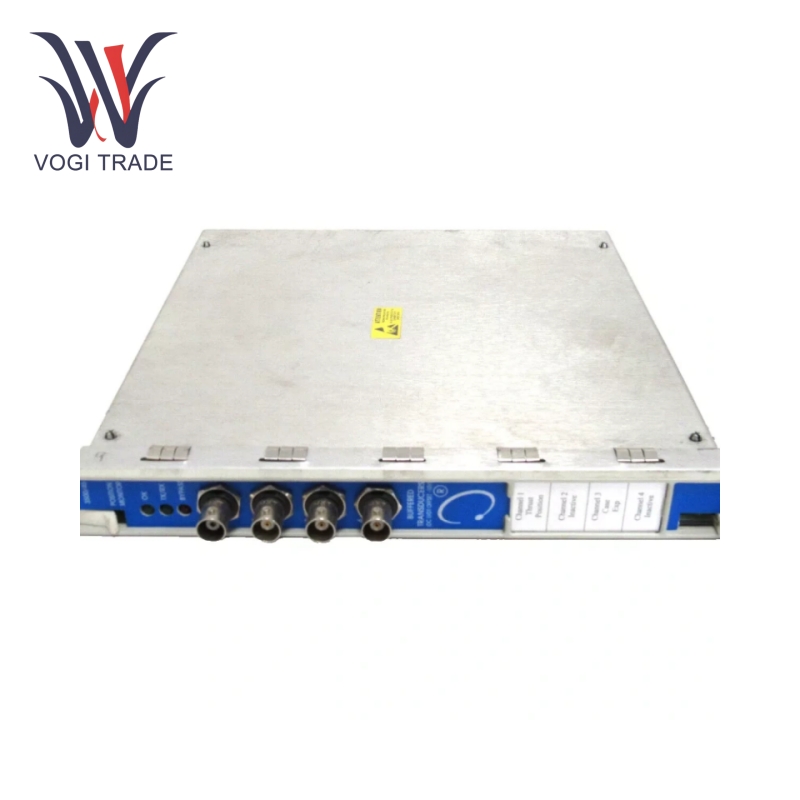

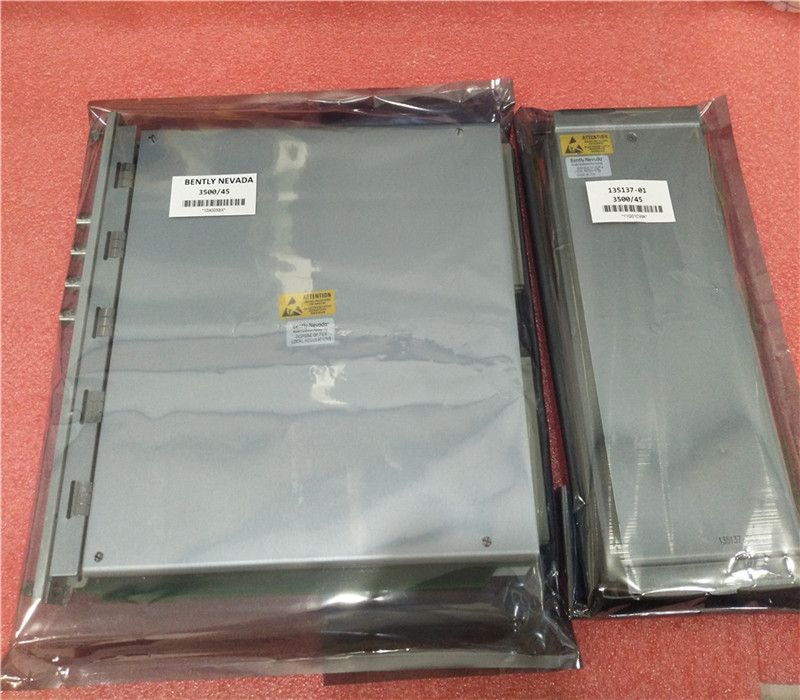

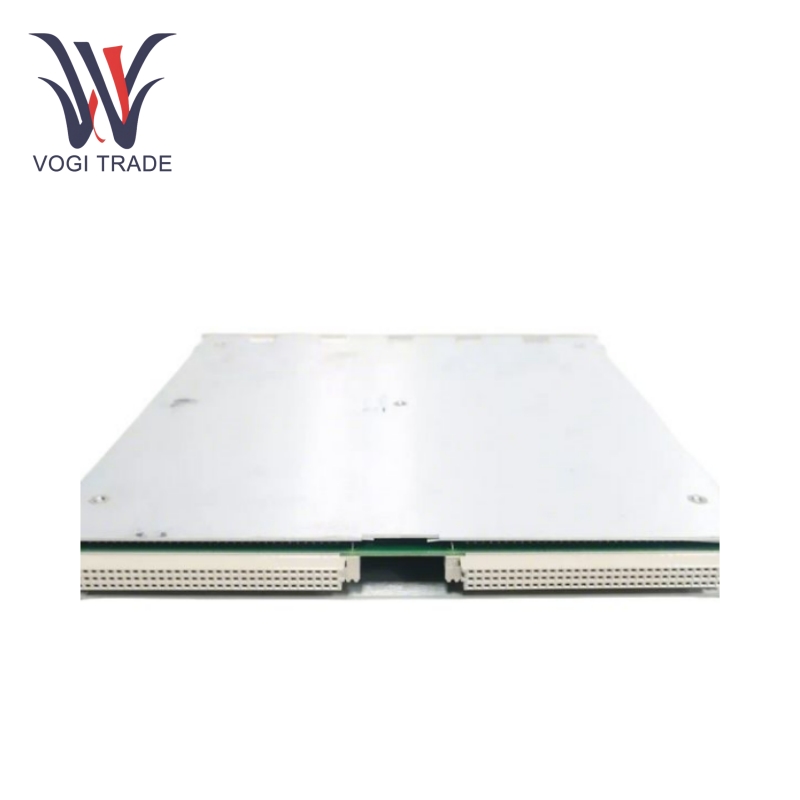

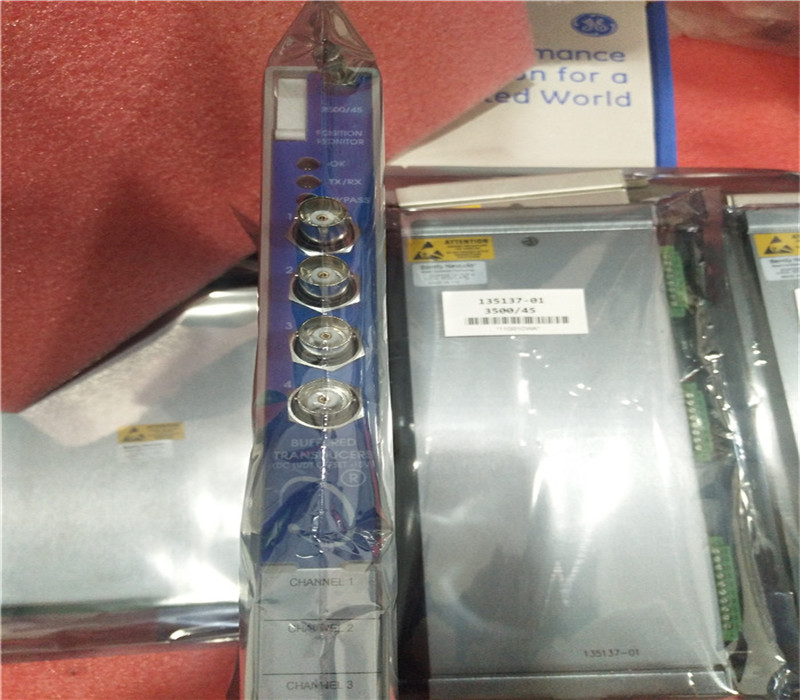

Bently Nevada 3500/45

Technical Parameters

Input Channels: Bently Nevada 3500/45 These channels are finely tuned to receive different sensor inputs and have strong sensitivity. Its input impedance is about 1 MOhm to minimize the impact on the measurable sensor and capture the signal faithfully.

Power Supply Active Power Input: Maximum 70W Power Supply Type 5V High Voltage Power Supply, Eagle 5V with 5V Custom Feedback Use below

Sampling Rate: Up to 20 kHz per channel This high sampling frequency enables the device to track fast events and small changes in such monitoring signals, providing a clear and immediate understanding of the mechanical operating conditions.

Accuracy: Its accuracy is ±0.5% of the reading, whichever is higher. This accuracy is critical to detecting slight deviations in monitoring parameters and being able to identify potential mechanical problems as early as possible.

Data frequency response: DC to 10 kHz Such a wide bandwidth enables it to monitor switching point drift at low frequencies and jitter at high frequencies, thereby fully understanding the dynamic behavior of the machinery.

Functional features

Signal conditioning: Bently Nevada 3500/45 uses advanced signal conditioning circuits. It is able to enhance, filter and digitize input signals for further processing. They use adjustable filters to eliminate external noise and interference, improve the signal-to-noise ratio and the reliability of measurement data.

Self-diagnosis: The module itself has a self-diagnosis function to check what is happening in the module. This includes checking the input channels, energy solutions and internal circuits. If any faults or abnormalities occur, it will immediately issue an alarm and display detailed diagnostic information.

Dynamic range and gain adaptability: The dynamic range and gain of the input channel can be flexibly adjusted. This enables the measurement device to accurately measure signals of different amplitudes from low to high without being restricted by operating conditions.

Data storage and communication capabilities: Bently Nevada 3500/45 can store a large amount of measurement data, which can be extracted and analyzed to identify trends and predict future problems. For communication, it supports multiple protocols - such as Ethernet and serial interfaces. This also means that it can be easily expanded with other SPX building blocks, such as other controllers, remote access and monitoring.

Application Scope

Power Generation: It is widely used to monitor the vibration and axial position of turbines, generators and pumps in power plants. Continuous monitoring of these parameters helps detect any imbalance, misalignment or bearing wear. Through early detection, regular maintenance of equipment prevents unexpected failures and ensures the continued operation of power generation equipment.

Petrochemical Industry: Bently Nevada 3500/45 is used to monitor the condition of compressors, motors and other rotating machinery in refineries and petrochemical plants. This enables suppliers to track vibration types and other important parameters to understand possible failures and optimize maintenance time points. This is particularly important in industries where machine failures and malfunctions can lead to serious economic consequences, safety issues and hazards.

Manufacturing: In the manufacturing sector, Bently Nevada 3500/45 is used to track the performance of machine tools, industrial robots and equipment on production lines. Analyzing vibration and position data helps manufacturers improve product quality and productivity while preventing maintenance-related downtime. For example, it can identify issues in CNC machining centers, such as tool chatter or spindle problems, allowing timely corrective actions to significantly reduce scrap rates.

Aerospace and Defense: In aerospace use cases, the Bently Nevada 3500/45 can monitor the health of aircraft engines and other critical components during ground testing and flight. The high accuracy and reliability it provides are critical to the safety and performance of aerospace systems. In defense applications, it is used to monitor the condition of military vehicles and equipment, improve combat readiness, and reduce the risk of field failures.
