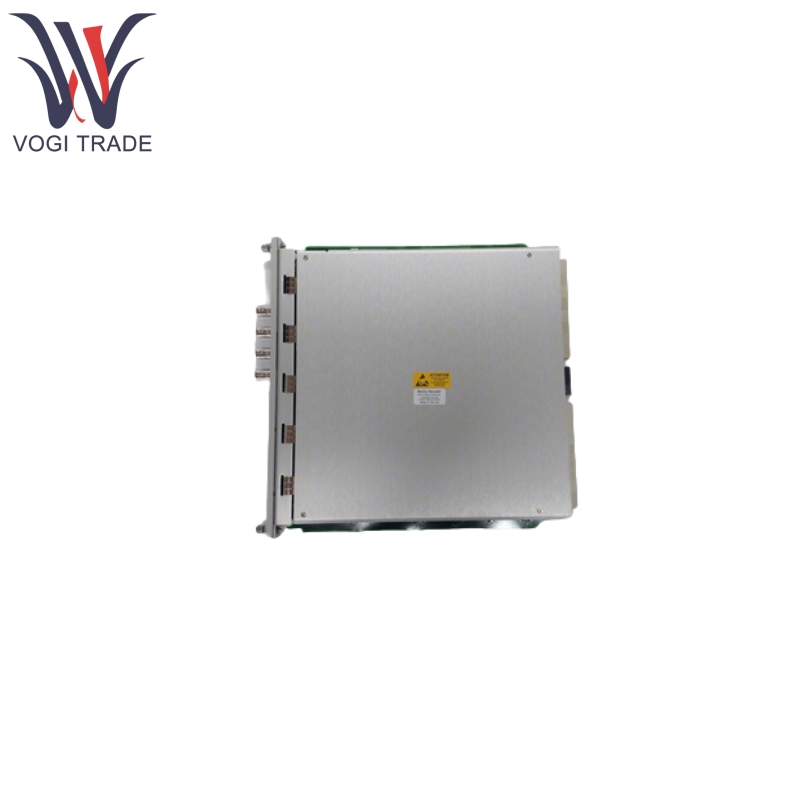

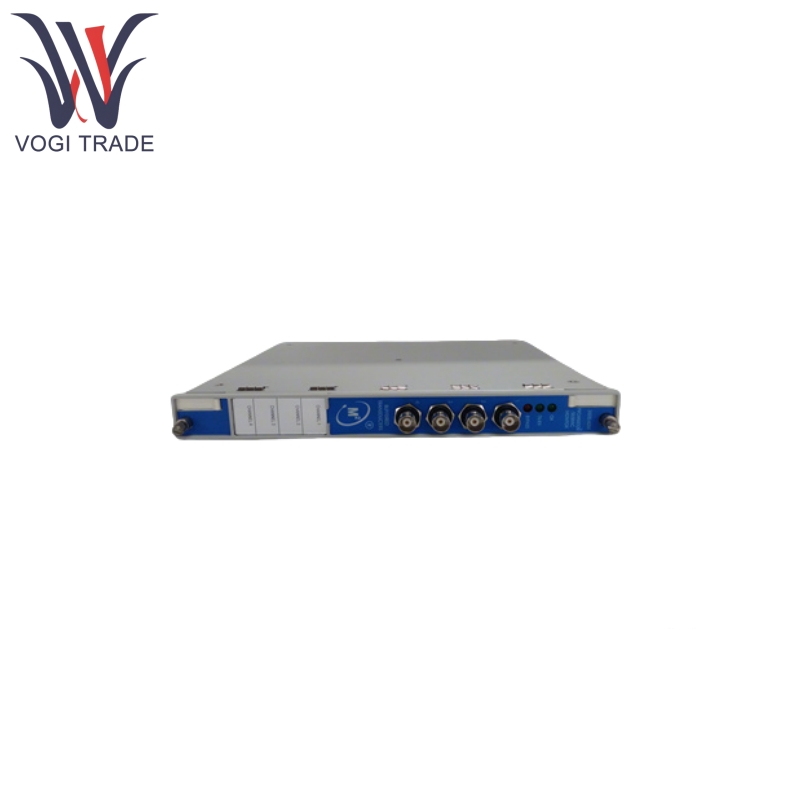

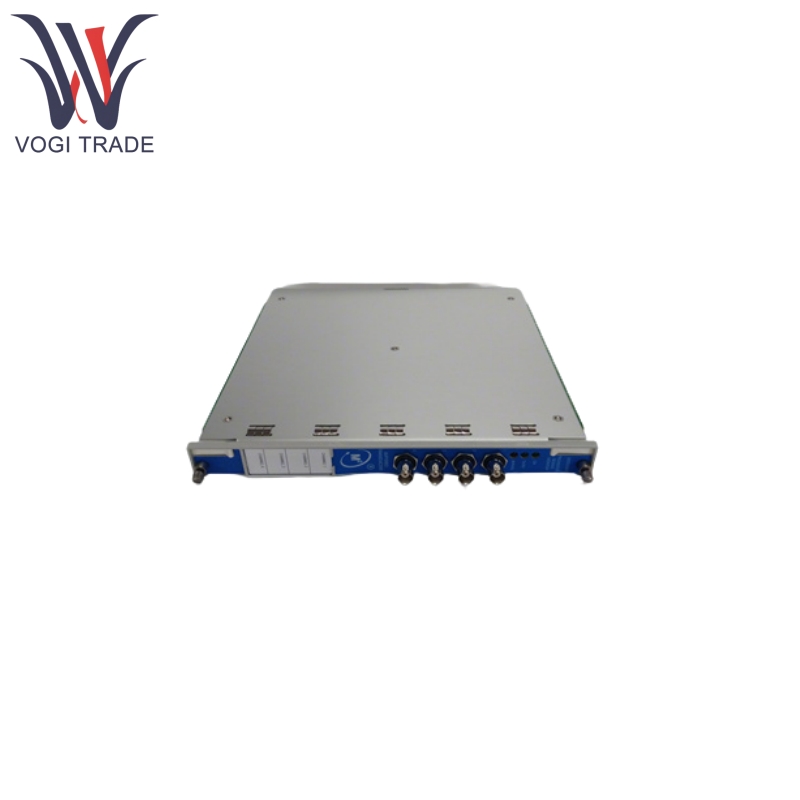

Brand: Bently Nevada Description: Hydro Monitor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 3500/46-03-00 Hydro Monitor receives input signals from proximity, seismic, dynamic pressure and air gap sensors, provides measurement of key parameters such as vibration, position, static and dynamic pressure through signal processing, and compares the processed signals with user-programmable alarm thresholds to achieve machinery protection and condition monitoring. condition monitoring.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/46-03-00 |
|
Ordering Number |
3500/46-03-00 |
|
Catalog |
3500 Rack |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9031809090 |
|
Dimension |
24*2*10cm |
|
Weight |
0.2kg |
Product Features
Bently Nevada 3500/46-03-00 “03” indicates that the I/O module type is “Multimode Prox/Velom I/O Module with Internal Terminations”, “00” indicates no hazardous area certification. Prox/Velom I/O Module with Internal Terminations“, ”00" indicates no hazardous area certification.
Bently Nevada 3500/46-03-00 can provide machine protection by continuously comparing monitored parameters to configured alarm setpoints to drive alarms and provide vital machine information to operators and maintenance personnel.
Bently Nevada 3500/46-03-00 provide early warning of pending machinery problems and assist in diagnosing them. Due to the nature of high amplitude, low frequency velocity events, the Hydro Velocity channel type cannot be used for automated machinery protection.
Product Functions
Configurable Functions
Bently Nevada 3500/46-03-00 can be configured with 12 core functions through the 3500 Rack Configuration Software,
including Hydro Radial Vibration, Hydro Air Gap, Hydro Velocity, Hydro Acceleration, Hydro Thrust, Multi-Mode Radial Vibration, Multi-Mode Air Gap, Multi-Mode Dynamic Pressure, Stator End Winding Monitoring, and Hydro Stator End Winding, Hydro Velocity, Hydro Acceleration, Hydro Thrust, Multi-mode Radial Vibration, Multi-mode Air Gap, Multi-mode Dynamic Pressure, Stator End Winding (SEW), etc.
Channel and Alert
Bently Nevada 3500/46-03-00 channels are programmed in pairs, each channel can be configured independently or identically;
Bently Nevada 3500/46-03-00 can set “alert” threshold for each active static value and “danger” threshold for any two active static values;
Bently Nevada 3500/46-03-00 supports 8 groups of alarm parameters (including alert, danger thresholds and delay time), which can be configured for specific machine modes; when switching machine modes, the parameter groups can be switched by the contacts of multi-mode I/O modules or by the software commands of the communication gateway.
Special Functions
Bently Nevada 3500/46-03-00 can provide early warning of mechanical failures and assist in diagnosis, but cannot be used for automated machine protection due to its high amplitude and low frequency characteristics; combined with shaft clearance movement and NX amplitude, it is used for detecting shear-pin failure.
