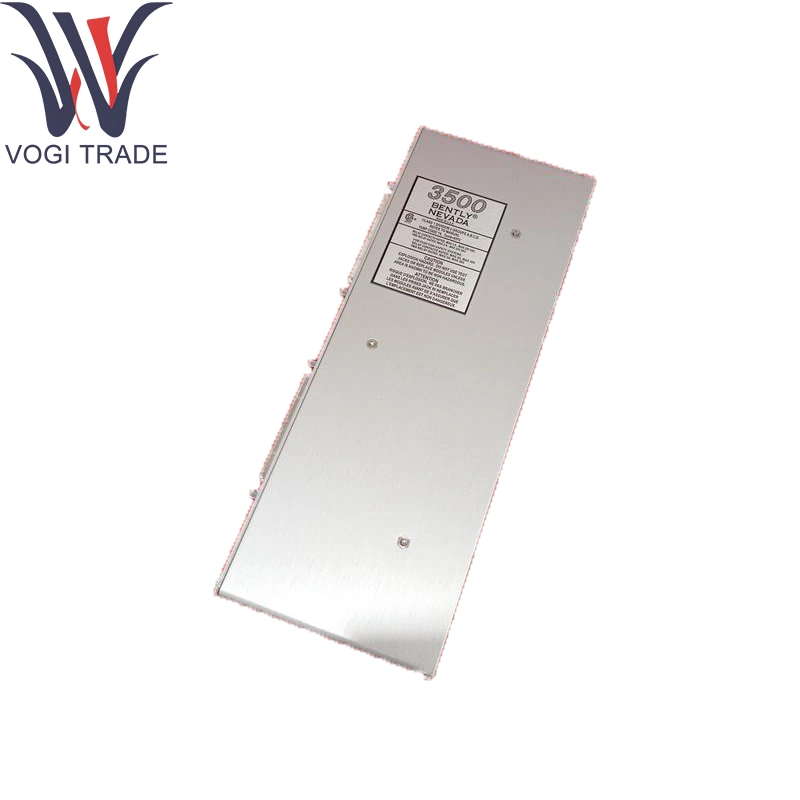

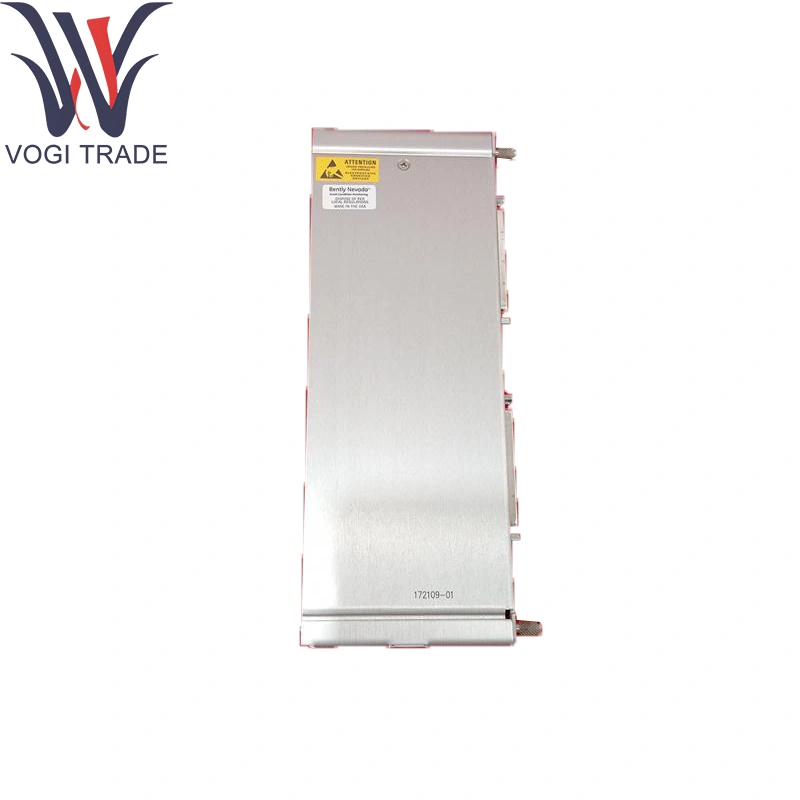

Brand: Bently Nevada Description: 3500/65-02-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 9 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 3500/65-02-00 Installed in Bently Nevada 3500 Series rack enclosures to detect loss or degradation of key vibration and position sensor signals.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/65-02-00 |
|
Ordering Number |
172109-01 |
|
Catalog |
3500 SYSTEM |
|
Description |
RTD/Isolated Tip TC I/O Module, External Terminations |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*10 (CM) |
|
Weight |
0.45 kg |
Ordering Information
|
Component/Software |
Required Version |
|
3500/22 Module Firmware |
Revision 1.50 |
|
3500/01 Software |
Version 3.85 |
|
3500/02 Software |
Not supported* |
|
3500/03 Software |
Not supported* |
|
3500/93 Module Firmware |
Revision 2.02 |
|
System 1 Software |
Revision 5.2 with Service Pack 2 or later |
Technical Parameters
Channels: 2 independent sensor-loss detection circuits in Bently Nevada 3500/65-02-00
Input Types Supported:
Eddy-current proximity probes (0–50 V p-p)
IEPE accelerometers (4 mA loop-powered)
Detection Threshold: Signal amplitude below 10 % of full-scale for >100 ms
Response Time: ≤ 150 ms from loss to alarm output for Bently Nevada 3500/65-02-00
Outputs:
2 × Form C relay contacts (sensor-loss alarms)
1 × Form C common-fault relay
Isolation: 1 kV channel-to-ground
Power Supply: 24 V DC (18–32 V DC), ≤ 3 W
Environmental Ratings:
Operating Temp: 0 °C to +70 °C (standard)
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Product function
Continuously monitors analog input levels through Bently Nevada 3500/65-02-00 from vibration/proximity sensors. If signal falls below threshold (indicating probe/cable failure), Bently Nevada 3500/65-02-00 rapidly asserts dedicated alarm relays. Common-fault relay aggregates channel faults for system-wide shutdown logic.
Core Supporting Modules
3500/00 Rack Chassis: Provides backplane power and data bus for Bently Nevada 3500/65-02-00 communications.
3500/01 System Interface Module: Aggregates module alarms and communicates status to host DCS/PLC.
3500/03 Relay Output Module: Distributes alarm/trip signals to external contactors.
Probes & Cables: 3300 XL eddy-current probes and accelerometers compatible with Bently Nevada 3500/65-02-00.
