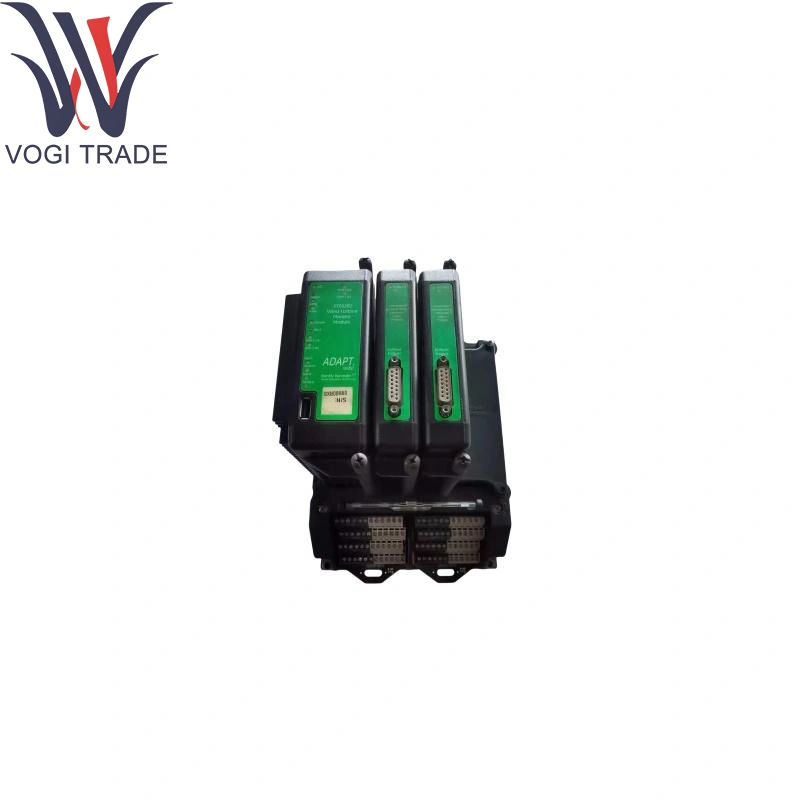

Brand: Bently Nevada Description: 3701/60 175794-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 3701/60 175794-01 Designed for continuous, on-line vibration monitoring of turbomachinery (turbines, compressors, generators).
|
Manufacture |
Bently Nevada |
|
Model Number |
3701/60 |
|
Ordering Number |
175794-01 |
|
Catalog |
3701 |
|
Description |
WIND TURBINE MONITOR |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*9.91 (CM) |
|
Weight |
0.44 kg |
Ordering Information
Catalog No.: 3701/60-00-00-00 (standard; no options)
Factory-Installed Option Codes:
“-01”: conformal coating for harsh environments
“-02”: extended temperature range (-40 °C to +85 °C)
Spare Parts: Replacement connector kit (175795-01); front-panel overlay kit (175796-01)
Technical Parameters
Channels: Two proximity‐transducer inputs (active eddy-current probes) of the Bently Nevada 3701/60 175794-01
Measurement Ranges:
Proximity: ± 50 V DC probe-amplitude (selectable span)
Velocity: 0-100 mm/s RMS (via optional external sensors) for the Bently Nevada 3701/60 175794-01
Resolution: 0.1 µm on proximity; 0.1 µm/s on velocity
Frequency Response: 0.5 Hz to 10 kHz (-3 dB)
Filtering:
1×, 2×, and broadband alarm bandpass filters (field-selectable)
Adjustable high-pass (0.5-100 Hz) and low-pass (1-10 kHz) settings
Alarm Setpoints: Two independent alarms per channel (0-100% full-scale), user-programmed via rack controller
Isolation: 1 kV galvanic isolation from chassis ground
Power Supply: 24 V DC nominal (18-32 V DC), 2 W max for the Bently Nevada 3701/60 175794-01
Operating Temp: 0 °C to +70 °C (standard); -40 °C to +85 °C (option)
Humidity: Up to 95 % RH, non-condensing
Product function
Proximity Sensing: Converts eddy-current probe signals into shaft-position and clearance data using the Bently Nevada 3701/60 175794-01.
Vibration Detection: Calculates overall vibration velocity and provides narrow-band amplitudes (1×, 2×) for balance and fault analysis via the Bently Nevada 3701/60 175794-01.
Alarm/Trip Outputs: Reports alarm conditions to the rack’s digital I/O or host controller for fault-response (alert, shutdown).
Diagnostics: Onboard self-test with probe-plug detection and sensor-fault flagging in Bently Nevada 3701/60 175794-01, communicated to the rack controller.
Core Supporting Modules
3701/00 Rack Chassis: Houses up to 16 modules including the Bently Nevada 3701/60 175794-01, provides 24 V DC power and backplane data bus.
3701/90 CPU Module: Interfaces modules to host systems; configures setpoints, collects data, communicates via Modbus/PROFIBUS.
3701/50 Relay Module: Provides form C relay outputs for alarm/trip signals.
3701/70 Analog Output Module: Converts vibration and proximity measurements to 4-20 mA loops for external controllers.
