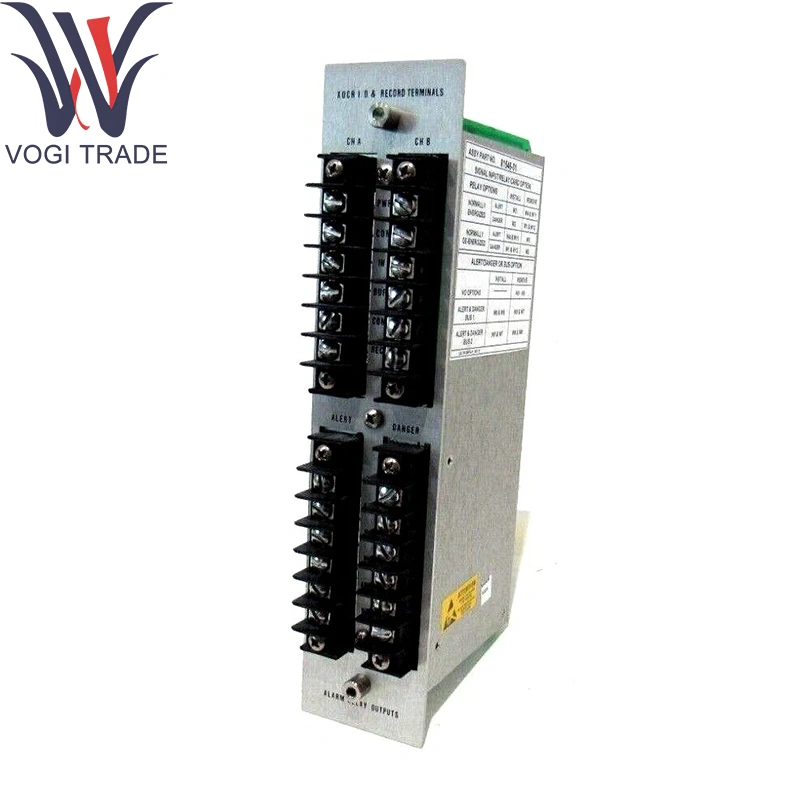

Brand: Bently Nevada Description: 82926-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 82926-01 Provides convenient front-panel screw-terminal access to analog recorder outputs and discrete alarm/trip contacts generated by rack modules.
|
Manufacture |
Bently Nevada |
|
Model Number |
82926-01 |
|
Ordering Number |
82926-01 |
|
Catalog |
3300 |
|
Description |
RECORD TERMINAL |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
127 mm x 76 mm x 38 mm |
|
Weight |
0.5 kg |
Ordering Information
Part Number: 82926-01
Description: Record Terminal module for 3300 XL / 3500 Series racks
Catalog: 3300 Series I/O Accessories
Technical Parameters
Terminal Count:
Up to 8 isolated analog recorder outputs (0–10 V or 4–20 mA) via Bently Nevada 82926-01
Up to 8 discrete Form A dry contacts for alarm/trip signals
Terminal Type: Removable screw-clamp blocks, 3.5 mm pitch
Isolation: Each terminal isolated from chassis/backplane (> 500 V) in Bently Nevada 82926-01
Mounting: Front-panel slide-in card with captive thumbscrews
Operating Environment: –20 °C to +70 °C; ≤ 95 % RH non-condensing
Product function
Bently Nevada 82926-01 distributes internal rack analog/discrete signals to field-friendly terminal blocks. Maintains channel isolation to prevent ground loops and noise coupling. Front-access design enables wiring/diagnostics without disrupting modules.
Application Areas
Chart Recorder Integration: Supplies analog loops to strip-chart recorders with Bently Nevada 82926-01
Portable Data Logging: Quick connections for handheld DAQ using Bently Nevada 82926-01
Discrete Alarm Wiring: Front-panel distribution of machine-fault contacts
OEM Skid & Panel Builds: Centralized interfaces in packages featuring Bently Nevada 82926-01Maintenance Test Racks: Easy-access terminal board via Bently Nevada 82926-01
