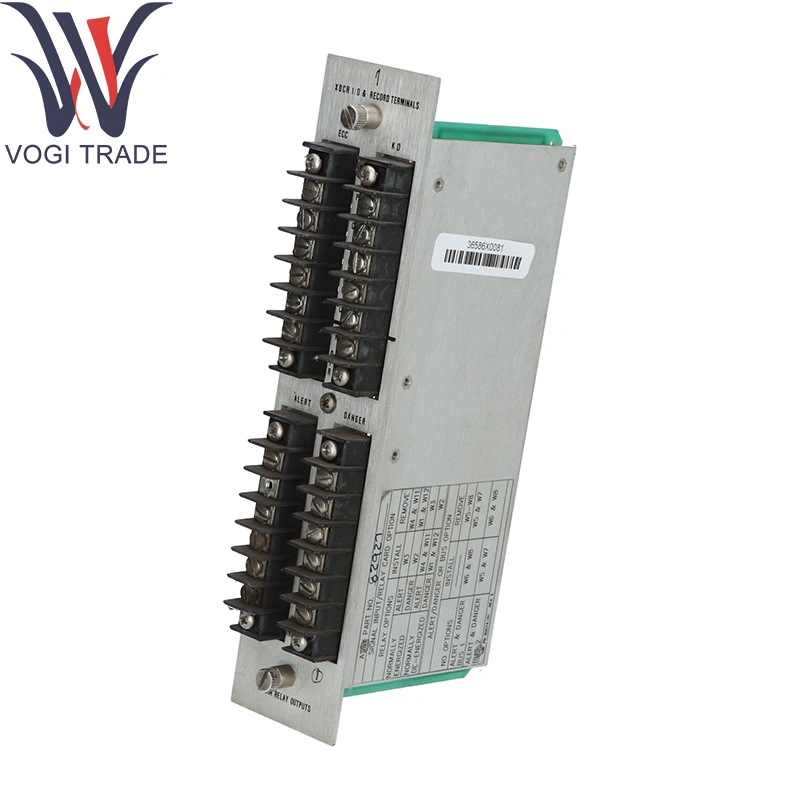

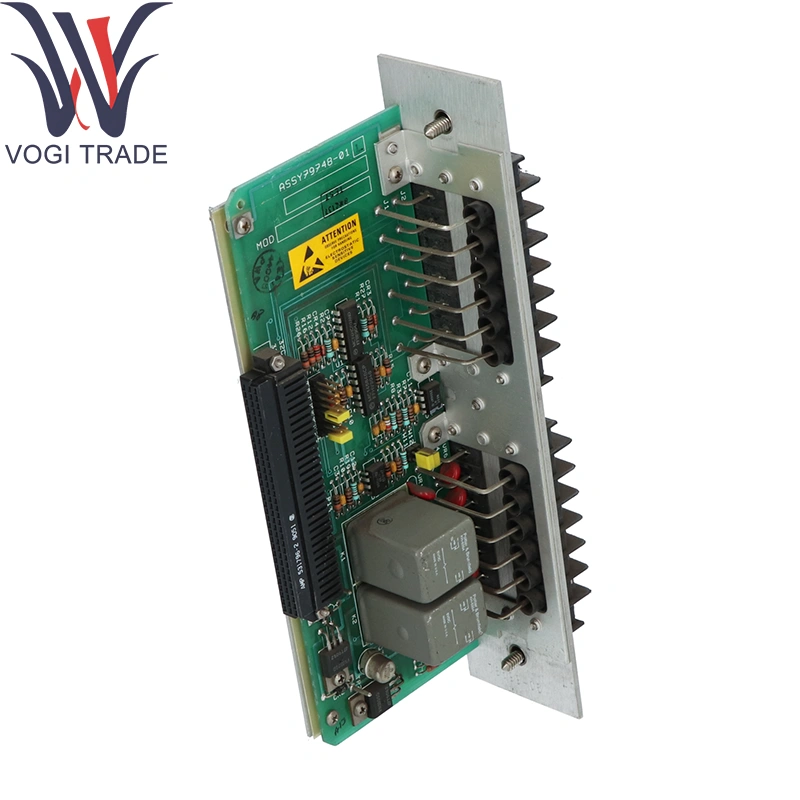

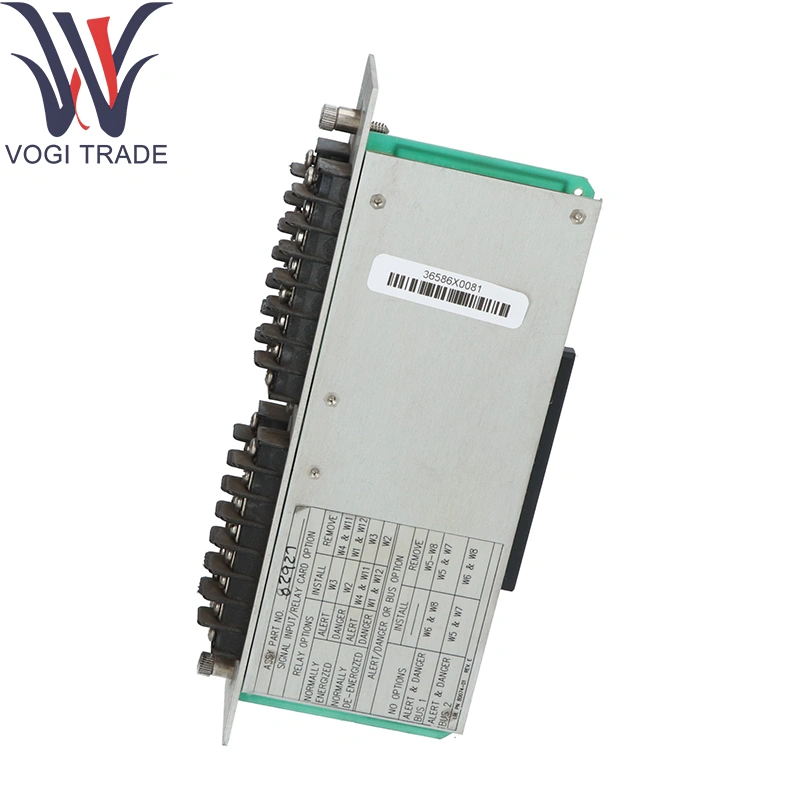

Brand: Bently Nevada Description: 82927-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 82927-01 Provides a versatile interface card for hybrid installations where combined functions—transducer (XDCR) excitation and sense, analog recorder outputs, discrete terminal pass-through, and PLC-style relay outputs—are required in a single rack slot.
|
Manufacture |
Bently Nevada |
|
Model Number |
82927-01 |
|
Ordering Number |
82927-01 |
|
Catalog |
3300 |
|
Description |
XDCR I/O Record Terminal PLC Relay Card |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
9*14*4 (CM) |
|
Weight |
0.5 kg |
Ordering Information
Part Number: 82927-01
Description: Multifuntion I/O card combining transducer excitation & sensing, discrete terminal connections, PLC-style relay outputs, and analog recording interfaces
Series: Fits into Bently Nevada 3500/3700 rack via 50-pin backplane slot
Technical Parameters
Transducer I/O:
4 channels capable of 4–20 mA loop power or ±10 V excitation for Bently Nevada 82927-01
Internal 250 Ω precision termination resistors for 4–20 mA loops
Recorder Outputs:
4 isolated 0–10 V analog outputs (≥ 10 mA drive)
Terminal Pass-Through:
8 screw-terminal pairs for discrete I/O wiring
PLC-Style Relay Outputs:
4 × Form C (SPDT) relays in Bently Nevada 82927-01
Contact ratings: 5 A @ 250 VAC / 30 V DC resistive
Isolation & Protection:
Channel-to-chassis: 500 V (analog), 1 kV (digital/relay)
Surge protection: IEC 61000-4-5 level 3 on analog loops
Power Consumption: ≤ 6 W from 24 V DC backplane
Environmental: 0 °C–70 °C operating; –40 °C–85 °C storage; ≤95 % RH non-condensing
Product function
Bently Nevada 82927-01 provides XDCR excitation/sensing for current-loop or voltage-mode transducers. Delivers analog recorder outputs, discrete wiring terminals, and PLC-style relays via Bently Nevada 82927-01 for alarms/interlocks. Integrated surge protection ensures reliability in harsh environments.
Application Areas
Hybrid Control Panels: Combines monitoring loops/relay outputs with Bently Nevada 82927-01 in power/process industries
Legacy Retrofits: Replaces multiple modules using Bently Nevada 82927-01 to reduce footprint
OEM Machinery Skids: Embedded multifunction I/O in packages featuring Bently Nevada 82927-01
Portable Test Benches: Modular racks requiring transducer excitation and Bently Nevada 82927-01
Safety & Interlock Systems: Drives interlocks via rack-based relays in Bently Nevada 82927-01
