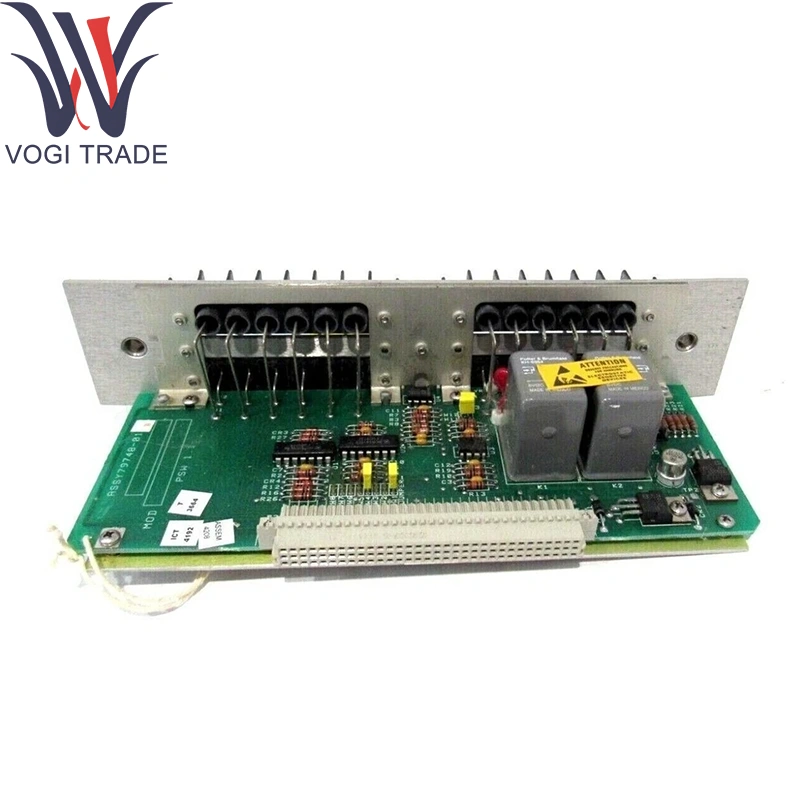

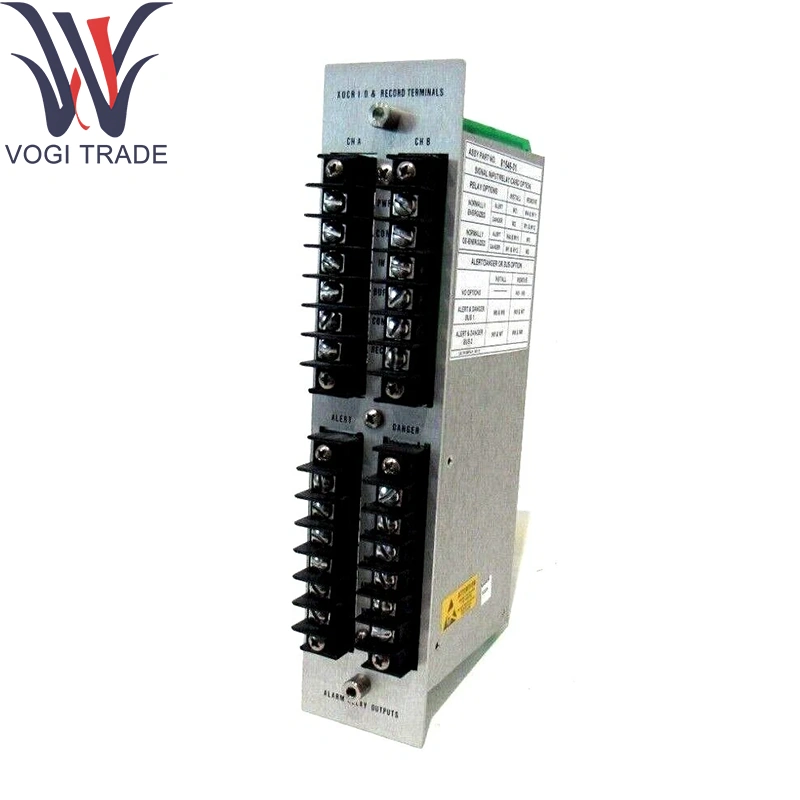

Bently Nevada 84145-01

Ordering Information

Part Number: 89416-01

Description: XDCR (transducer) I/O and front-panel record-terminal interface for 3500/3700 Series racks

Compatibility: Fits in a ¼-rack slot of Bently Nevada 3500/3700 chassis

Replaces: 78462-02 (legacy terminal version)

Technical Parameters

Power: 24 V DC via rack backplane, max 0.5 A

Signal Inputs:

Supports XDCR outputs (jumper-selectable ±10 V or 4–20 mA) via Bently Nevada 84145-01

High-speed capture up to 200 kHz per channel

Recorder Outputs: Up to eight isolated analog loops (0–10 V or 4–20 mA) on front-panel terminals

Discrete Contacts: Up to eight Form A (SPST) dry contacts for event signaling provided through Bently Nevada 84145-01

Isolation: 500 V channel-to-chassis; ≥ 1 kV between analog and discrete circuits

Environmental:

Operating: –40 °C to +70 °C

Storage: –55 °C to +85 °C

Front-panel IP67 with gasket

Product function

Bently Nevada 84145-01 serves as an aggregation hub, receiving conditioned transducer outputs and buffering them for distribution. Routes analog signals to chart recorders or DCS analog inputs via screw-terminal blocks. Provides isolated dry contacts for alarm, trip, or sequence-of-events logging while maintaining signal fidelity at 200 kHz.

Application Areas

Startup/Shutdown Analysis: Capturing transient vibration data with Bently Nevada 84145-01 on test benches

Chart Recorder Integration: Long-term trend logging of machine-health signals

OEM Test Rigs: Centralized I/O incorporating Bently Nevada 84145-01 in portable panels

Transient-Event Diagnostics: Post-event waveform download for rub investigations

Control-Room Distribution: Direct delivery of analog/trip contacts from Bently Nevada 84145-01 to SCADA
