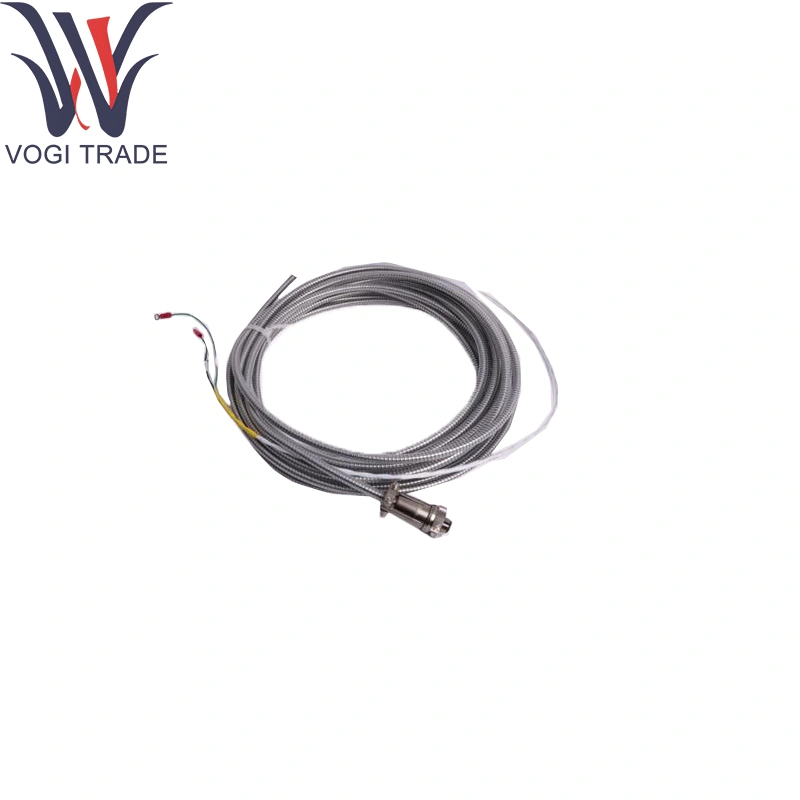

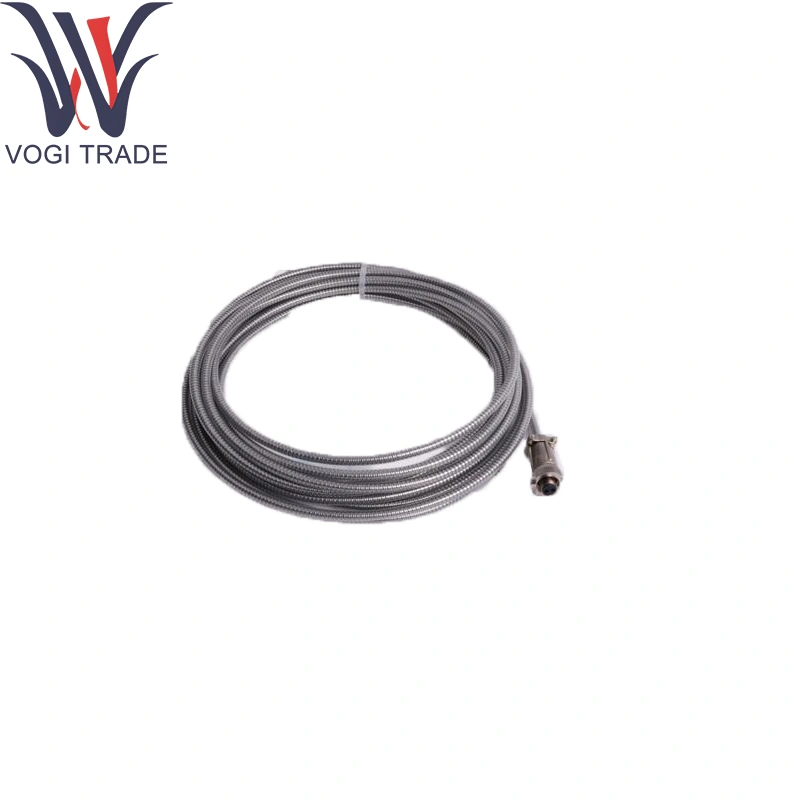

Brand: Bently Nevada Description: 84661-33 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 84661-33 Provides a dependable, low-noise link between field-mounted proximity probes or accelerometers and their corresponding Proximitor®/monitor modules when probes are located at moderate distances (up to 3.3 m) from the I/O rack or junction box
|
Manufacture |
Bently Nevada |
|
Model Number |
84661-33 |
|
Ordering Number |
84661-33 |
|
Catalog |
Velomitor System |
|
Description |
Standard Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*16 (CM) |
|
Weight |
0.15 kg |
Ordering Information
Part Number: 84661-33
Description: Standard extension cable for Bently Nevada 3300/3500/3700 Series I/O modules
Length Code (“33”): 3.3 m ± 0.05 m
Connector A: 10-pin mini-DIN (mating sensor end)
Connector B: 10-pin mini-DIN (mating monitor module end)
Jacket Material: PVC (standard)
Shielding: Braided tinned-copper shield ≥ 95 % coverage with drain wire
Technical Parameters
Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 84661-33
Capacitance: ≤ 100 pF/m between conductors
Conductor: 26 AWG, 7 × 36 tinned-copper strands per core in Bently Nevada 84661-33
Voltage Rating: 300 VAC max insulation
Temperature Rating: –20 °C to +80 °C (PVC jacket)
Environmental: RoHS-compliant; UL-recognized cable
Product function
Delivers high-fidelity AC signals via Bently Nevada 84661-33 from proximity probes or IEPE accelerometers to conditioning modules with minimal attenuation. The impedance-matched design maintains measurement accuracy for shaft-position, vibration, and velocity monitoring.
Application Areas
Turbine & Compressor Monitoring: Bearing clearance/vibration transmission using Bently Nevada 84661-33 in power plants
Pump & Motor Protection: Shaft-position feedback for maintenance
Portable Test Equipment: Quick-disconnect harnesses with Bently Nevada 84661-33 for field diagnostics
OEM Skid Packages: Factory-installed interconnects in assemblies featuring Bently Nevada 84661-33
Control Panel Interiors: Reliable cabling inside enclosures
