Bently Nevada 89416-01

Ordering Information

Part Number: 89416-01

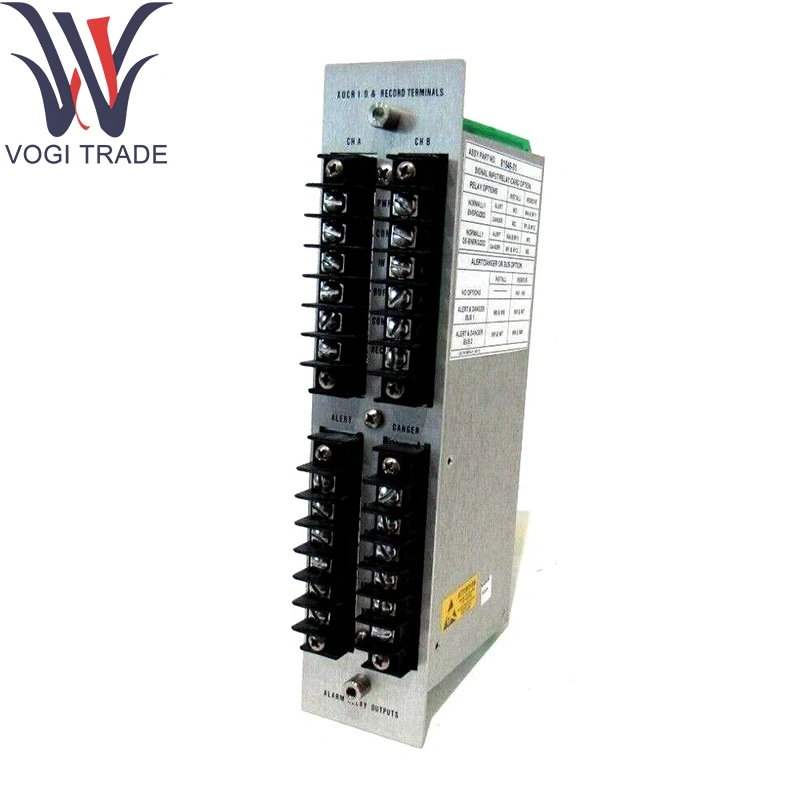

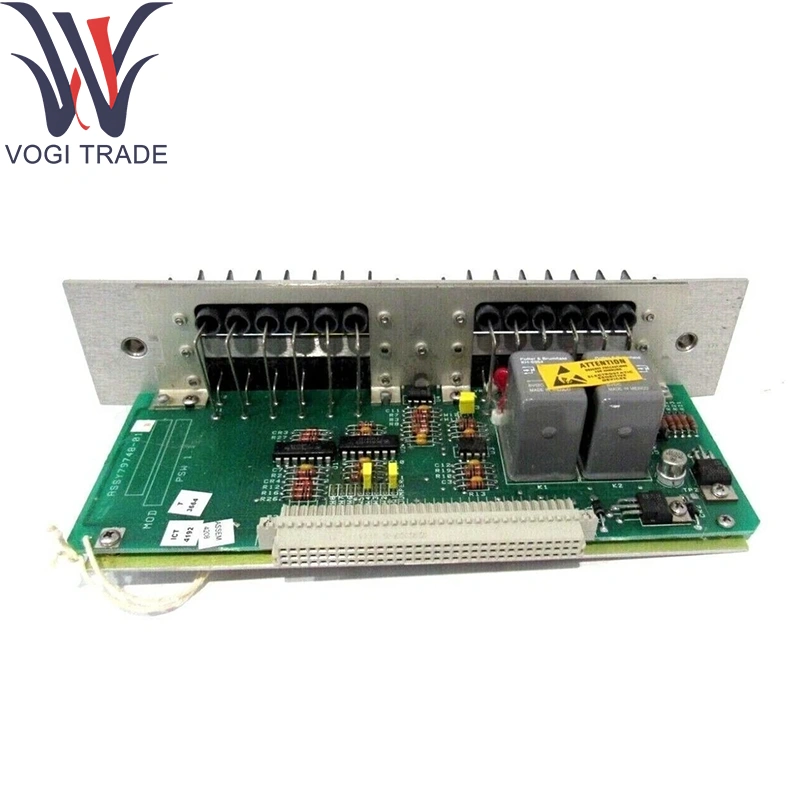

Description: XDCR I/O and Record-Terminal interface for 3500/3700 racks

Series Compatibility: Bently Nevada 3500/3700 Series chassis (¼ rack slot)

Replacement For: 78462-02 (earlier XDCR terminal version)

Technical Parameters

Power: 24 V DC via rack backplane, max 0.5 A

Signal Inputs:

Supports XDCR outputs (jumper-selectable ±10 V or 4–20 mA) for Bently Nevada 89416-01

High-speed capture up to 200 kHz per channel

Recorder Outputs: Up to eight isolated analog loops (0–10 V or 4–20 mA) on front-panel terminals

Discrete Contacts: Up to eight Form A (SPST) dry contacts in Bently Nevada 89416-01

Isolation: 500 V channel-to-chassis; ≥ 1 kV between analog/discrete circuits

Environmental:

Operating: –40 °C to +70 °C

Storage: –55 °C to +85 °C

Front-panel IP67 with gasket

Product function

Bently Nevada 89416-01 aggregates transducer signals with high-speed buffering. Routes analog outputs to recorders/DCS via terminals and provides isolated dry contacts via Bently Nevada 89416-01 for event logging. Maintains signal fidelity at 200 kHz for transient capture.

Application Areas

Startup/Shutdown Analysis: Capturing transient data using Bently Nevada 89416-01

Chart Recorder Integration: Long-term trend logging of machine signals

OEM Test Rigs: Centralized I/O in panels featuring Bently Nevada 89416-01

Transient-Event Diagnostics: Post-event waveform download

Control-Room Distribution: Direct delivery of analog/trip signals
