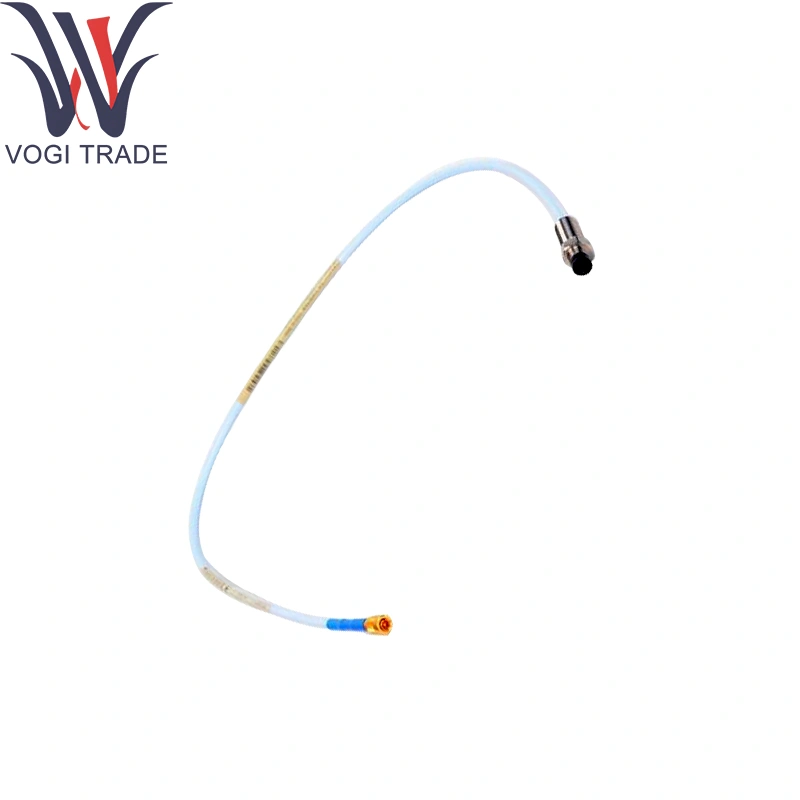

Bently Nevada 9200-06-02-10-00

Ordering Information

330105-02-12-CC-DD-EE3/8-24 UNF threads(2)

330106-05-30-CC-DD-EE M10 x 1 threads(2)

Option Descriptions

C: Total Length Option

05   0.5 meter (1.6 feet)

10   1.0 meter (3.3 feet)

15   1.5 meter (4.9 feet)

20   2.0 meters (6.6 feet)

50   5.0 meters (16.4 feet)

90   9.0 meters (29.5 feet)

D: Connector and Cable-Type Option

02   Miniature ClickLoc coaxial connector

12   Miniature ClickLoc coaxial connector , FluidLoc cable

E: Agency Approval Option

00   Not required

05   CSA, ATEX, IECEx  Approvals

Technical Parameters

Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 9200-06-02-10-00

Sensitivity: 100 mV/mil (3.94 mV/µm) ± 5 % at –23 V DC excitation

Output Span: –2 V to –6 V over linear range

Linearity: ± 1 % of full-scale

Frequency Response: DC to 10 kHz (–3 dB)

Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (PVC cable)

Environmental Protection: IP65 when mated; stainless-steel body, PPS tip in Bently Nevada 9200-06-02-10-00

Pressure Rating: Use with bulkhead or thermowell for pressurized service

Product function

Bently Nevada 9200-06-02-10-00 transduces variations in the air-gap between probe tip and rotating shaft into an AC voltage proportional to displacement. The shielded cable delivers a low-noise signal to Proximitor® modules for linearization, digitization, and vibration-protection integration.

Application Areas

Steam & Gas Turbines: Bearing clearance and rub detection using Bently Nevada 9200-06-02-10-00 in confined housings

Centrifugal & Reciprocating Compressors: Shaft position feedback for surge control

Pumps & Motors: Imbalance and misalignment monitoring in compact enclosures

Test & Research Facilities: Minimal-intrusion probes for lab-scale rigs and benchmark testing

OEM Machinery Skids: Embedded short-range probes with Bently Nevada 9200-06-02-10-00 for real-time clearance monitoring
