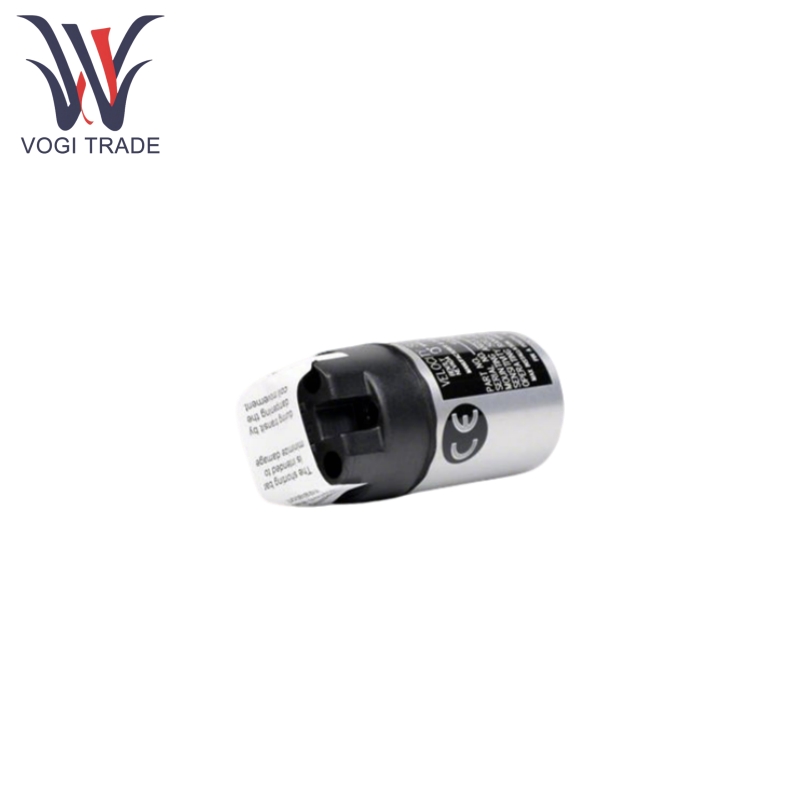

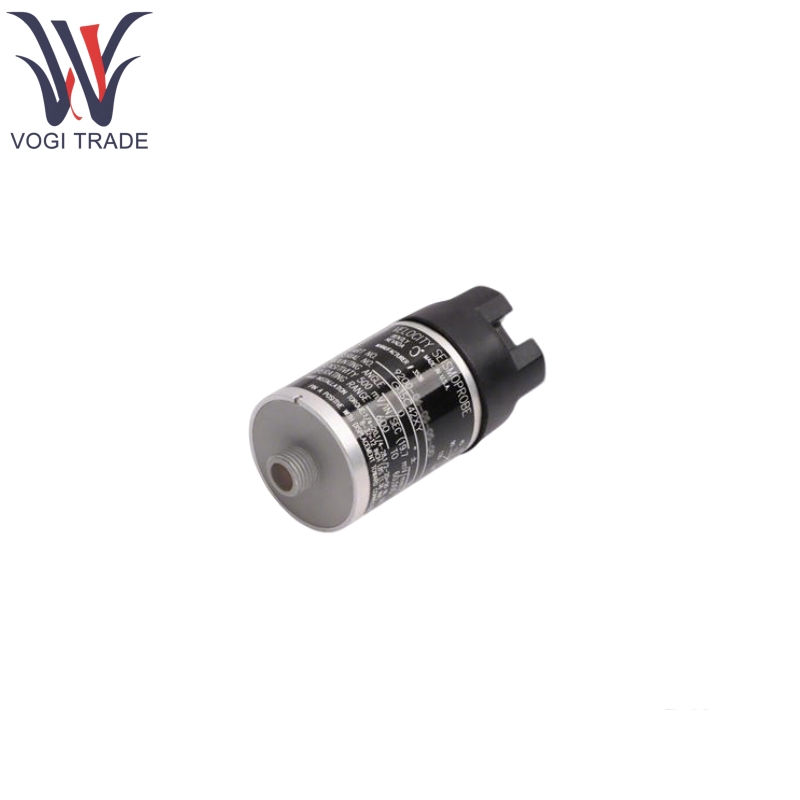

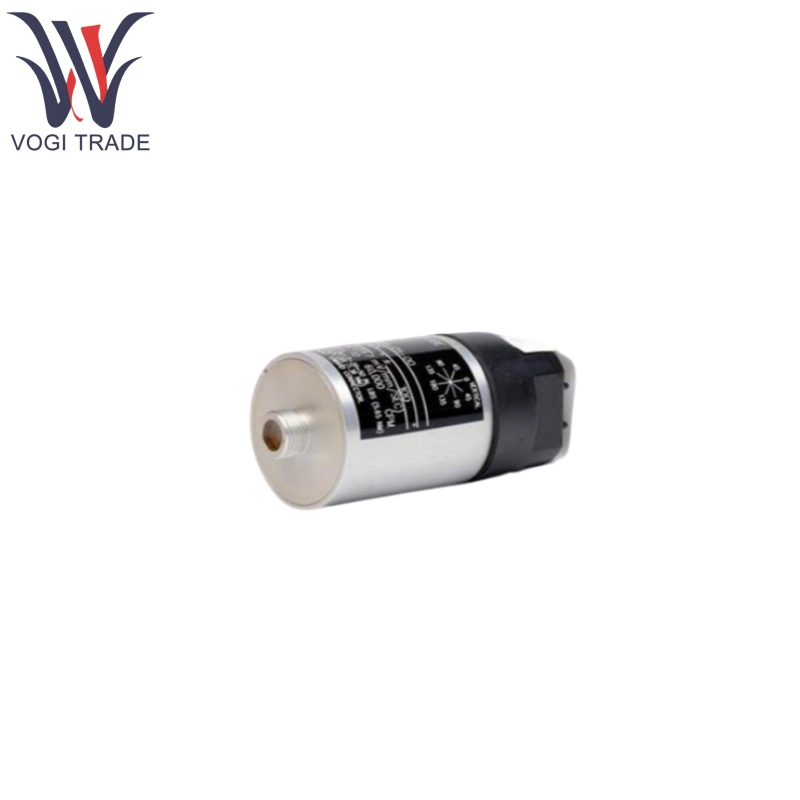

Bently Nevada 9200-06-05-10-00

Product Features

Bently Nevada 9200-06-05-10-00 has a voltage output that is in direct proportion to the vibration velocity of the transducer. The Seismoprobe velocity transducers are in a 2-wire configuration moving-coil system.

Beam-type velocity transducers, solid-state accelerometers with built-in integration electronics, Bently Nevada 9200-06-05-10-00 are less resilient to shocks or transient excitation than are moving-coil transducers.

Bently Nevada 9200-06-05-10-00 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.

Product Functions

Bently Nevada 9200-06-05-10-00 utilizes the moving coil principle, where the output voltage is directly proportional to the vibration velocity, and is less sensitive to shocks or pulsed excitation than solid-state sensors (accelerometers with built-in integration circuits), making it suitable for specific vibration scenarios.

The two-wire design eliminates the need for an additional power supply and facilitates portable measurements (e.g., periodic inspections with hand-held instruments).

Bently Nevada 9200-06-05-10-00 can withstand 95% non-condensing humidity in its standard configuration, and with an optional integral cable, it can operate in 100% non-submerged environments for excellent corrosion resistance.

Bently Nevada 9200-06-05-10-00 supports a mounting angle of 0±100°, a round base with M10×1 studs, top-mounted terminal blocks for easy wiring, and a wide range of mechanical configurations (e.g., bearing housings, enclosures).

Bently Nevada 9200-06-05-10-00 covers vibration frequencies from 10 Hz to 1000 Hz (600 to 60,000 cpm) and captures vibration signals of common mechanical faults such as unbalance and misalignment.

Production Parameter

Please see below the more detailed parameters of Bently Nevada 9200-06-05-10-00

Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration with a 10 kΩ load

Calibration Load: 10 kΩ (Output taken across pins "A" and "B")

Frequency Response: 10 Hz to 1000 Hz (600 to 60,000 cpm); +0, -3 dB typical

Dynamic Operating Range: Maximum peak-to-peak displacement of 2.54 mm (0.100 inch)

Velocity Range: 25 mm/s (1 in/s) (at +22°C, 100 Hz, with a 10 kΩ load)

Coil Resistance: 1.25 kΩ ±5%

Locked Coil Inductance: 125 mH typical

Amplitude Linearity: ±5% from 0.01 to 5.0 in/s at 100 Hz

Transverse Sensitivity: Maximum ±10% of the sensitive axis sensitivity at 100 Hz and 1.0 in/s

Polarity of Output Signal: Pin A goes positive with respect to Pin B when the transducer case velocity is towards the connector

Maximum Lead Wire Length: 305 meters (1,000 feet) to 3300 or 3500 Monitor

Case and Adapter Material: Anodized aluminum A204

Gasket Material: Neoprene

Connector Material (Terminal Block): Polyphenylene Sulfide (PPS) with nickel-plated copper contacts

Mounting Torque (M10×1 Stud): 5.6 N•m (50 in•lb)
